51 24 300 Removing and installing or replacing left or right gas strut for trunk lid

Open trunk lid.

Lift out retaining disc (1) and spring (2).

Lift out gas strut.

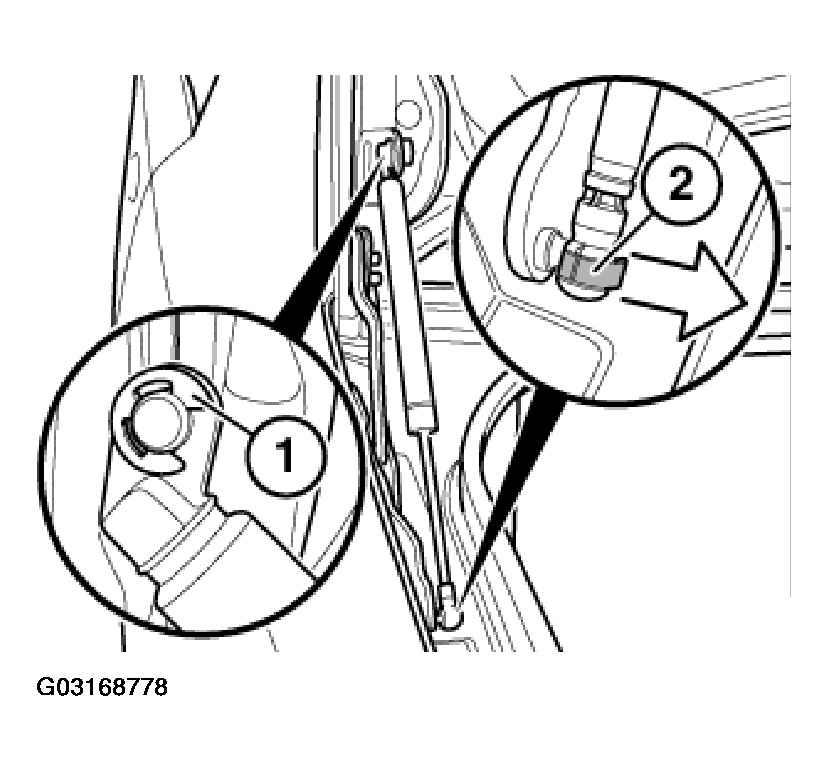

Fig 1: Lifting Out Retaining Disc And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
