51 24 145 Removing and installing/replacing button for trunk lid actuation

Pull out connector attachment (1) for line in cable bracket (2).

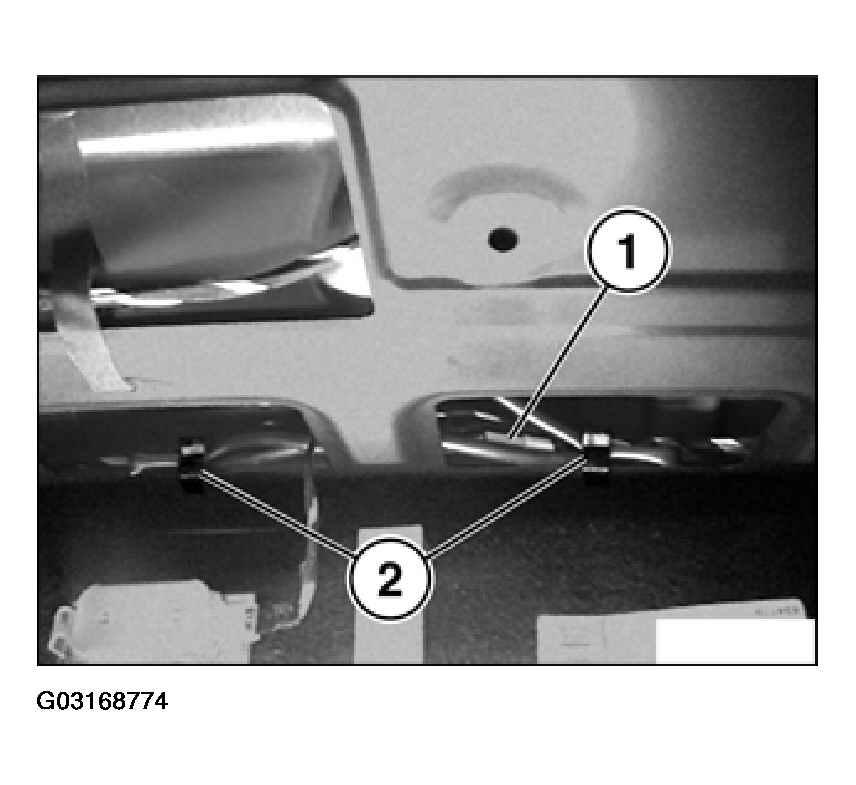

Fig 1: Pulling Out Connector Attachment For Line In Cable Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out top button (1) and pull upwards (2) to remove.

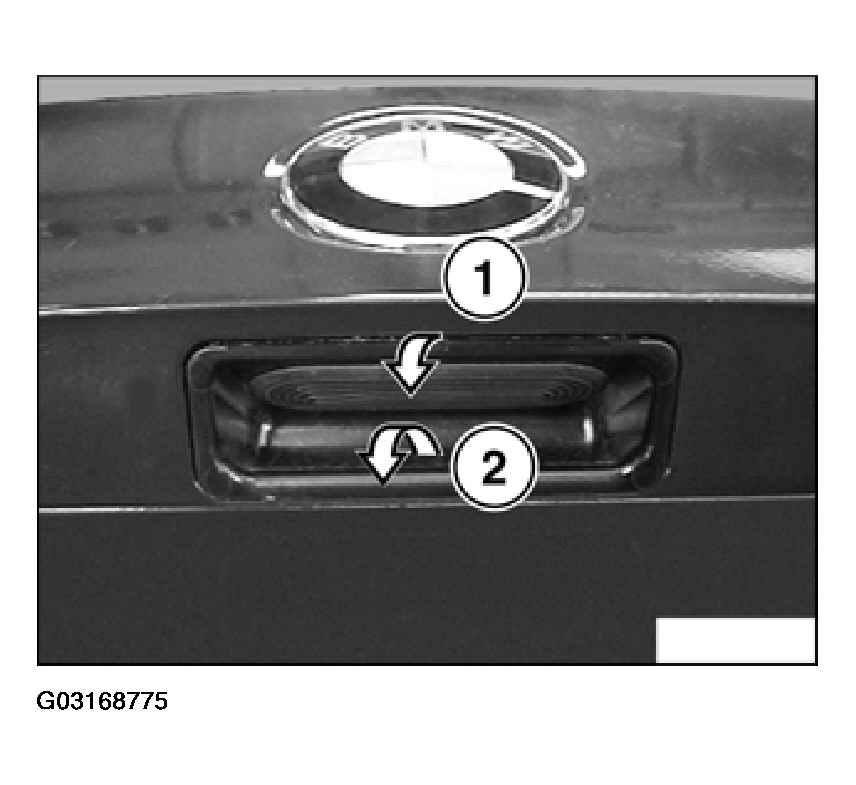

Fig 2: Lifting Out Top Button

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert lines through right bore.

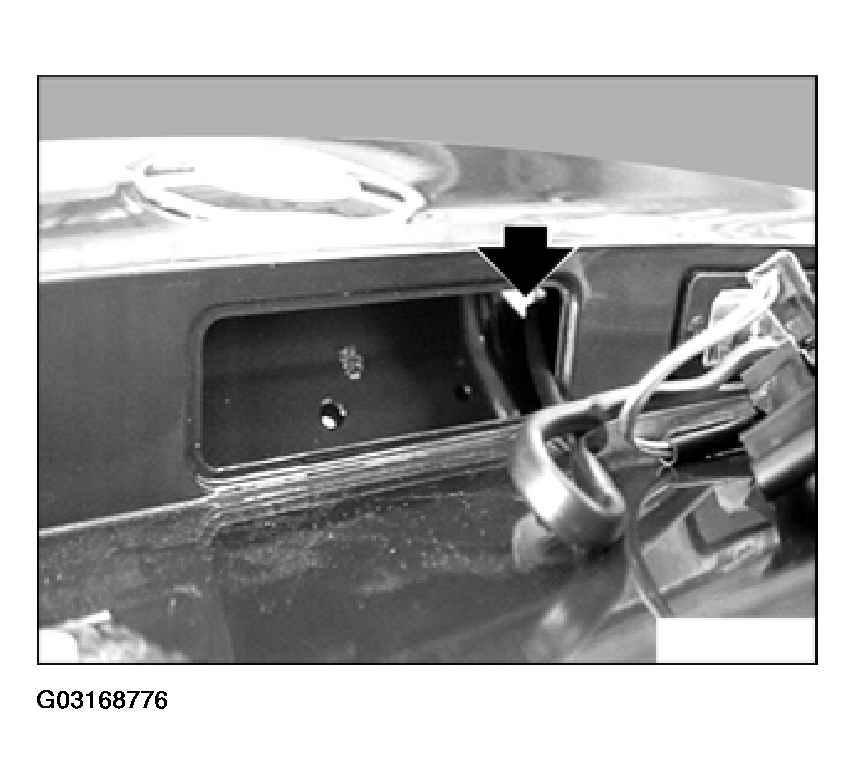

Fig 3: Locating Right Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off clip (1) and remove micro-switch (2). Pull off seal (3).

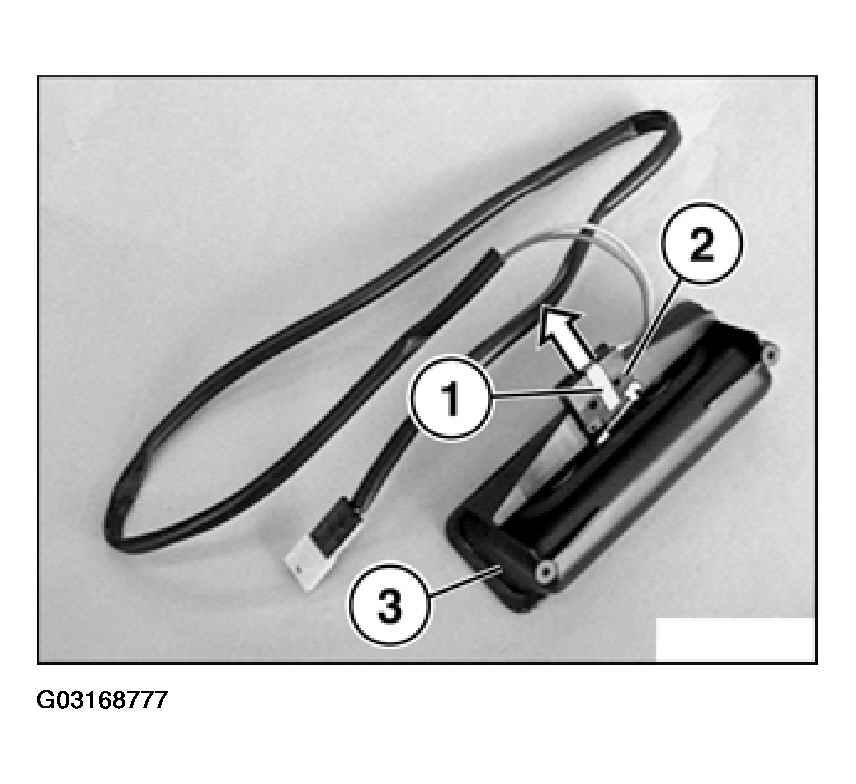

Fig 4: Removing Micro-Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.
