51 24 130 Removing and installing/replacing locking bracket for trunk lid lock

Remove finisher strip from top tail panel, refer to 51 46 050 REMOVING AND INSTALLING/REPLACING FINISHER FOR TOP OF REAR APRON.

Unfasten screws and remove locking bracket (lower section of trunk lid lock).

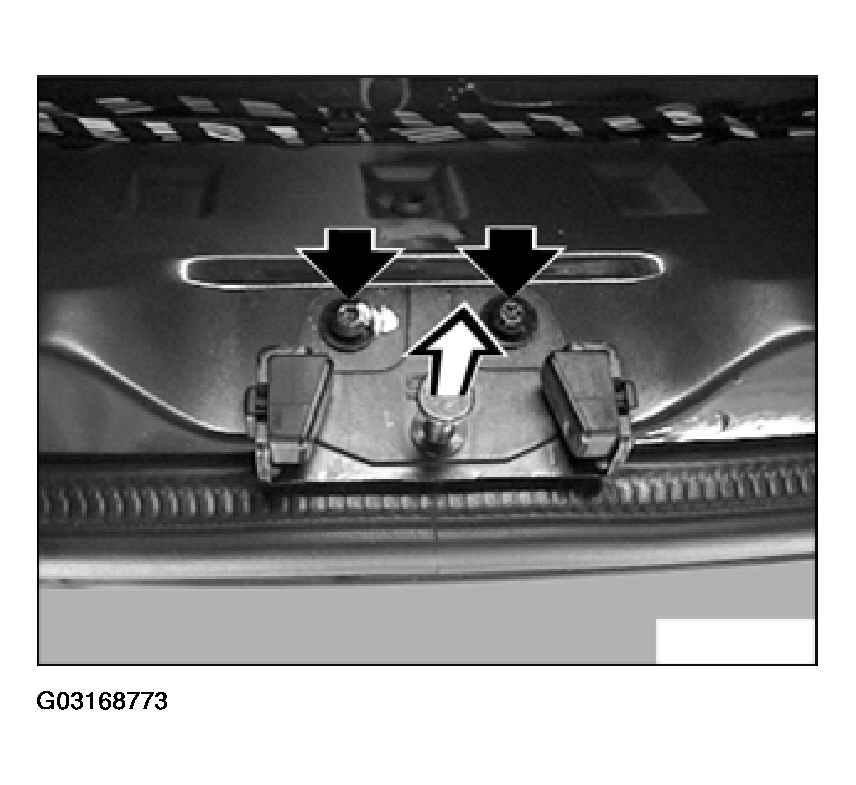

Fig 1: Removing Locking Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust lower section of trunk lid.
