51 24 100 Removing and installing/replacing trunk lid lock (upper section of trunk lid lock)
Remove lower trim power from trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID .

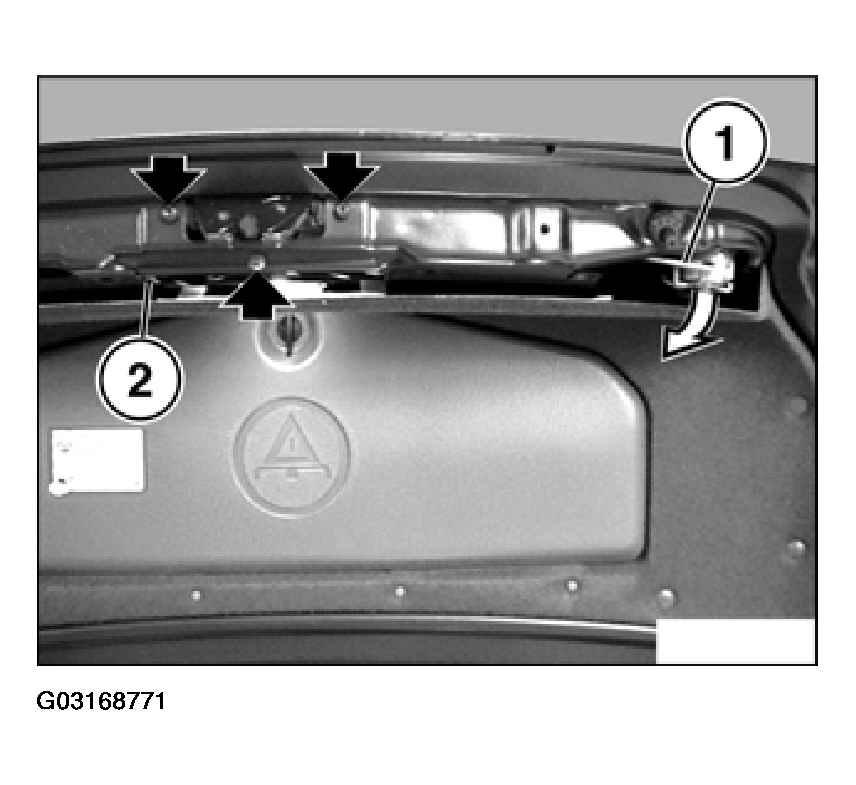

Lift out actuating rod (1).
Disconnect plug connections (2).
Unfasten screws and remove upper section of trunk lid lock.
Installation:
Perform function check with trunk lid open.
Adjust upper section of trunk lid lock.
Only replace:

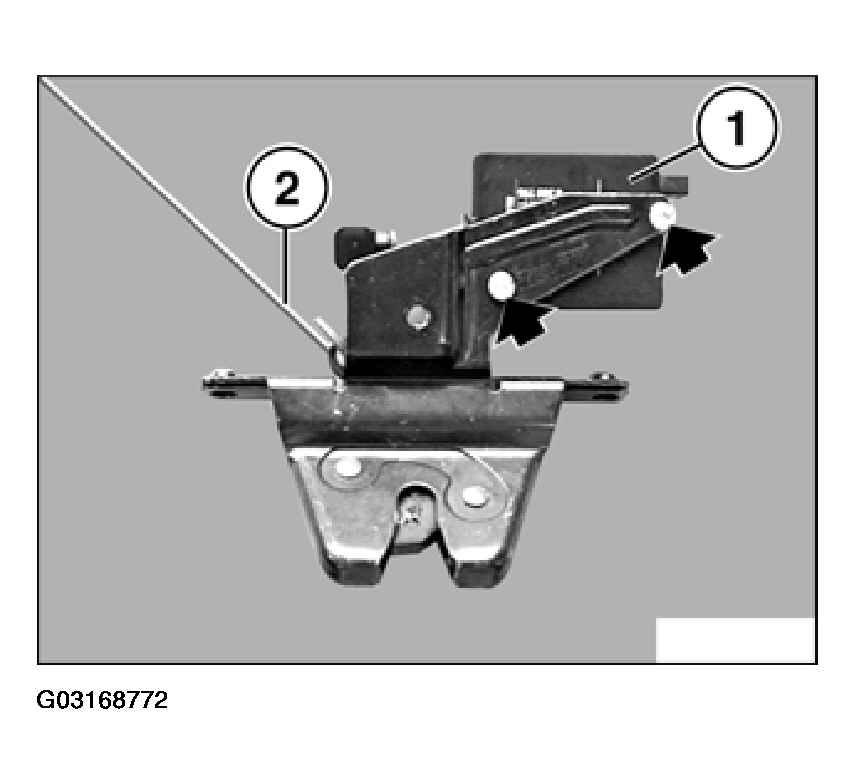

Unfasten screws and remove actuator drive (1).
Lift out actuating rod (2).
