51 24 050 Removing and installing/replacing lock (locking cylinder) for trunk lid set

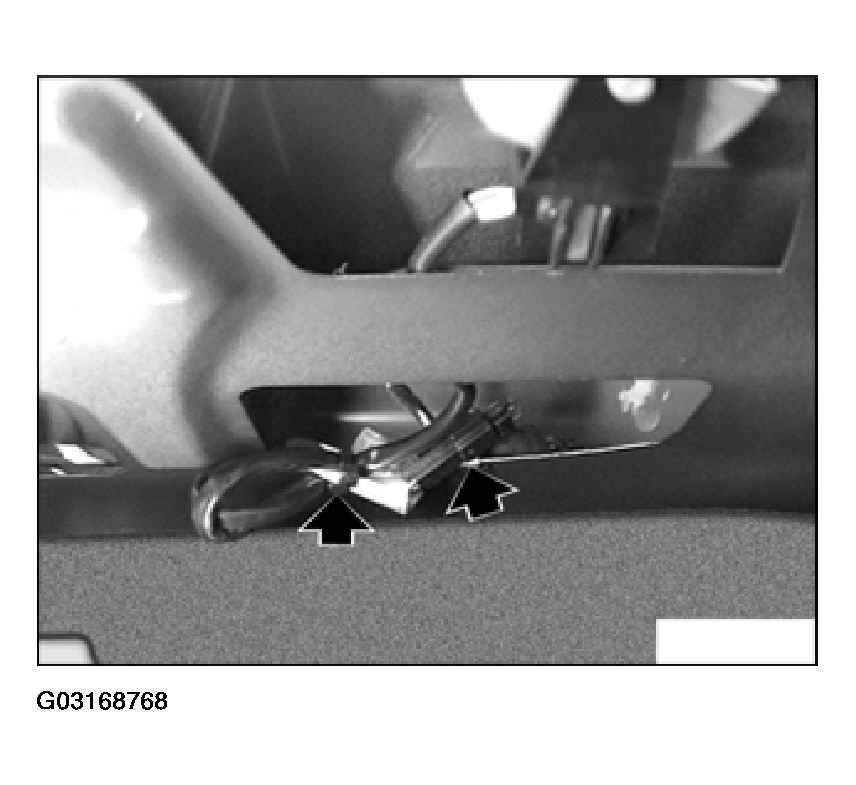

Unfasten cable tie and disconnect plug connection.

Fig 1: Unfastening Cable Tie And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

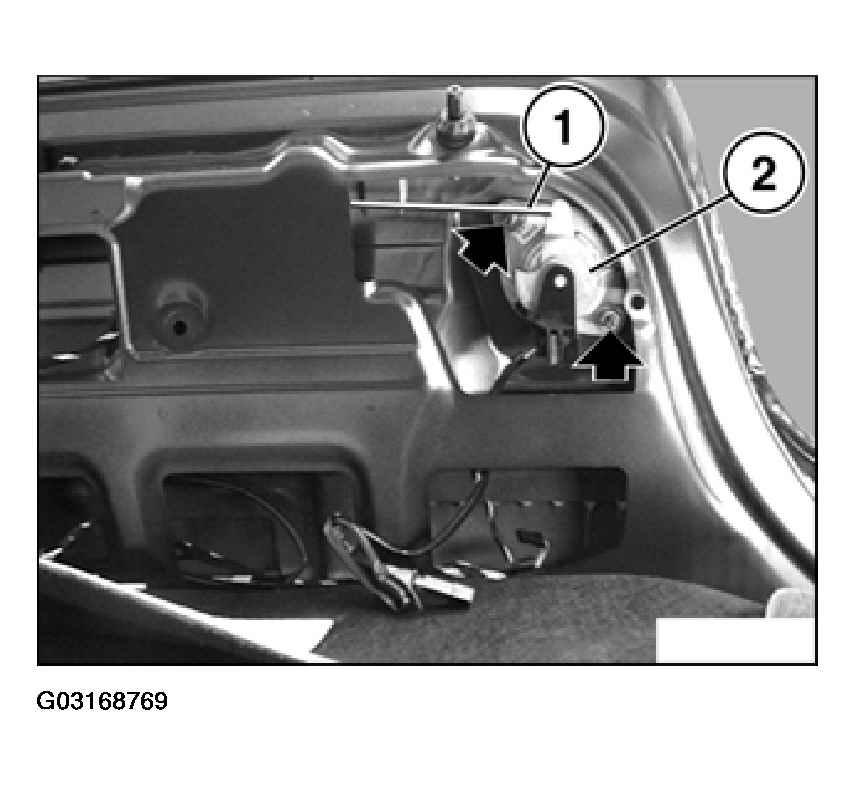

Lift out actuating rod (1).

Fig 2: Lifting Out Actuating Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut and remove connection (2).

Installation:

Check that actuating rod (1) is correctly seated.

Locking section (2) must be fitted to center of body aperture.

Installation:

Perform function check with trunk lid open.

Only replace:

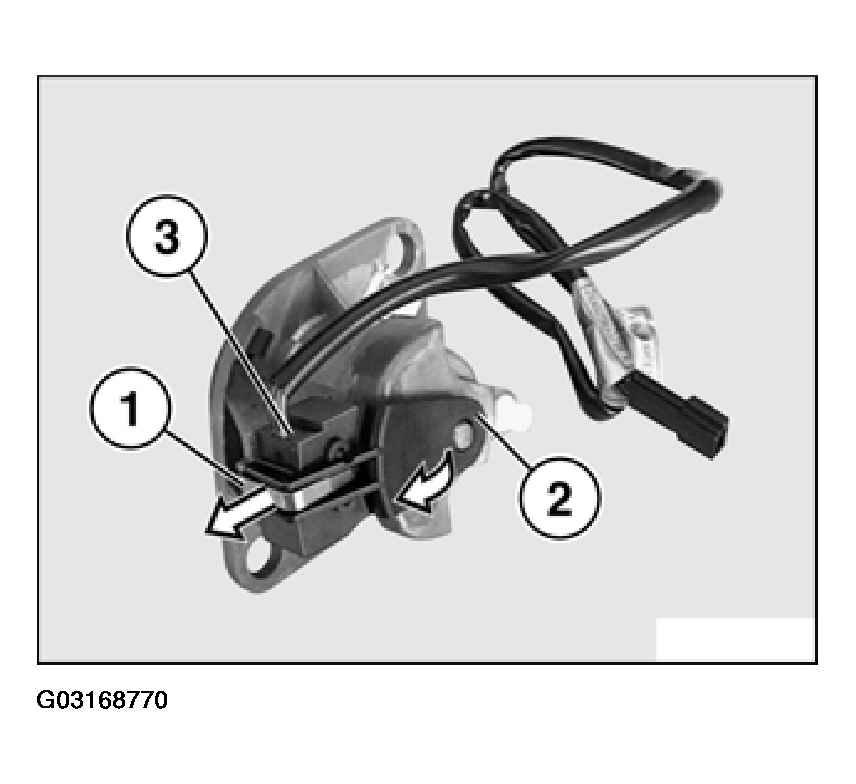

Remove clip (1) lift out bracket (2) and remove micro-switch (3).

Fig 3: Removing Clip And Lift Out Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
