51 34 211 Replacing rubber guide for rear left or right door window

Remove and install cover on fixed door window of inside rear door.

Raise window cavity cover strip on rear door, outside front (do not remove), refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

Unscrew bolts (1).

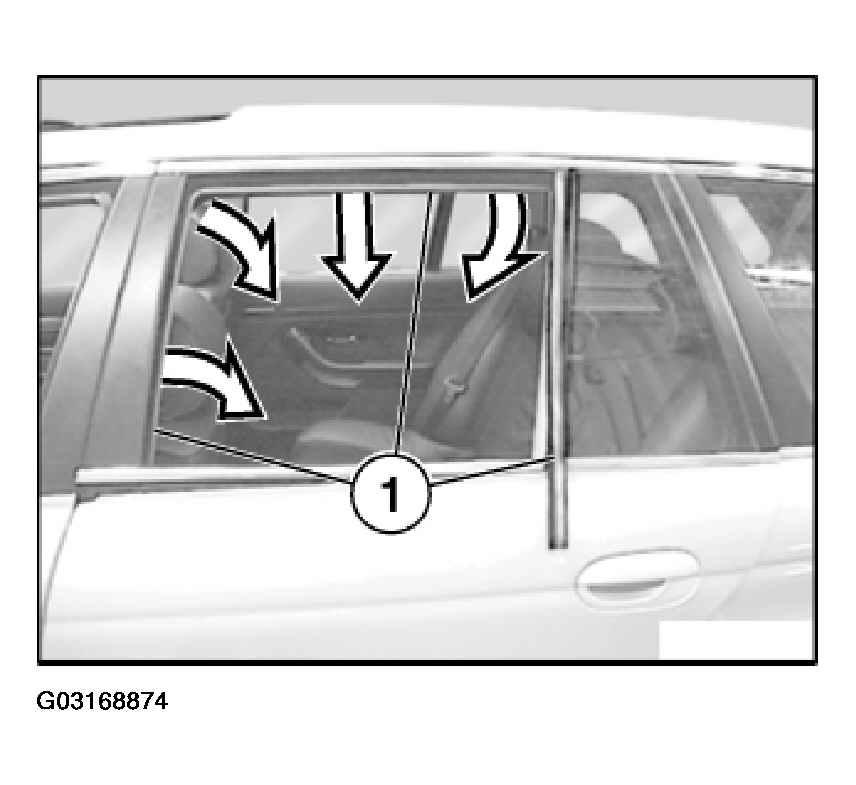

Fig 1: Unscrewing Bolts On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) and remove trim (2) upwards.

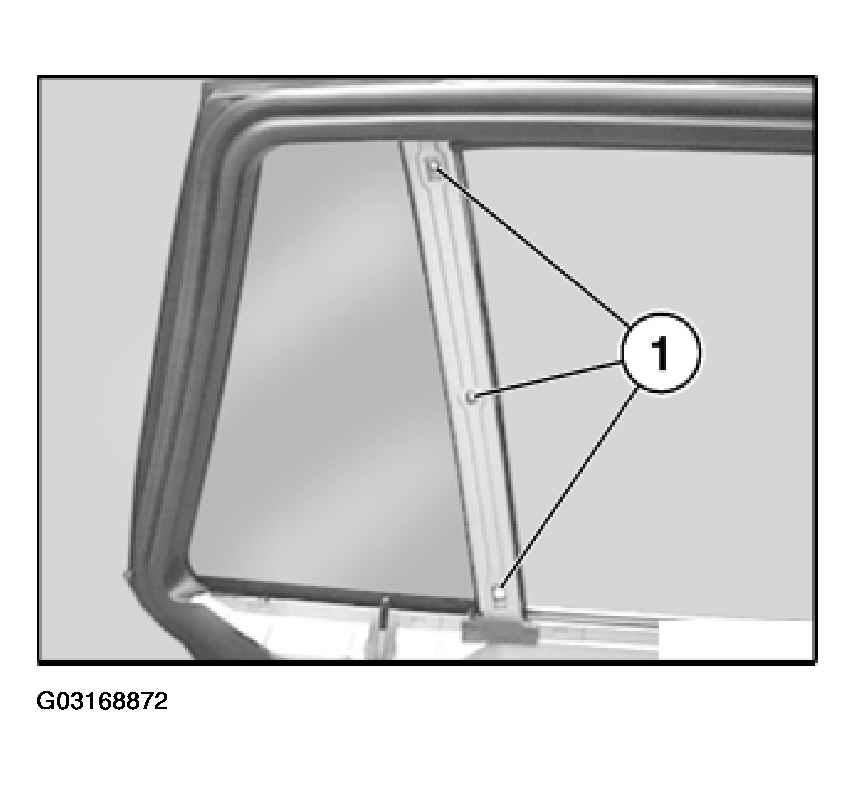

Fig 2: Detaching Rubber Guide And Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber guide (1).

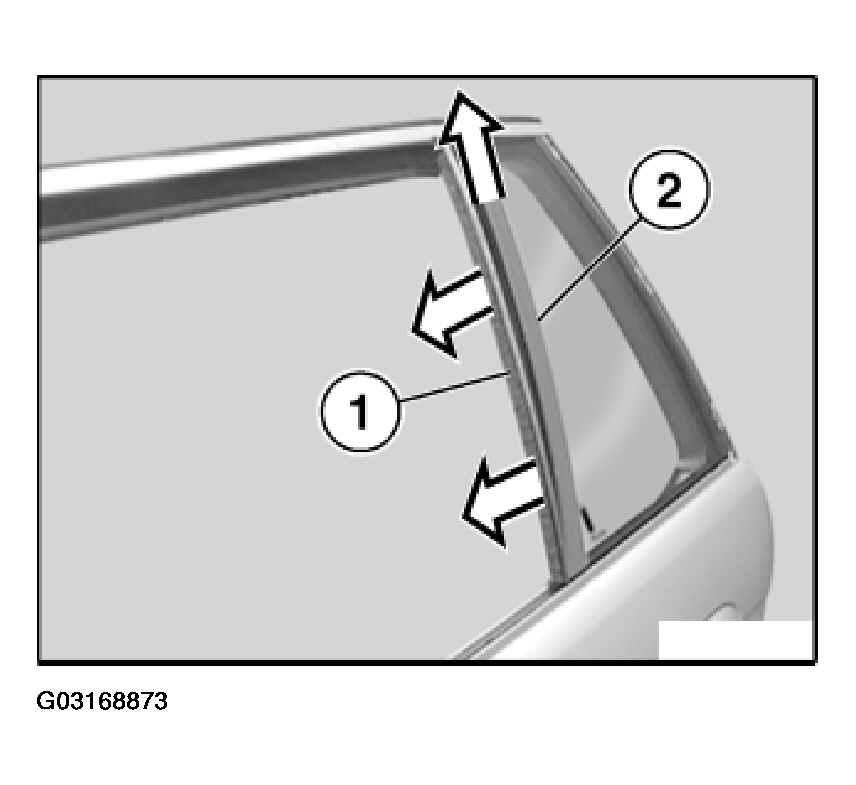

Fig 3: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.
