51 34 160 Removing and installing/replacing cover on door window frame (rear door), left or right (Protection)

Remove rear left or right door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Open bracket for roller sun blind.

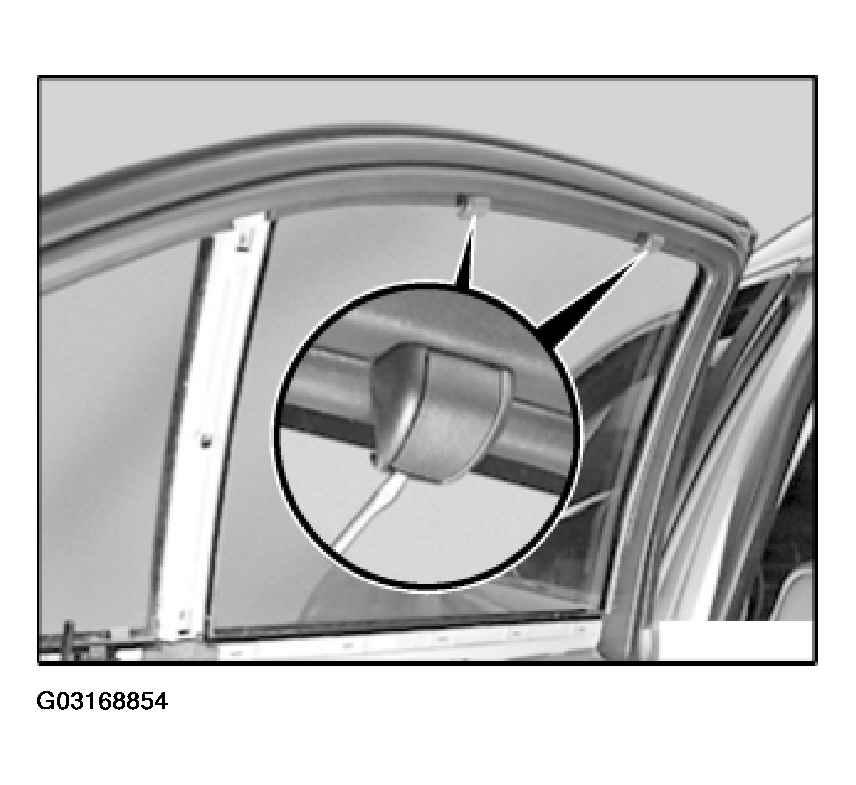

Fig 1: Opening Bracket For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Installation:

Note installation sequence of adapter (2) and bracket (3).

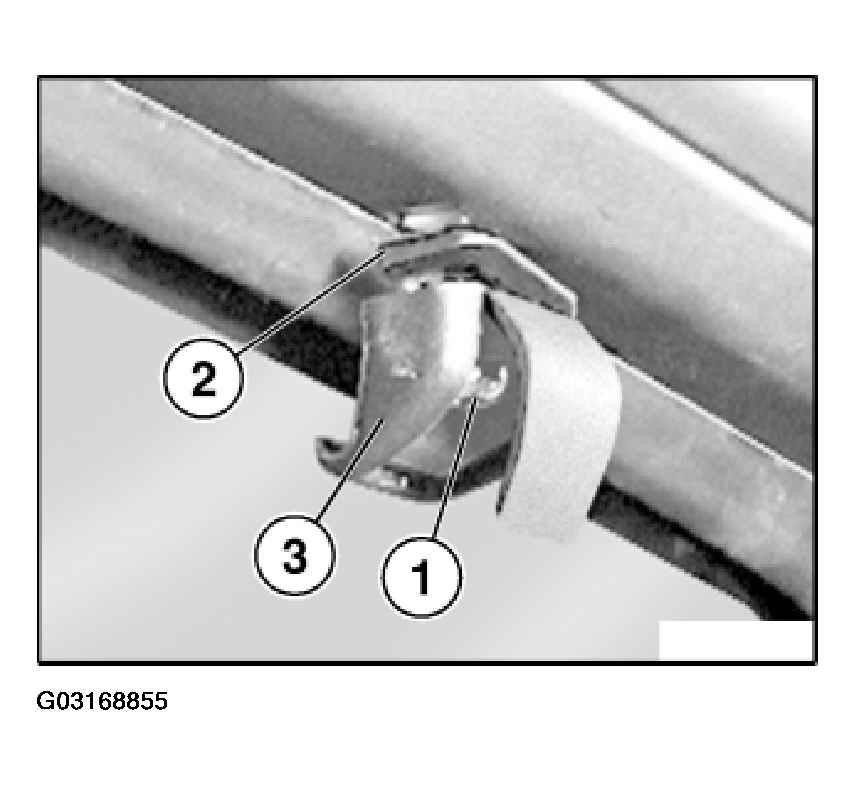

Fig 2: Unscrewing Bolt From Adapter And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Lever rivet (1) out of cover (2).

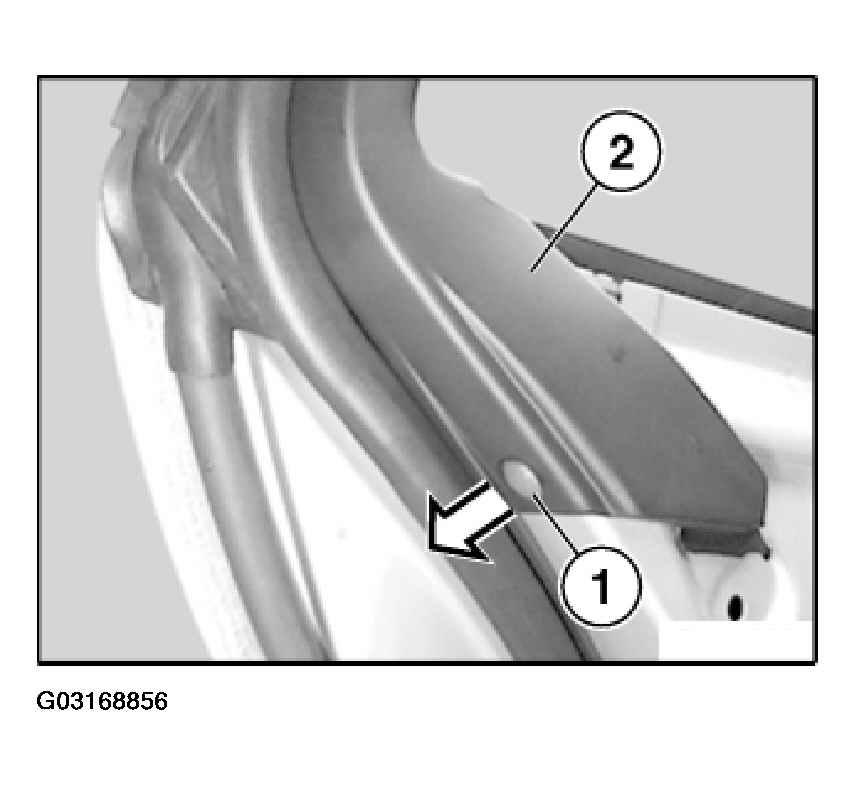

Fig 3: Levering Rivet Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out and remove cover (1) first at rear (A), top (B) and then front (C).

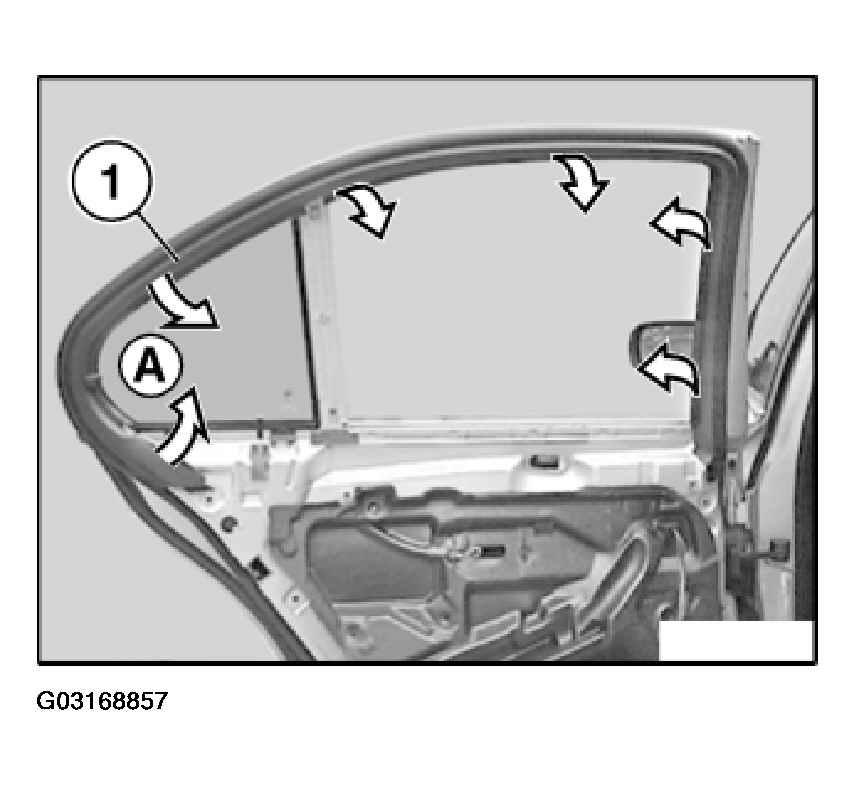

Fig 4: Lifting Out And Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
