51 22 170 Removing and installing / replacing outside handle on left or right back door

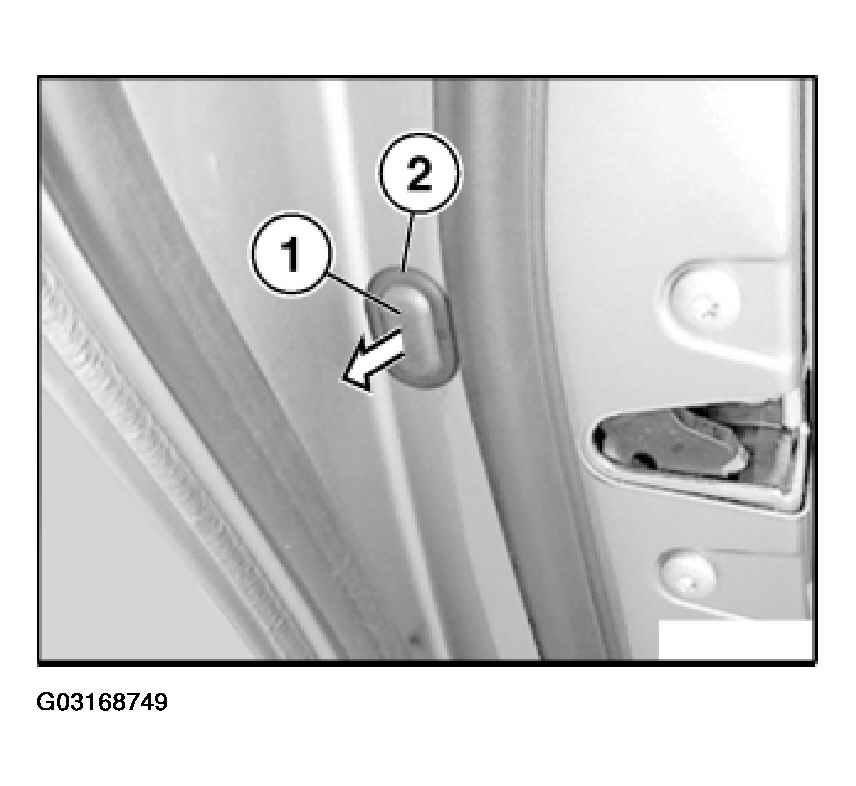

Lift out seal plugs (1) and (2).

Mask the area around the bore with fabric adhesive tape (risk of damage).

Installation:

Fit new seal plugs.

Fig 1: Locating Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

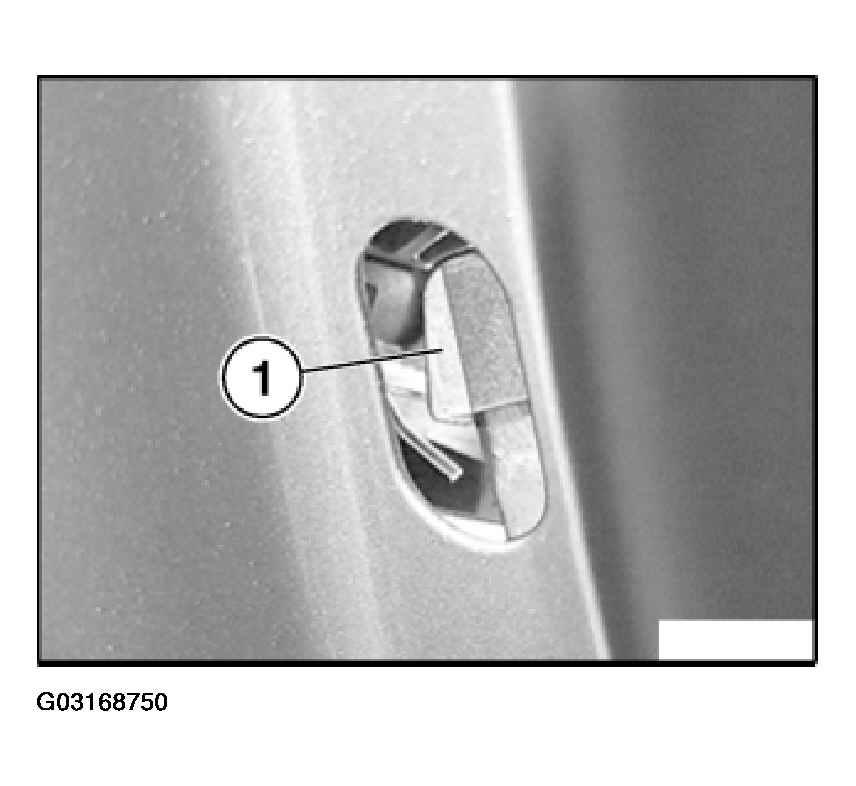

Cut off foam tape around area (1) with Stanley knife (razor-sharp).

Fig 2: Cutting Off Foam Tape Around Area

Courtesy of BMW OF NORTH AMERICA, INC.

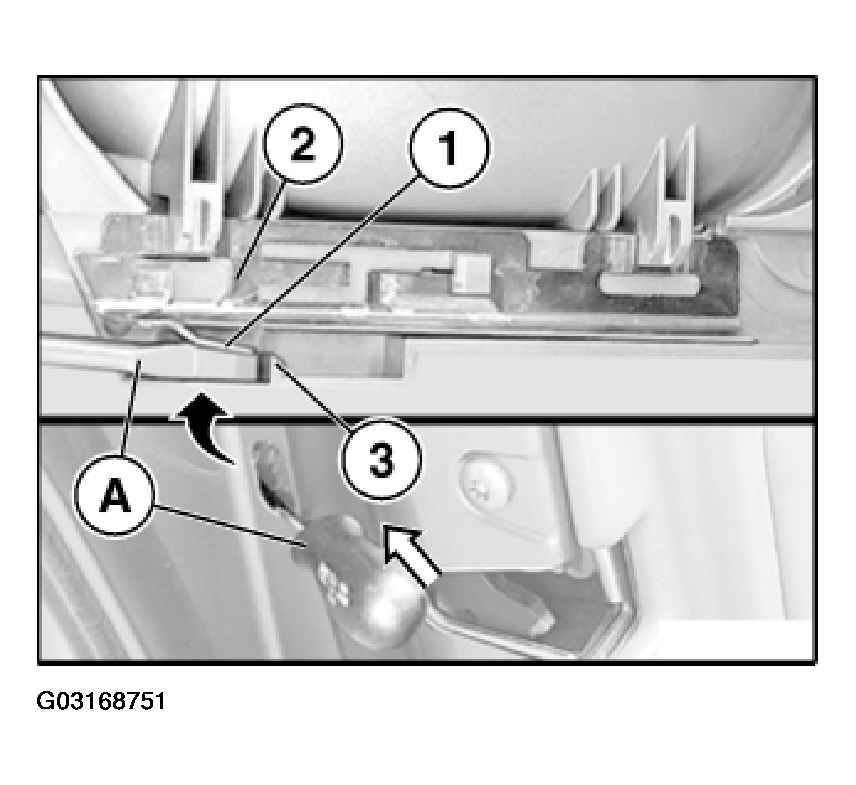

Insert screwdriver (A) and lift retaining tab (1) on locking plate (2) over the retaining lug (3).

Fig 3: Lifting Retaining Tab Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

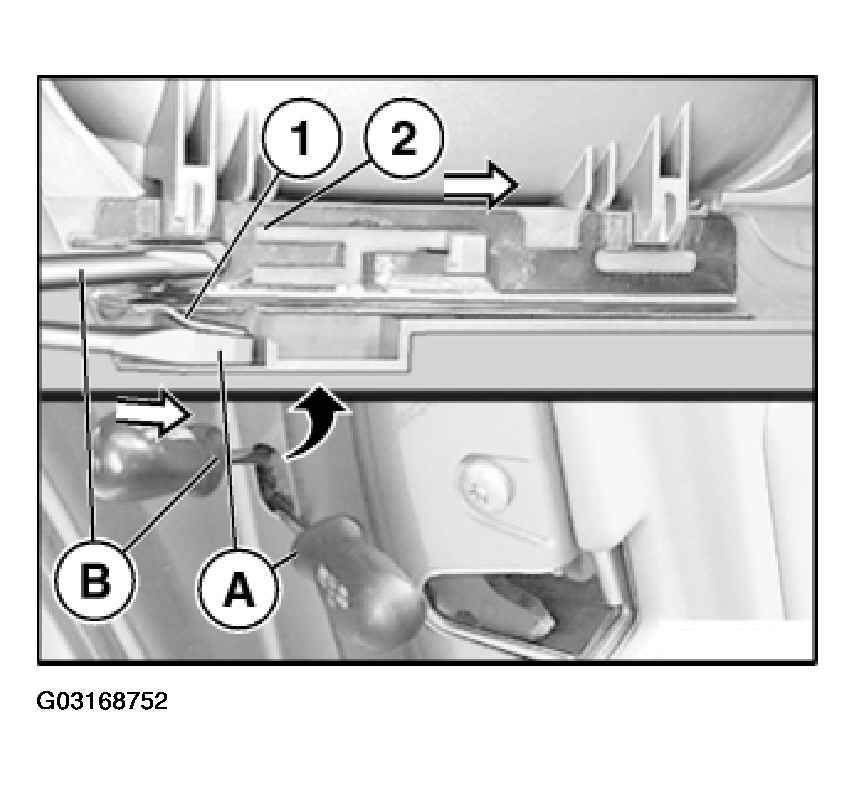

Using small screwdriver (B) (0.4 x 2 mm), press locking plate (2) with raised retaining tab (1) forwards.

Remove both screwdrivers.

Fig 4: Pressing Locking Plate Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

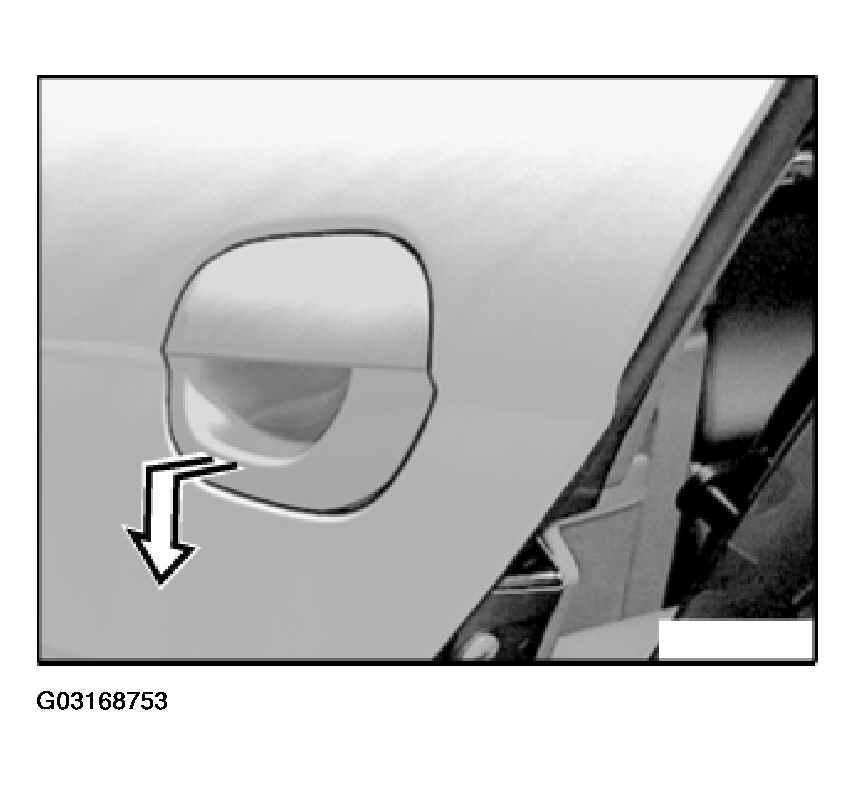

Lift out lower edge of outside handle and pull obliquely downwards to remove.

Fig 5: Lifting Out Lower Edge Of Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

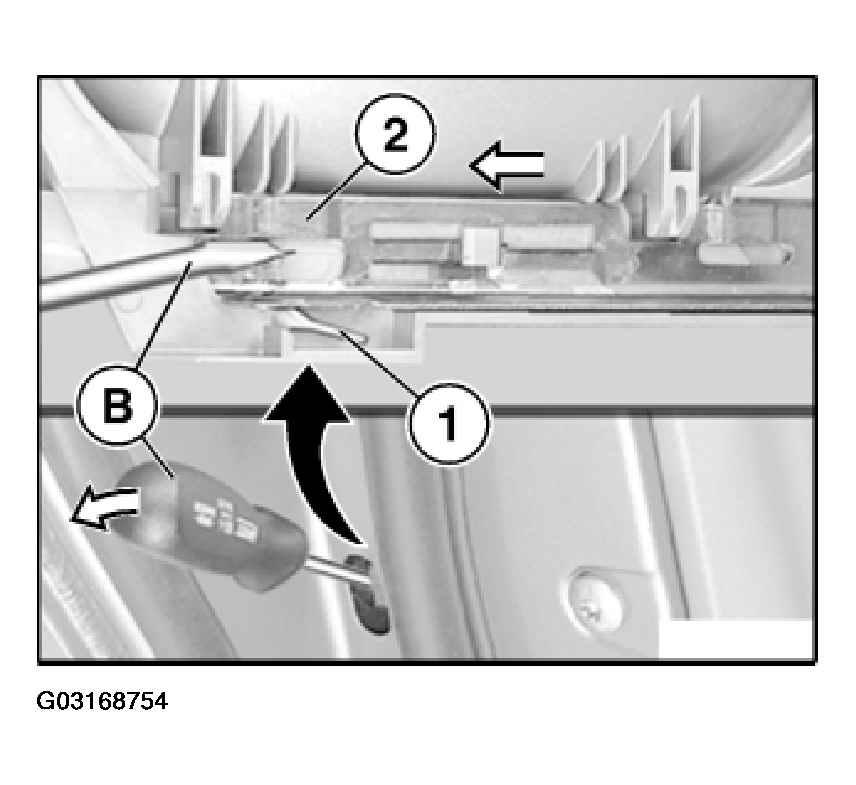

Insert screwdriver (B) (0.4 x 2 mm) in locking plate (2) and pull it backwards until the retaining tab (1) engages audibly.

Perform function check with opened rear door.

Fig 6: Engaging Locking Plate Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
