51 16... Replacing left or right outside mirror housing

Mirror with automatic dip action:

Tilt mirror forward. Unclip retaining clips and remove cover.

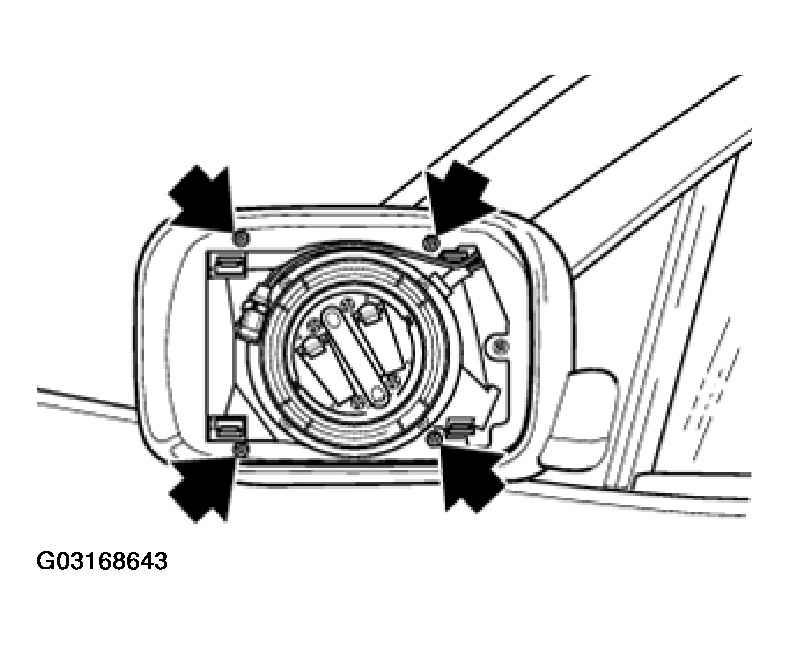

Fig 1: Unclipping Retaining Clips And Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Mirror with automatic dip action:

Fold mirror forward again as far as possible.

Unfasten screws and remove "housing glasses".

Installation:

Check function.

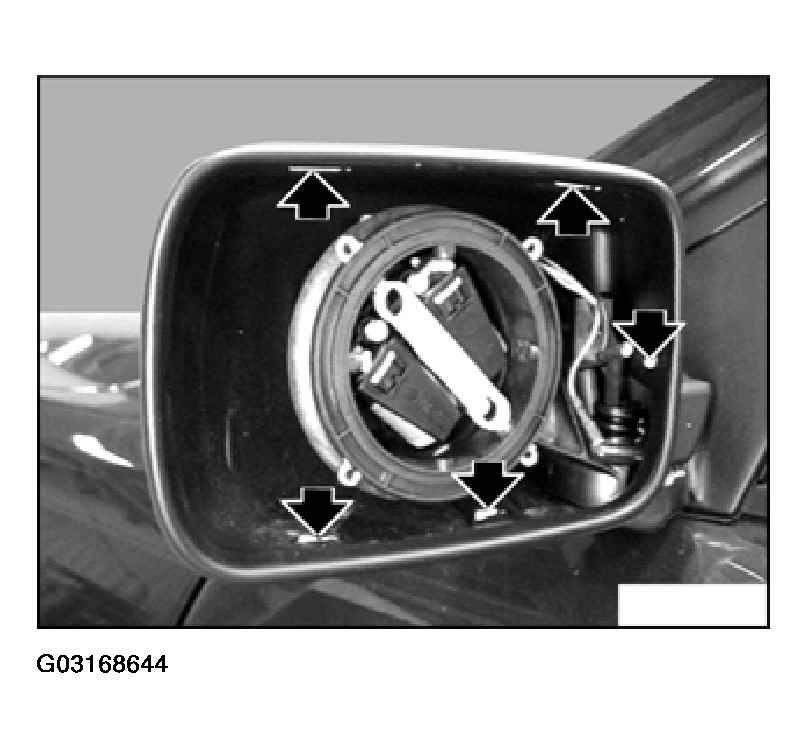

Fig 2: Unfastening Screws And Removing "Housing Glasses"

Courtesy of BMW OF NORTH AMERICA, INC.

Mirror without automatic dip action:

Tilt mirror forward. Unclip retaining clips and remove cover.

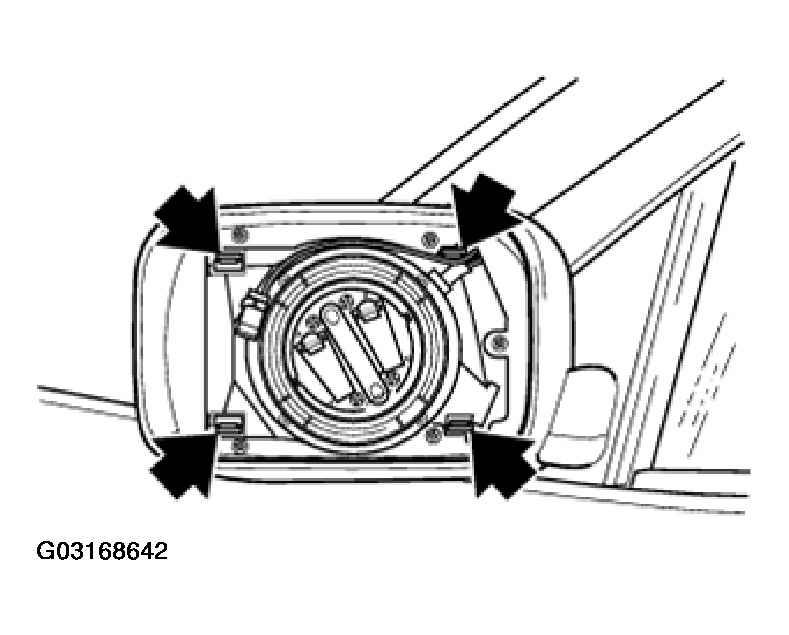

Fig 3: Unclipping Retaining Clips And Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
