51 16... Removing and installing/replacing center armrest

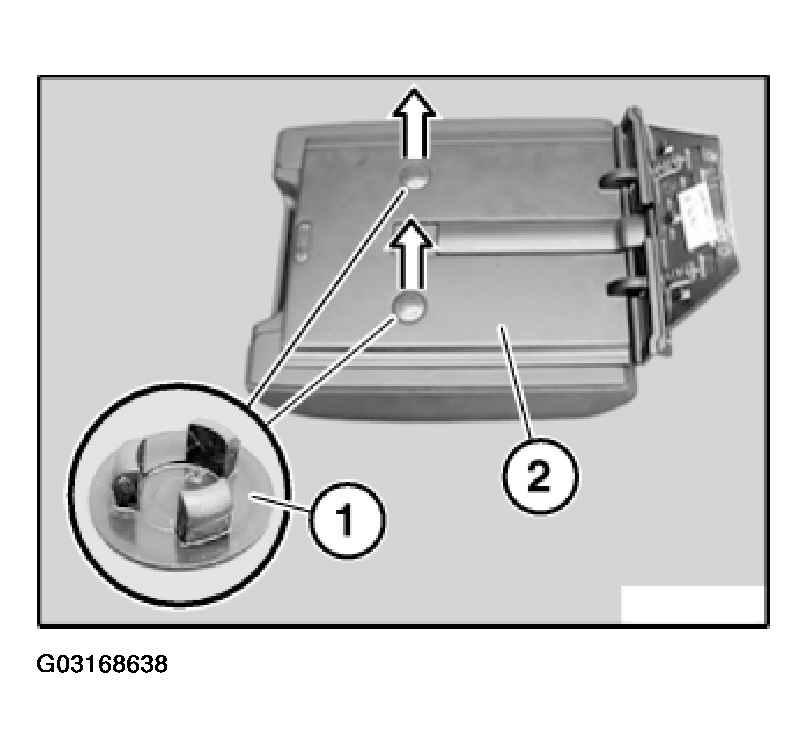

Lever trims (1) out of sliding unit (2).

Installation:

Replace trims (1).

Fig 1: Levering Trims Out Of Sliding Unit

Courtesy of BMW OF NORTH AMERICA, INC.

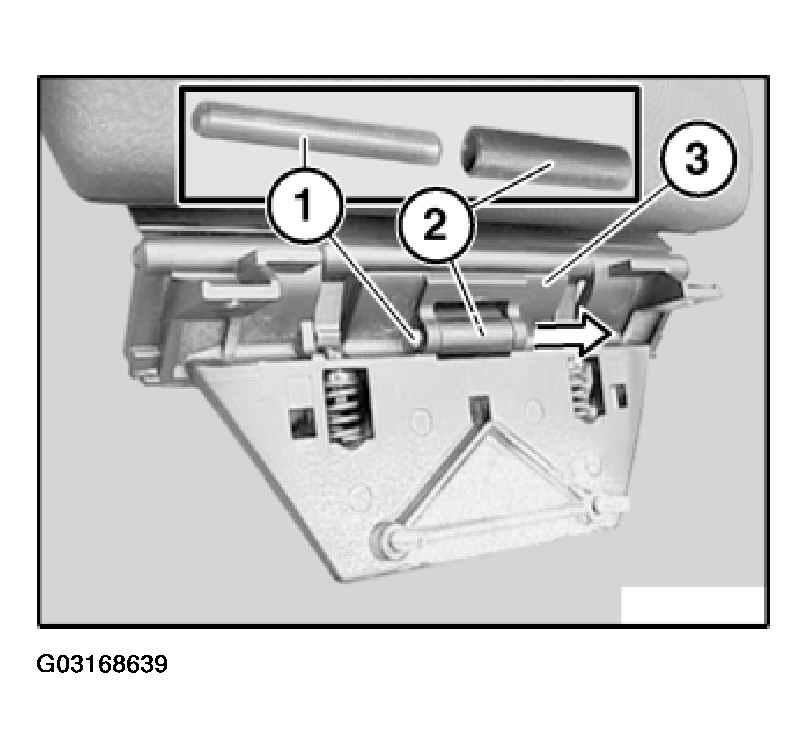

Drive pin (1) with sleeve (2) out of sliding unit (3).

Fig 2: Driving Pin With Sleeve Out Of Sliding Unit

Courtesy of BMW OF NORTH AMERICA, INC.

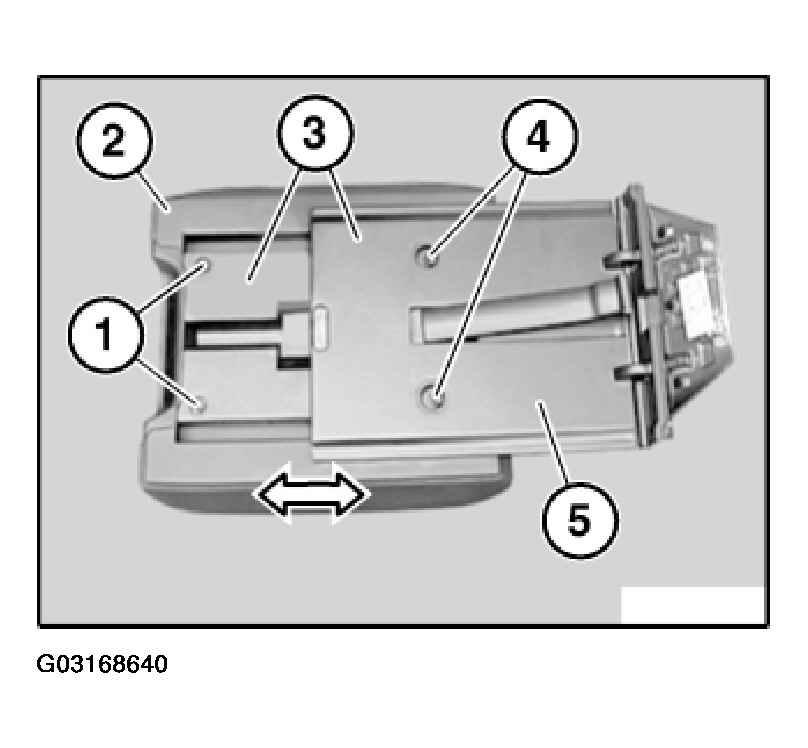

Pull sliding unit (3) apart and release screws (1).

CAUTION: The next work step must be carried out with the assistance of a second person (risk of injury).

The second person must pull the sliding unit (3) apart (spring pressure) until the screws (4) are accessible.

Release screws (4) and remove center armrest (2).

Fig 3: Removing Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

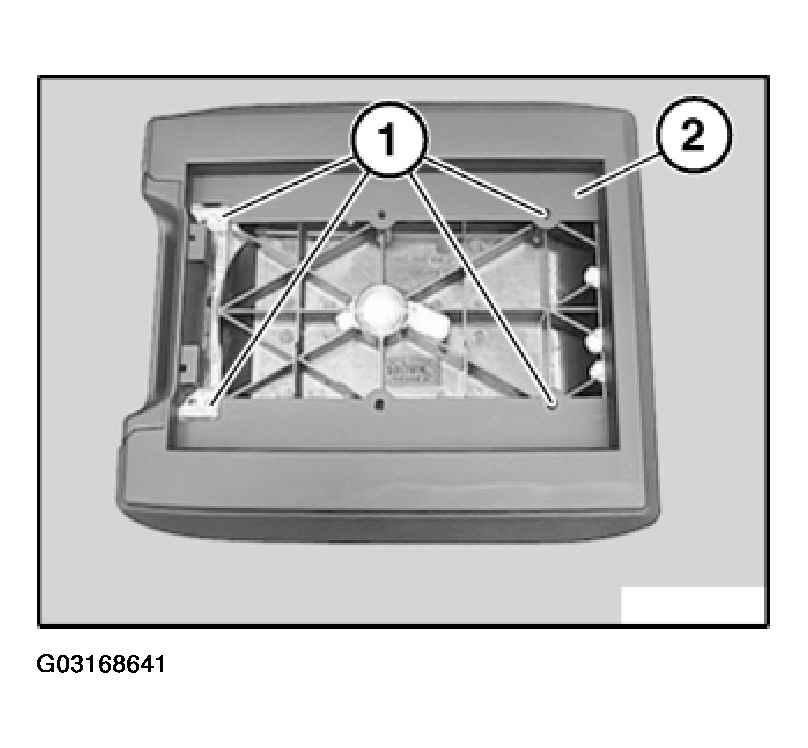

Bore holes (1) in center armrest (2) must not be damaged.

Fig 4: Locating Bore Holes In Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
