51 16 361 Replace right glovebox

Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

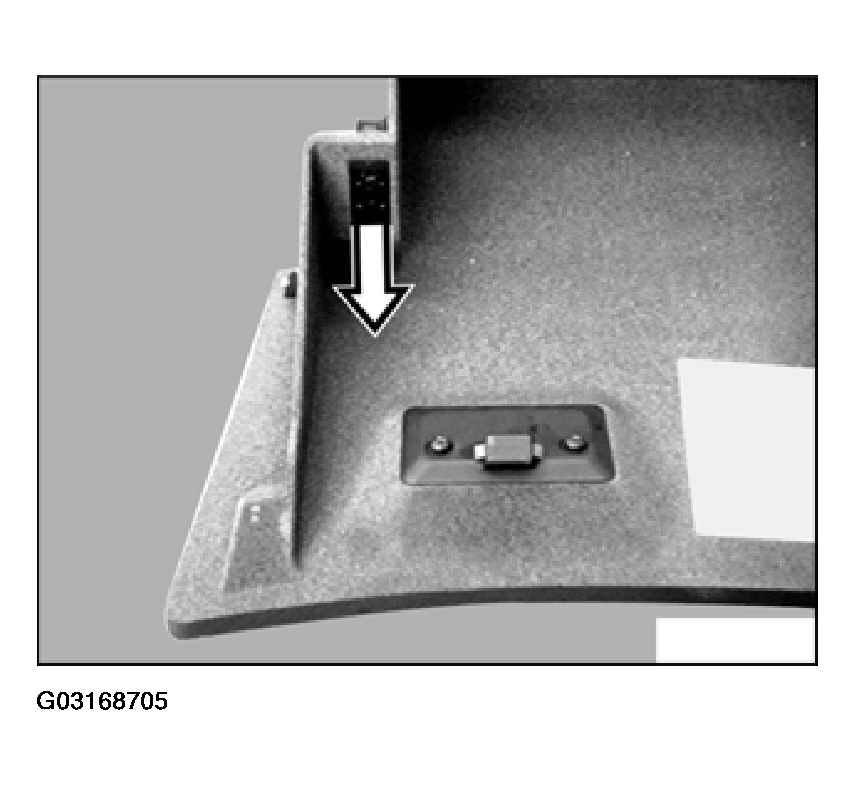

Unclip power connection for accumulator light.

Fig 1: Unclipping Power Connection For Accumulator Light

Courtesy of BMW OF NORTH AMERICA, INC.

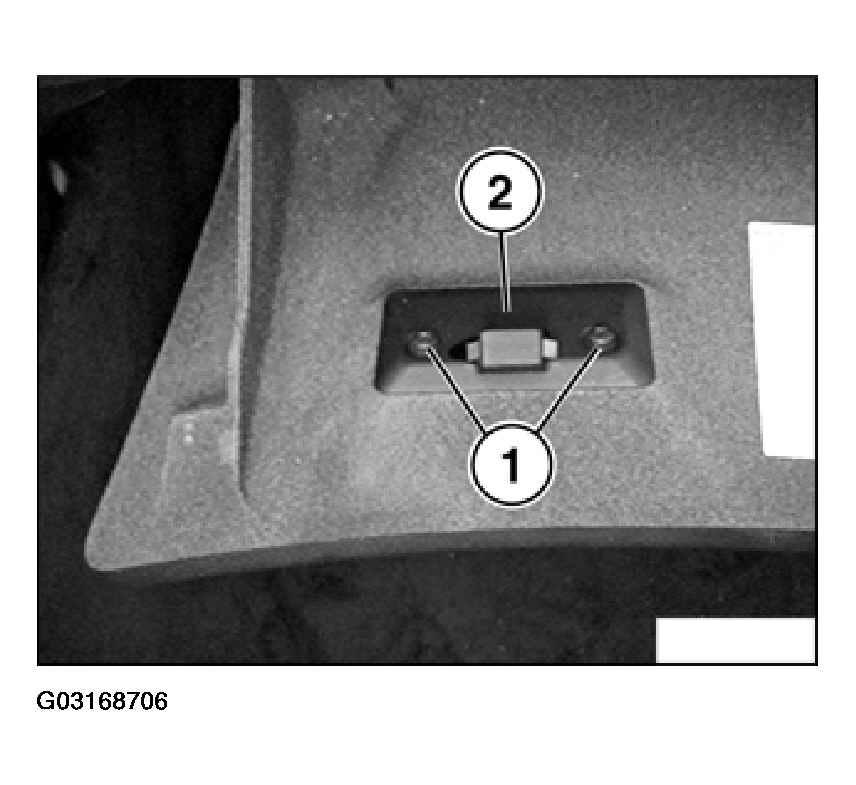

Unscrew bolts (1). Remove upper and lower (2) sections of lock.

Fig 2: Removing Upper And Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

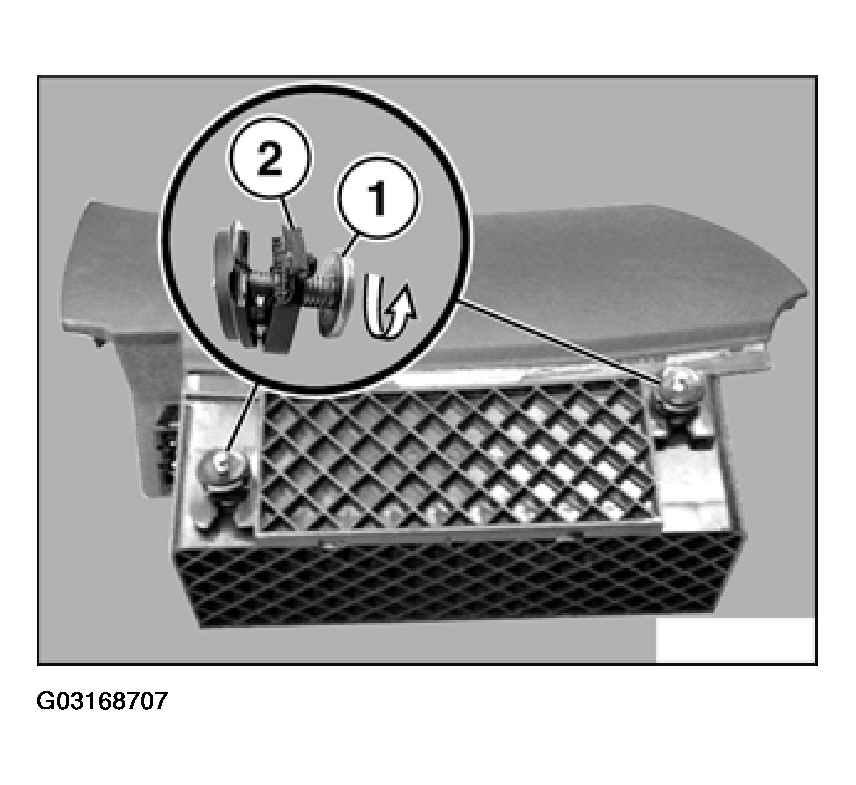

By twisting the screw (1) the height of the clamp bearing (2) and the glovebox is adjusted.

Fig 3: Adjusting Height Of Clamp Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
