51 16 360 Removing and installing right glove box

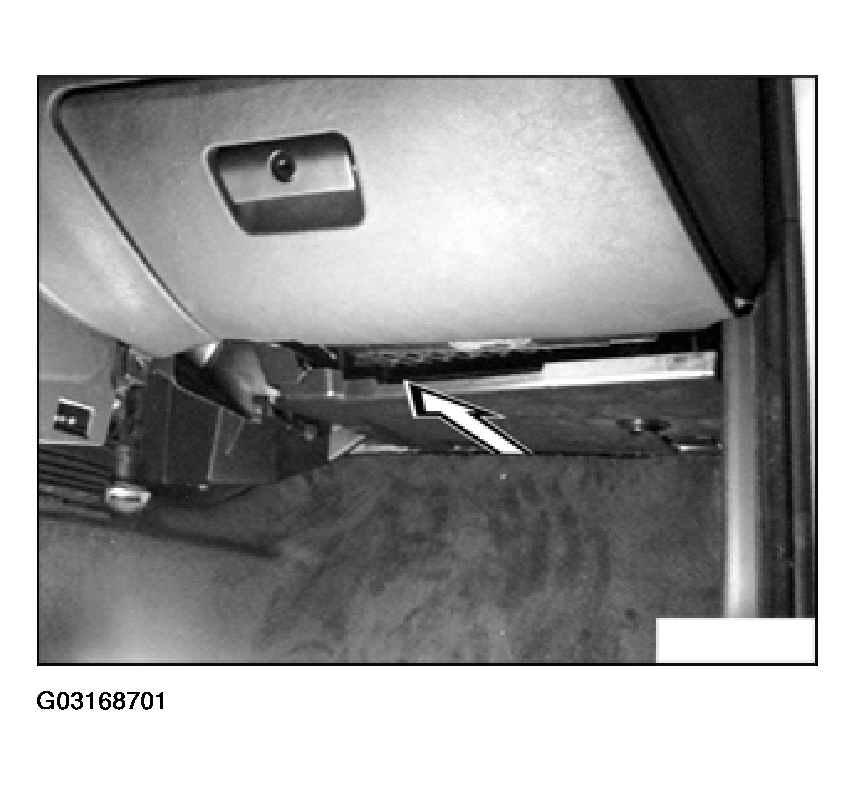

Pull trim panelling backwards to remove.

Fig 1: Removing Trim Panelling

Courtesy of BMW OF NORTH AMERICA, INC.

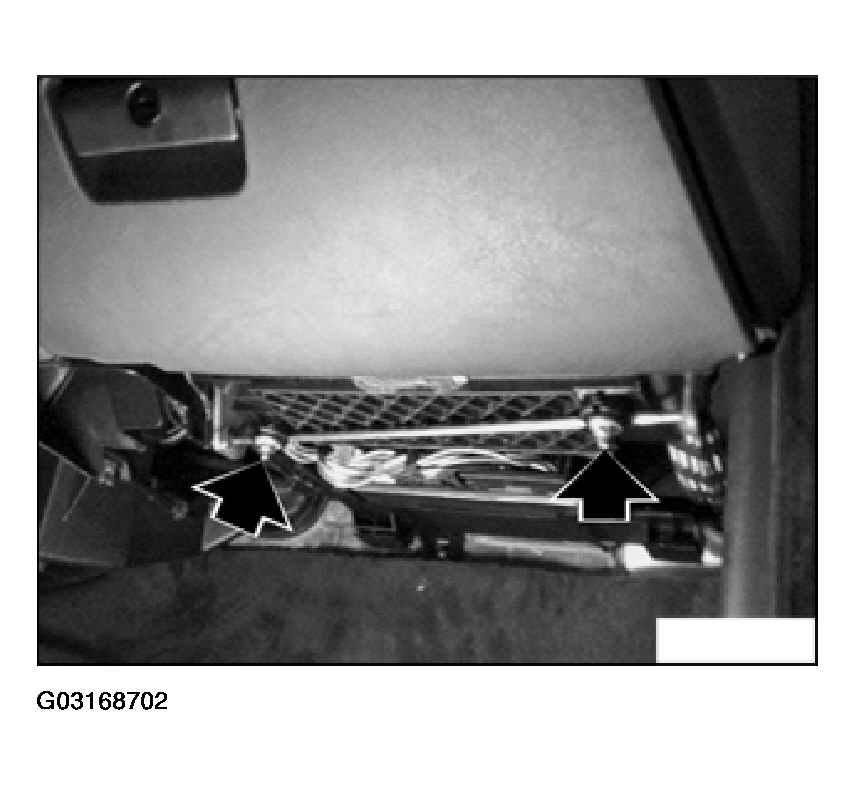

Loosen bolts.

Fig 2: Loosening Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

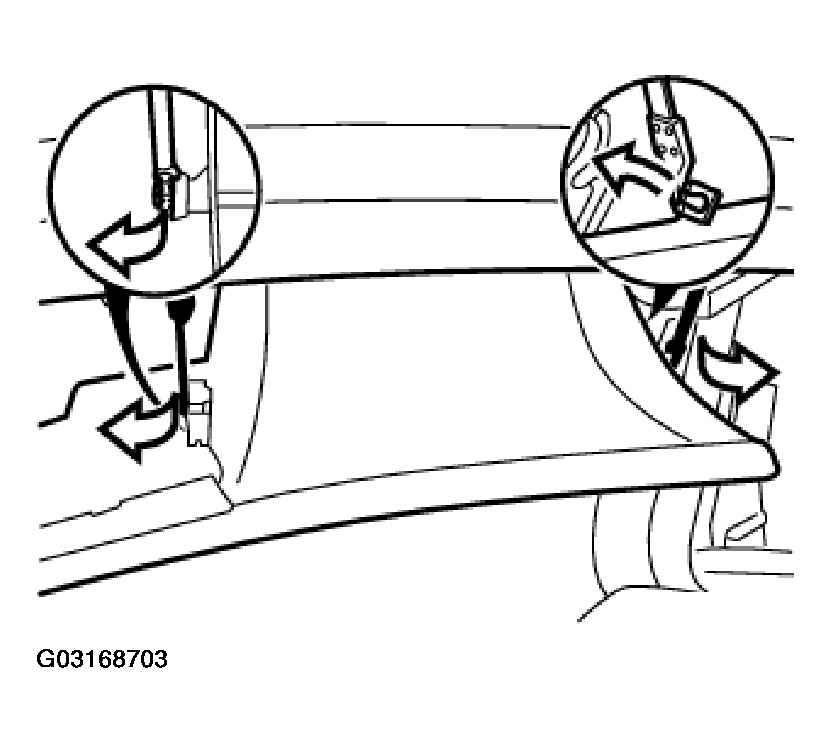

Unclip shock absorber and catch band. Pull glovebox backwards to remove.

Fig 3: Unclipping Shock Absorber And Catch Band

Courtesy of BMW OF NORTH AMERICA, INC.

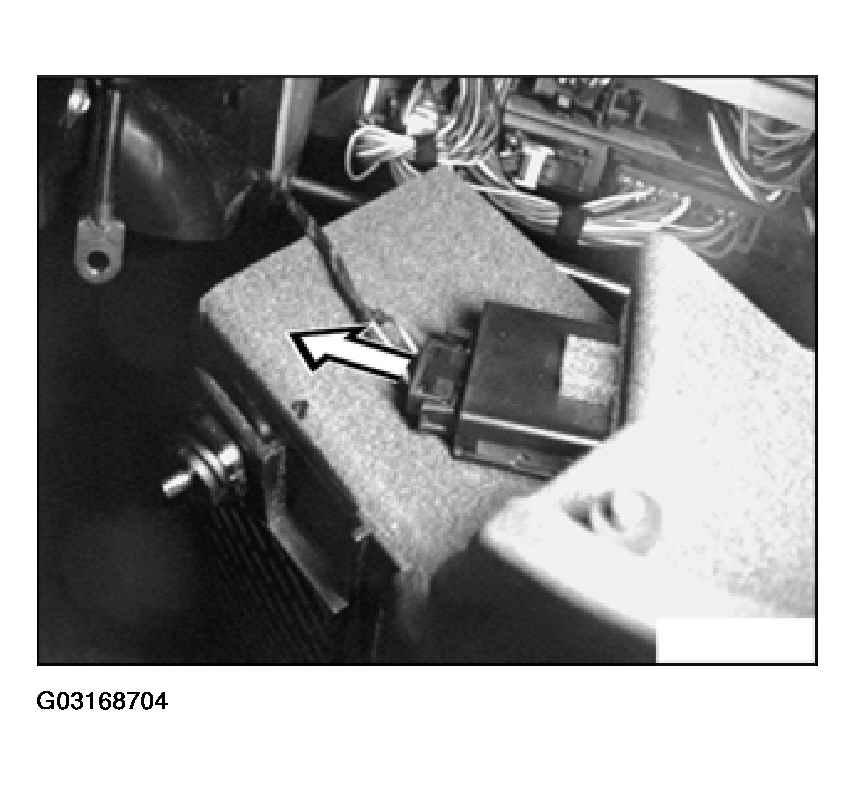

Twist glovebox, remove connector from accumulator light and remove glovebox.

Fig 4: Removing Connector From Accumulator Light

Courtesy of BMW OF NORTH AMERICA, INC.
