51 16 340 Removing and installing/replacing glovebox lock

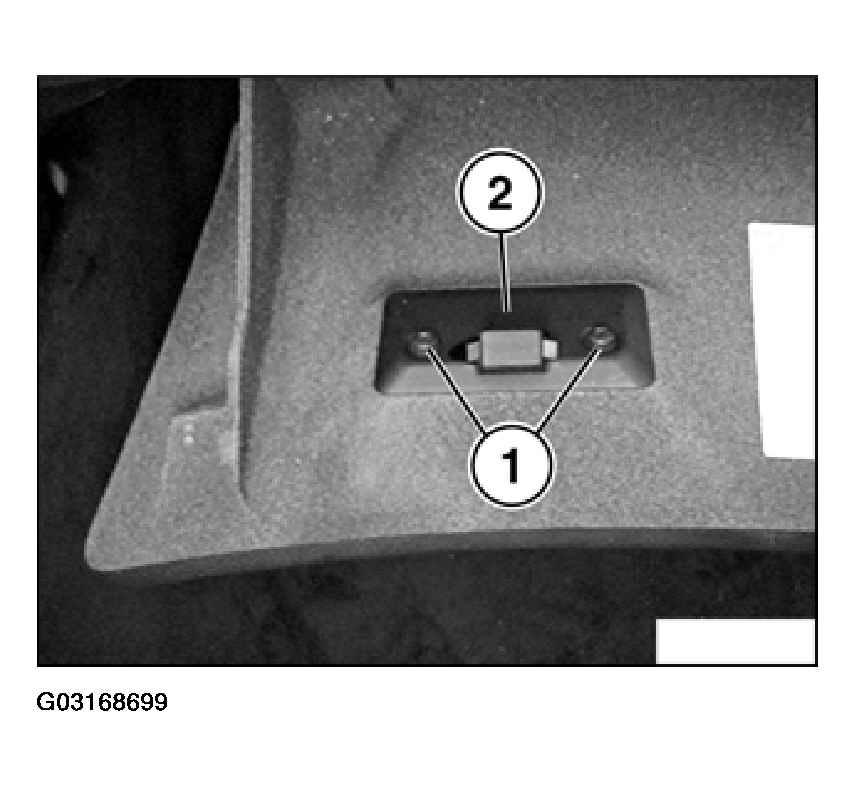

Unfasten screws (1) and remove upper (2) and lower sections of lock.

Fig 1: Removing Upper And Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

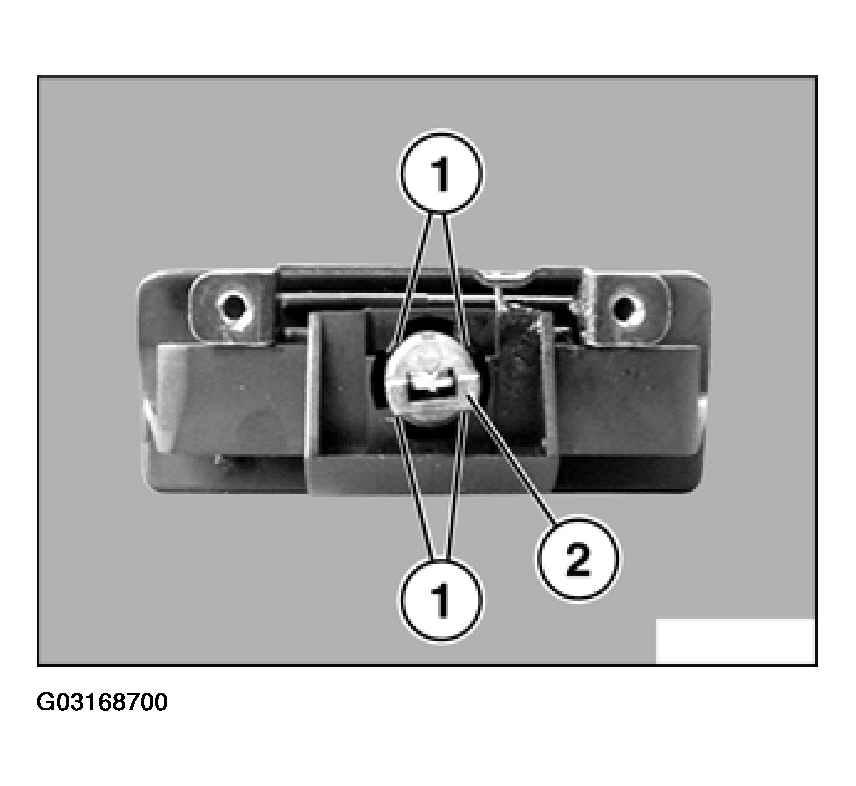

Insert vehicle key in lock cylinder (2).

Break open locks (1) if necessary and pull out lock cylinder (2) with vehicle key.

Fig 2: Inserting Vehicle Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
