51 11 792 Replacing shock absorber for front left bumper

(Bumper removed)

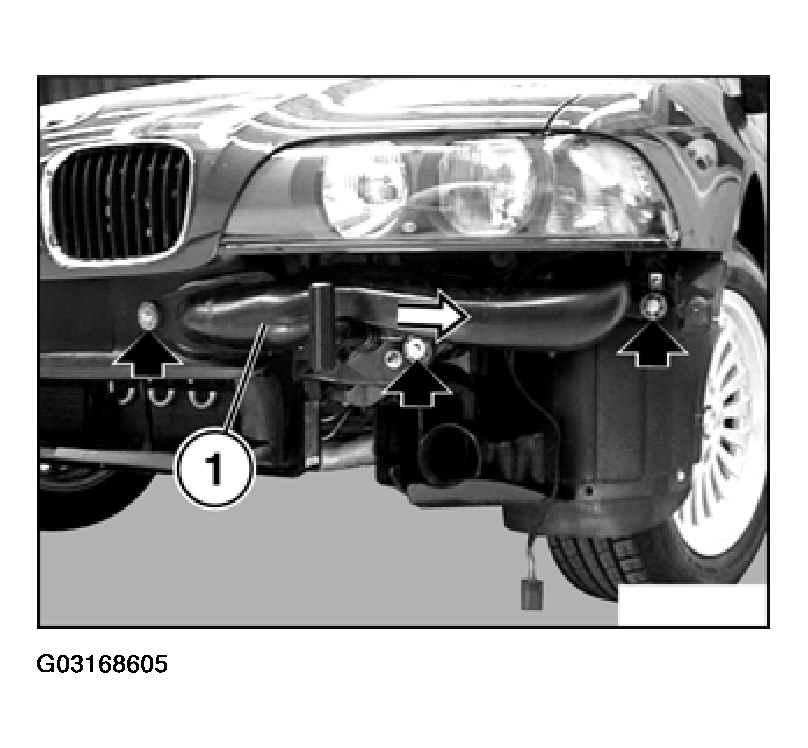

Unfasten screws and pull air guide (1) for intake filter housing outwards to remove.

Fig 1: Removing Air Guide For Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

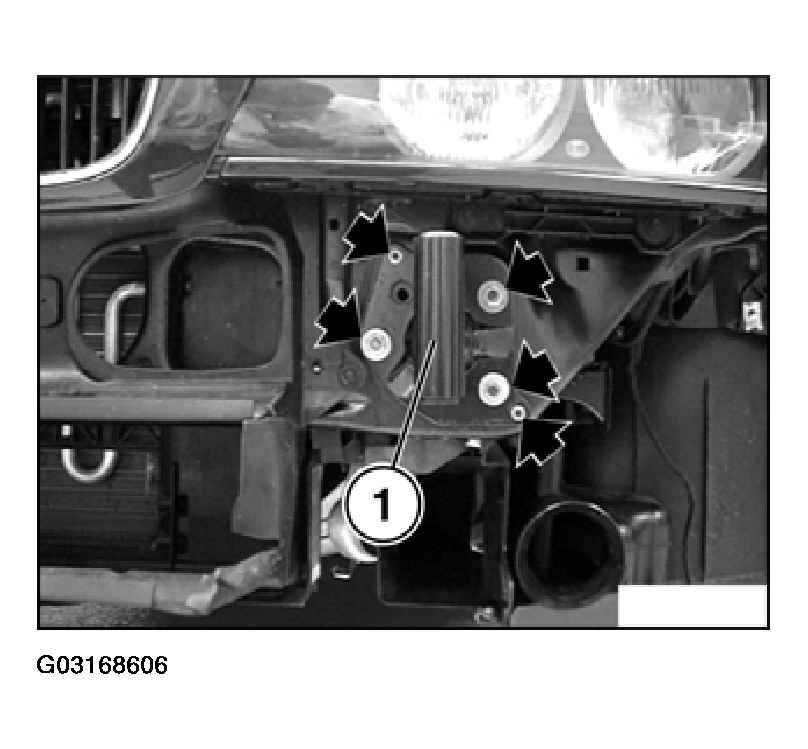

Unfasten screws and remove right shock absorber (1).

Fig 2: Removing Right Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
