51 11 000 Removing and installing complete front bumper

Unfasten left/right screws and lift out wheel arch finishers (1) from side.

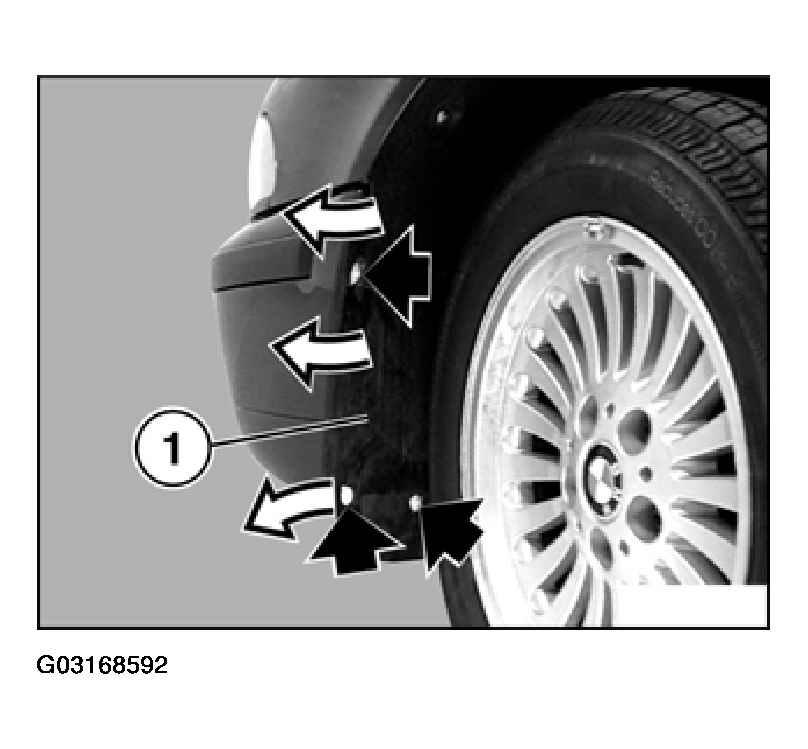

Fig 1: Removing Wheel Arch Finishers From Side

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expansion rivets on left/right and remove grill (1).

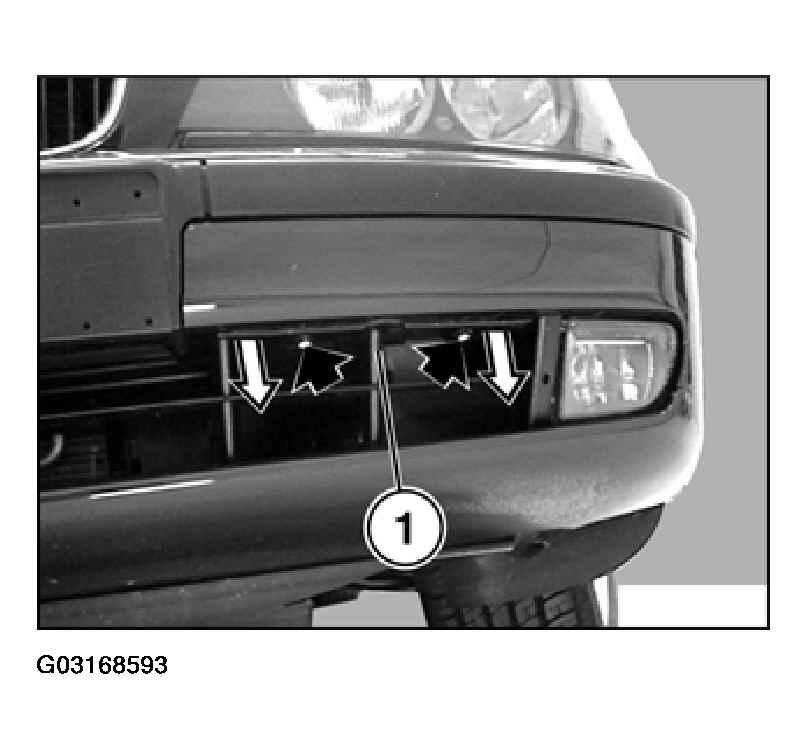

Fig 2: Removing Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on impact absorber on left/right.

Installation:

Tightening torque, refer to 51 11 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

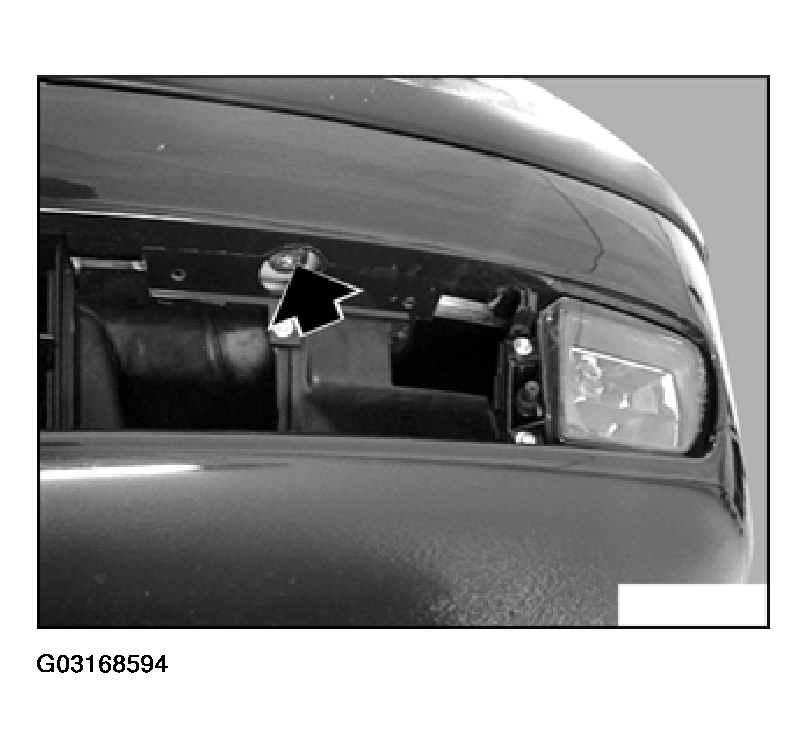

Fig 3: Releasing Screws On Impact Absorber On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC) and/or fog lamps:

Pull bumper back a little.

Disconnect plug connection for fog lamps and/or PDC on left/right.

Remove bumper.

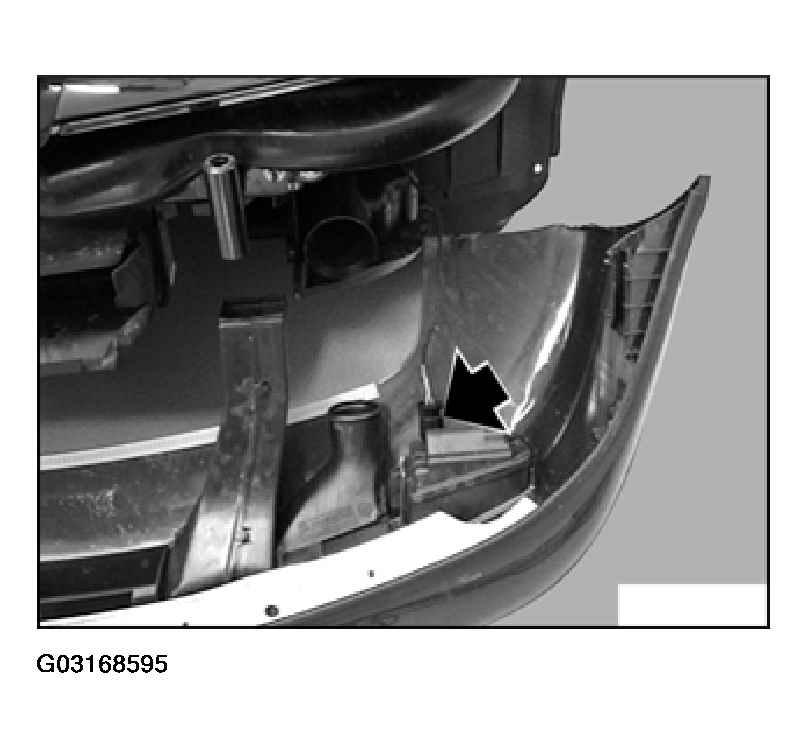

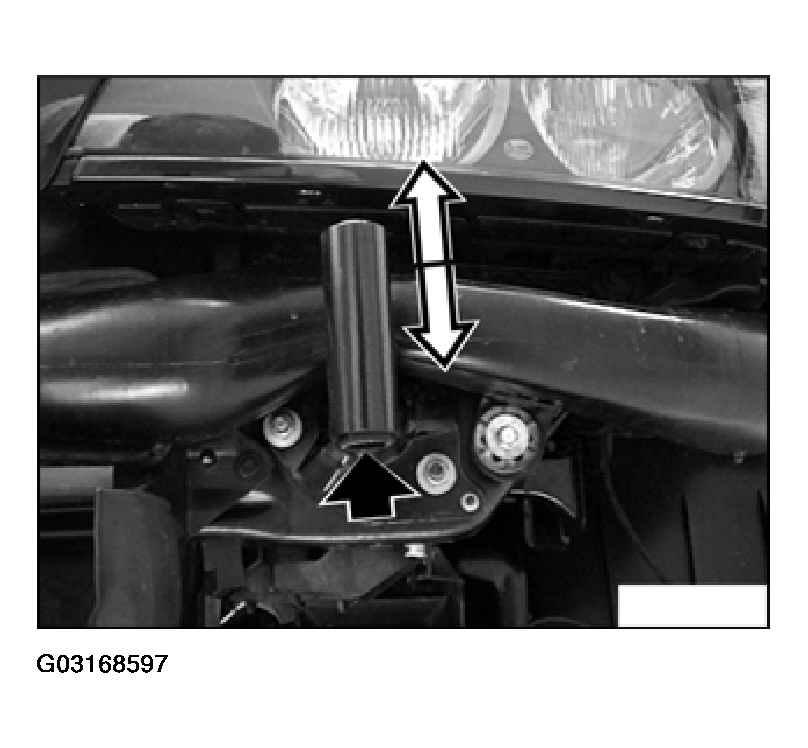

Fig 4: Removing Bumper (Park Distance Control Version)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight cleaning system:

Pull bumper back a little:

Detach lock and disconnect hose connection.

Remove bumper.

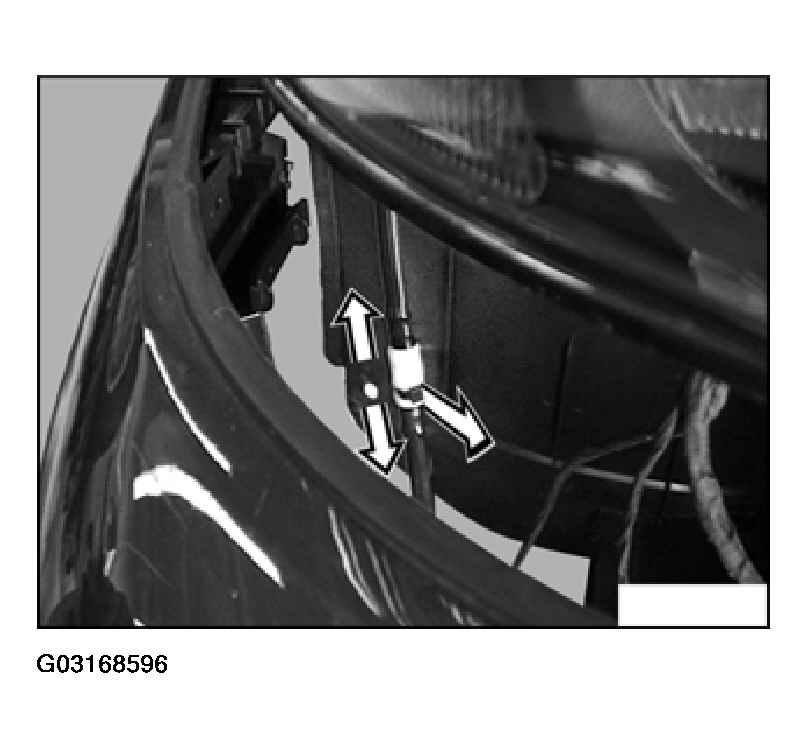

Fig 5: Removing Bumper (Headlight Cleaning System Version)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The height of the bumper is adjusted by turning the socket head cap screw.

Fig 6: Adjusting Height Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Distance (A) must be the same all around between the bumper and body cutout.

Dimension (A) = 5 +/- 1 mm.

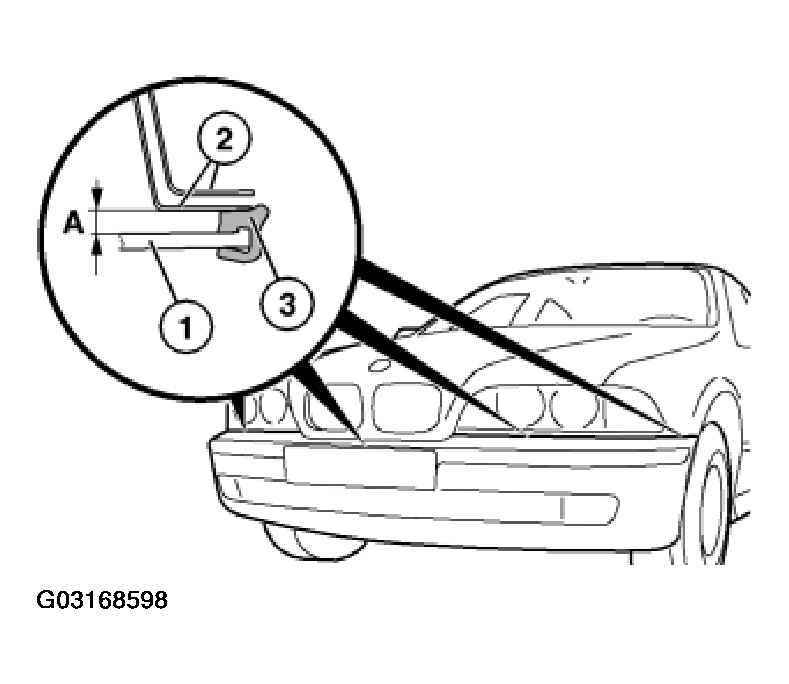

Fig 7: Identifying Ideal Adjustment
