51 47 101 Removing and installing/replacing luggage compartment floor trim panel

Open trunk lid.

Take out luggage compartment floor trim panel (1).

Only replace:

Unhook tensioning belts (2).

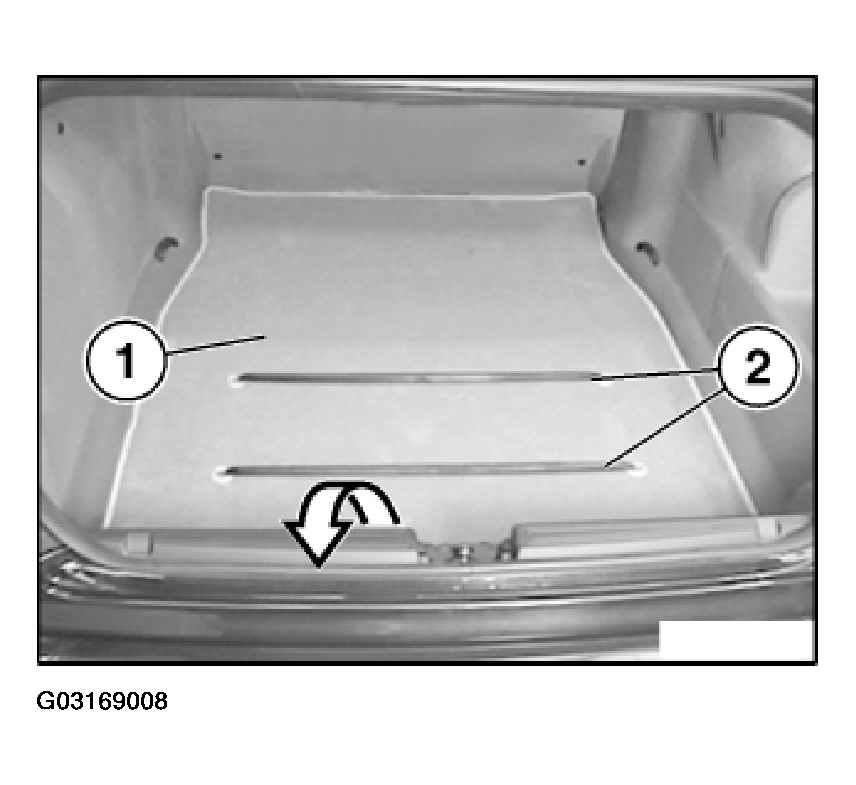

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
