Base BC/Instrument Cluster Test Functions: Sub-Tests

L-ON...

L-OFF 19.0  =

Display changes from "L-ON" to "L-OFF" every second. To unlock test functions, press the cluster button immediately when it changes to "L-OFF". Tests are automatically locked when exiting test functions.

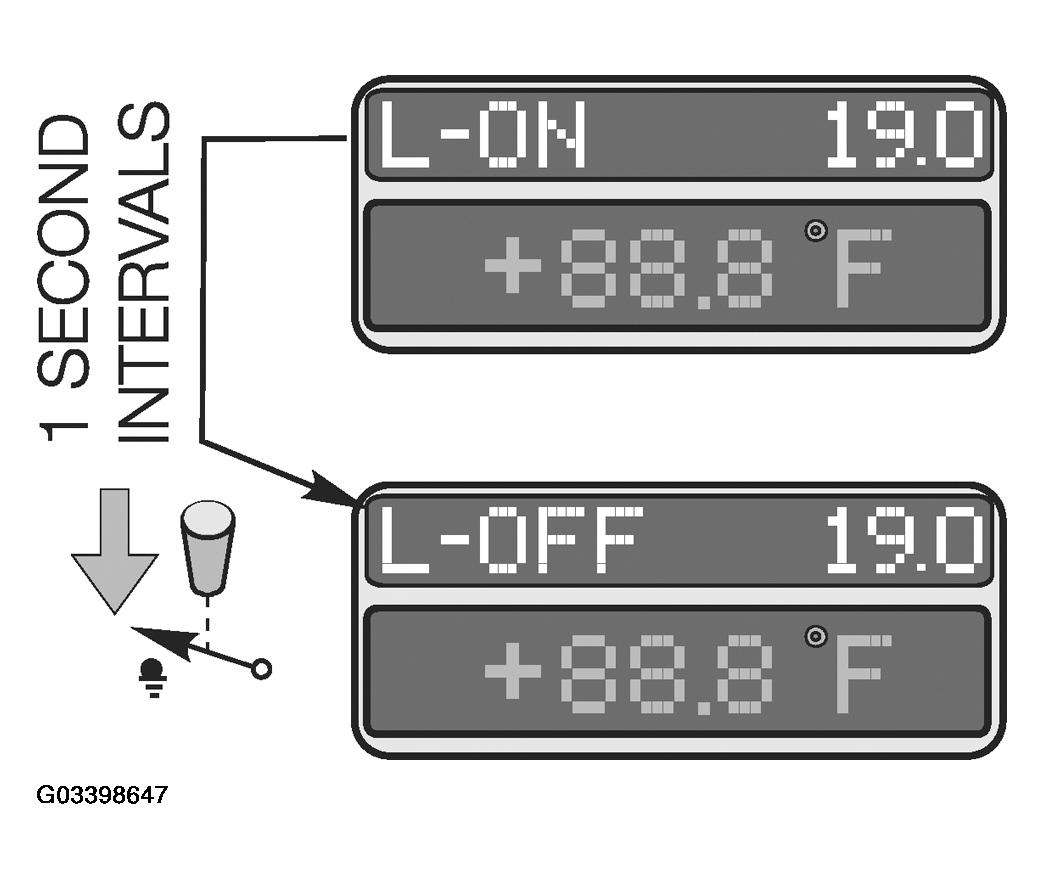

Fig 1: Displaying Changes From "L-ON" To "L-OFF" Every Second

Courtesy of BMW OF NORTH AMERICA, INC.
