Base BC/Instrument Cluster Test Functions: Notes

In addition to the fault memory and diagnostic link, the base instrument cluster contains a series of test functions that can be accessed to check various functions and values. The test functions are displayed in the mileage LCD block. There are a total of 21 test functions.

The test functions are similar to those of previous Board computers and contain similar tests.

Tests 1 & 2 are always unlocked.
Tests 3 -21 are only accessible after unlocking the test function. Test 19 is the unlock function for accessing the displays.

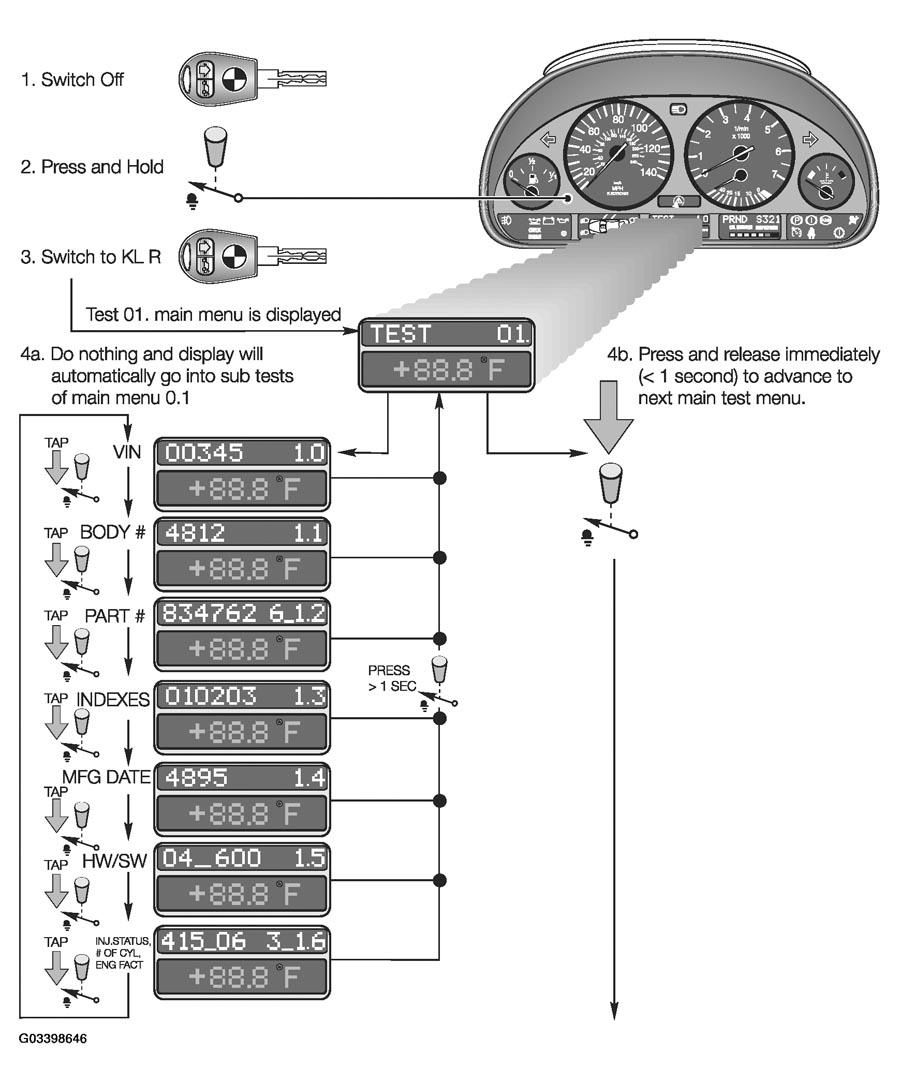

Fig 1: Identifying Base BC/Instrument Cluster Test Functions

Courtesy of BMW OF NORTH AMERICA, INC.

Scrolling through the numbered test functions is achieved by pressing the instrument cluster button when the number is displayed.

The button is either pressed momentarily (tapped) < 1 second or pressed and held for > 1 second.

This signals the BC to display the sub-tests of the displayed main test menu test menu or continue on the next main test menu.
