Removal & Installation
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove rear wheel(s).
- Remove rear brake disc. See BRAKE DISC .

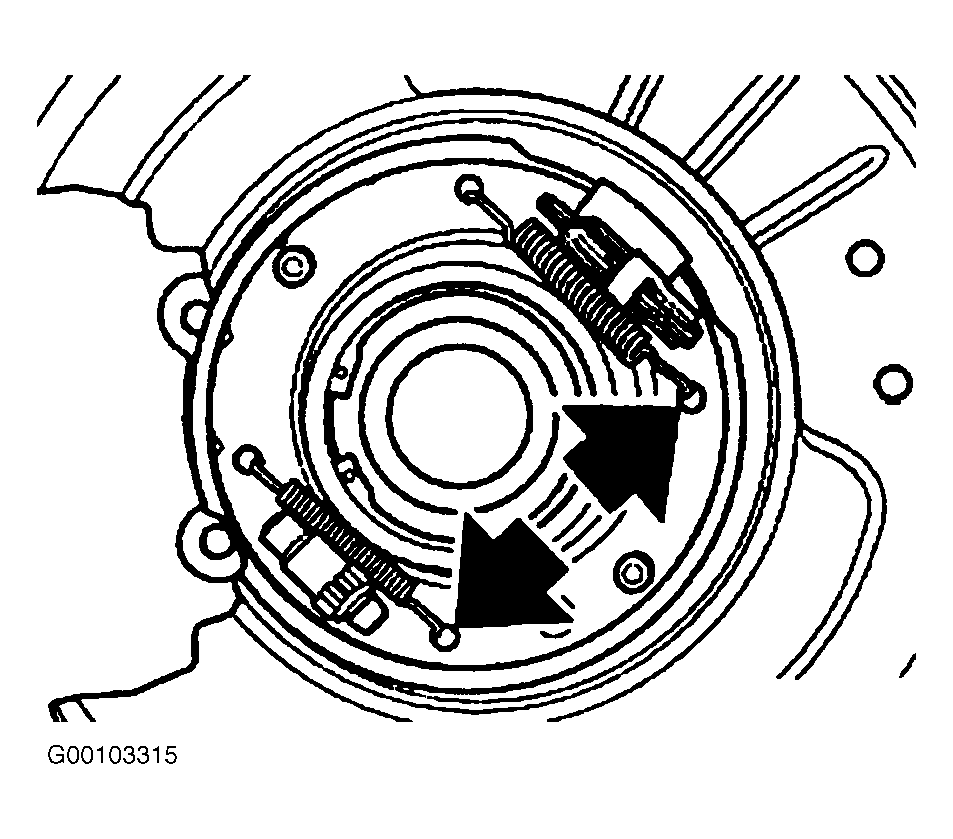

- Disconnect return springs with brake spring pliers. See Fig 1.

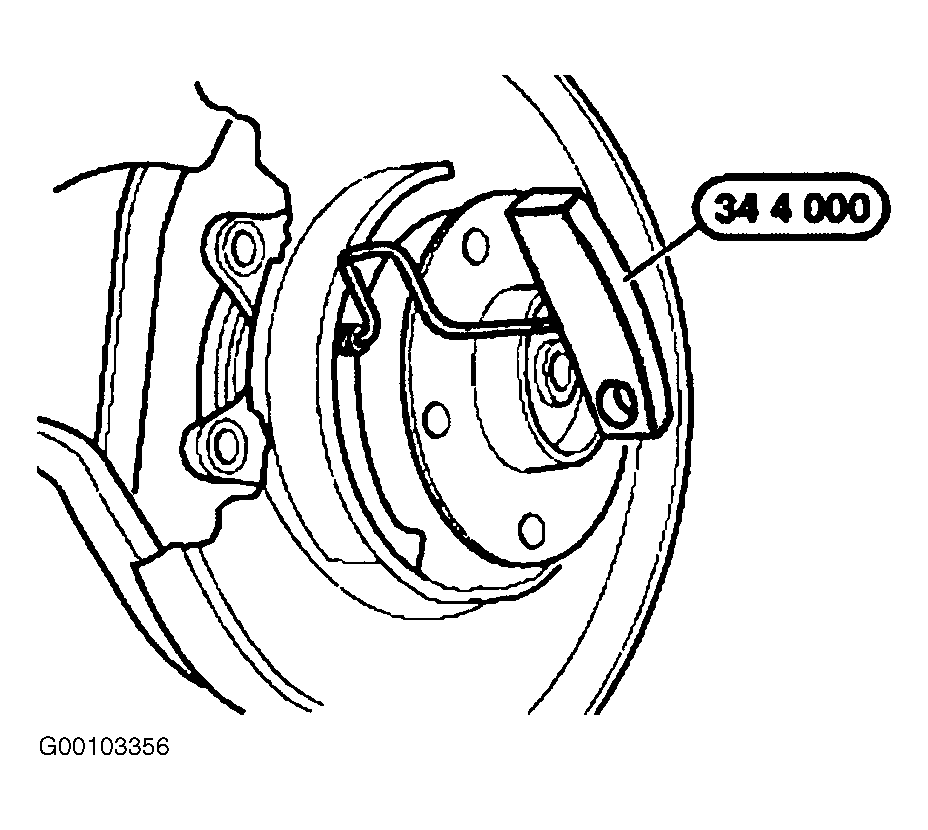

- Twist clamping pins with Special Tool (34 4 000) through 90 degrees and disconnect. See Fig 2.
- Remove brake shoes. SeeFig 2

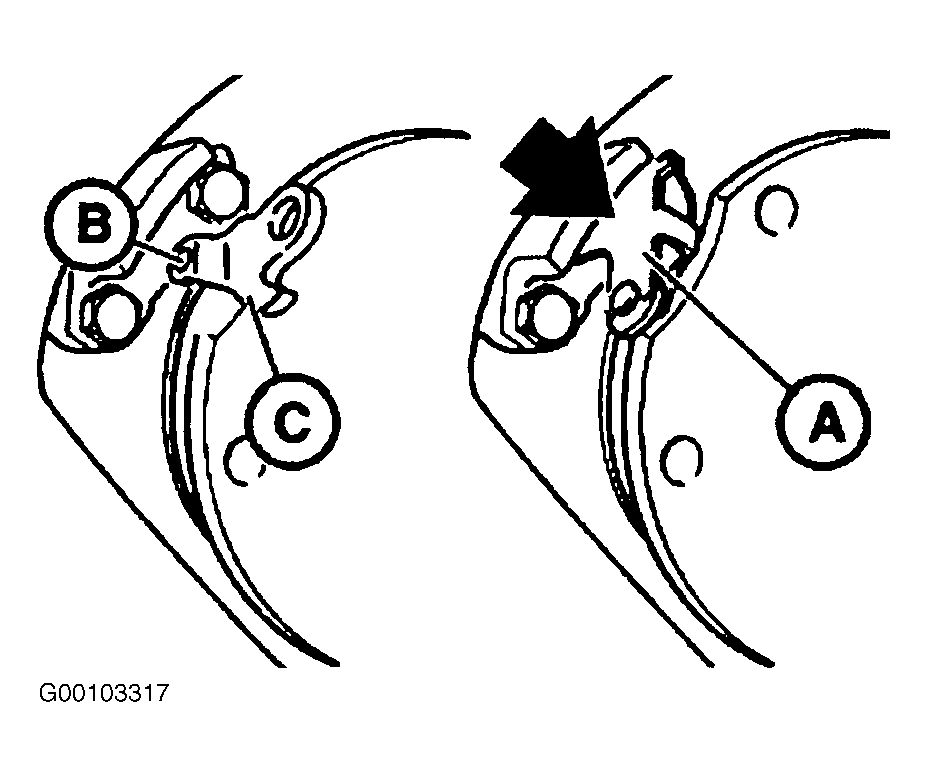

- If necessary, remove or replace expander by pulling part (A) backwards, press out pin (B), and pull out part (C). See Fig 3.

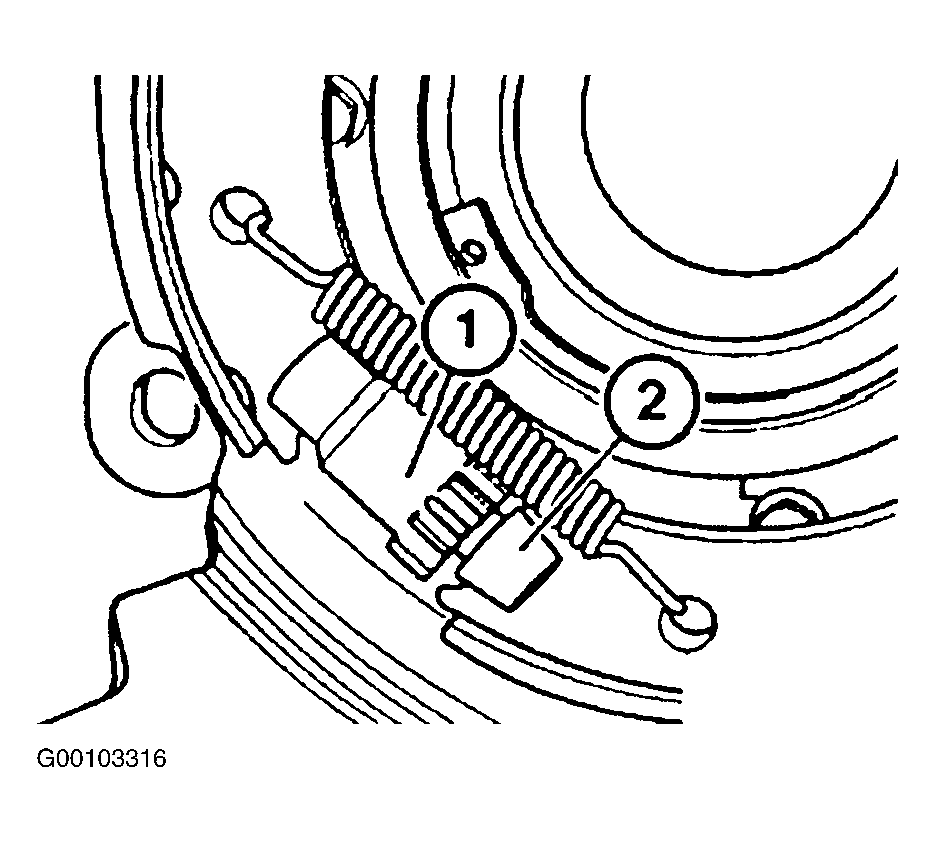

- To install, reverse removal procedure. Coat thread of adjusting bushing (1) and screw (2) with grease. Notice installation position of adjusting screws. See Fig 4.
- Check return springs and replace if necessary.
- Adjust parking brake and check operation. See PARKING BRAKE under ADJUSTMENTS.
