Removal & Installation
WARNING: This page does not describe the selected car, but rather 48 other vehicles, including the 2006 BMW M3, 2006 BMW 330xi, 2006 BMW 330Ci, 2006 BMW 325xi, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
- Draw hydraulic fluid out of container and do not re-use.
- Remove radiator. See 17 11 000 REMOVING AND INSTALLING RADIATOR (M52TU, M54, M56) .
- Disconnect quick release couplings on hydraulic lines. See HYDRAULIC LINE WITH QUICK-RELEASE COUPLING .

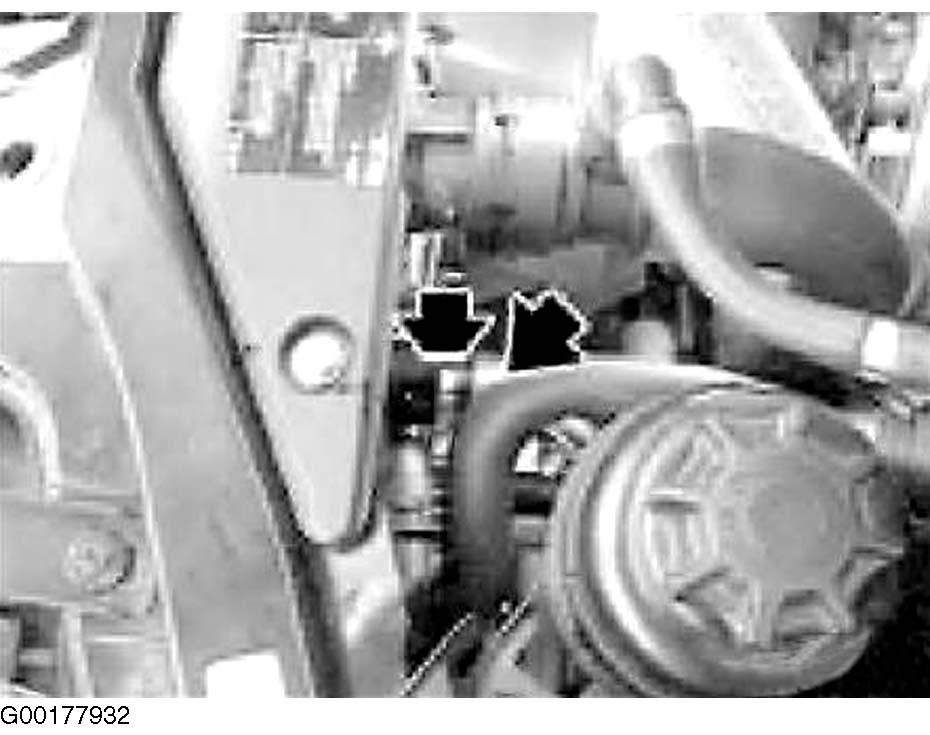

- Remove cooling coil. See Fig 1.
- To install, reverse removal procedure. Bleed power steering system. See BLEEDING POWER STEERING SYSTEM under LUBRICATION.
