Description & Operation: Inputs

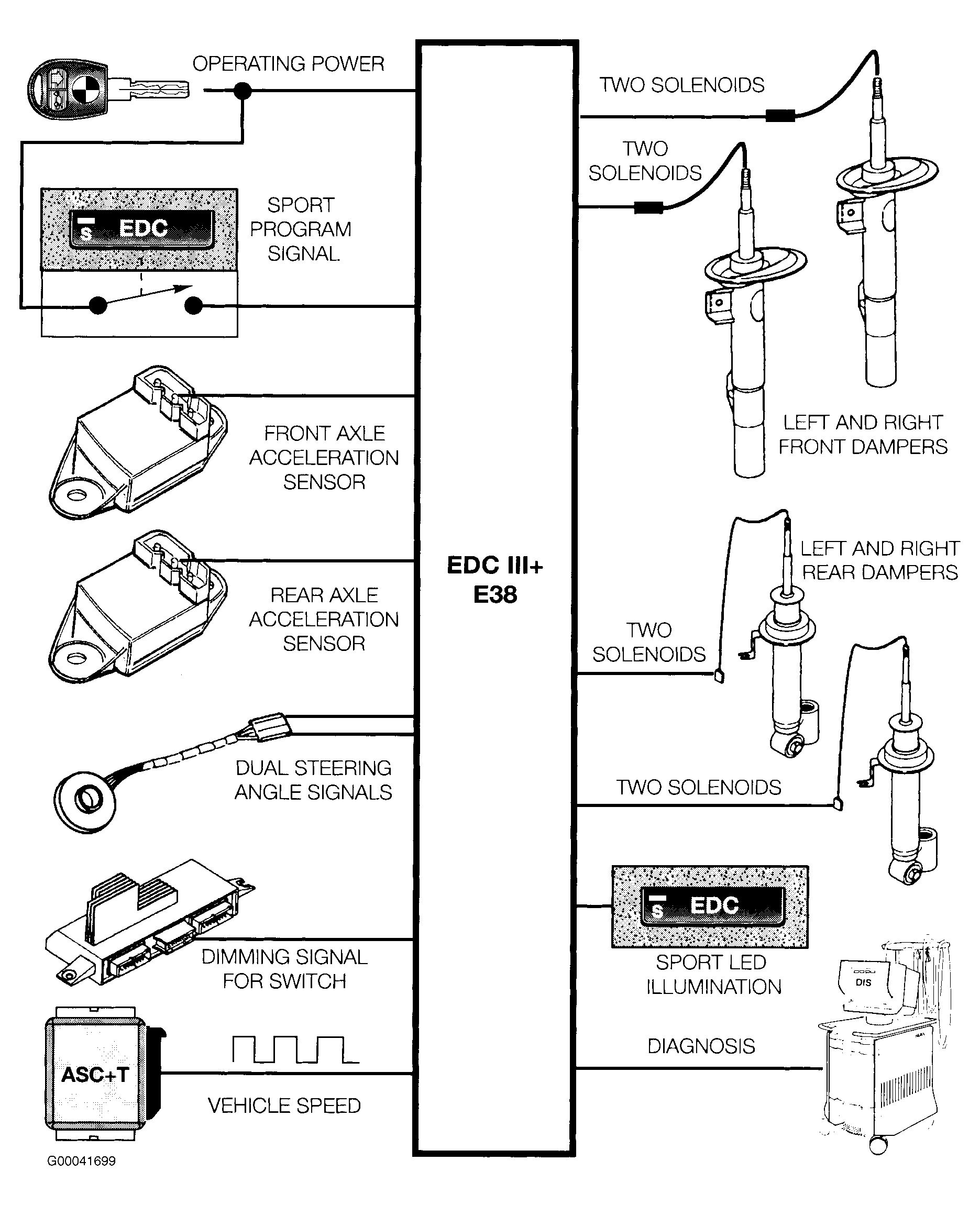

Fig 1: Input Diagram (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

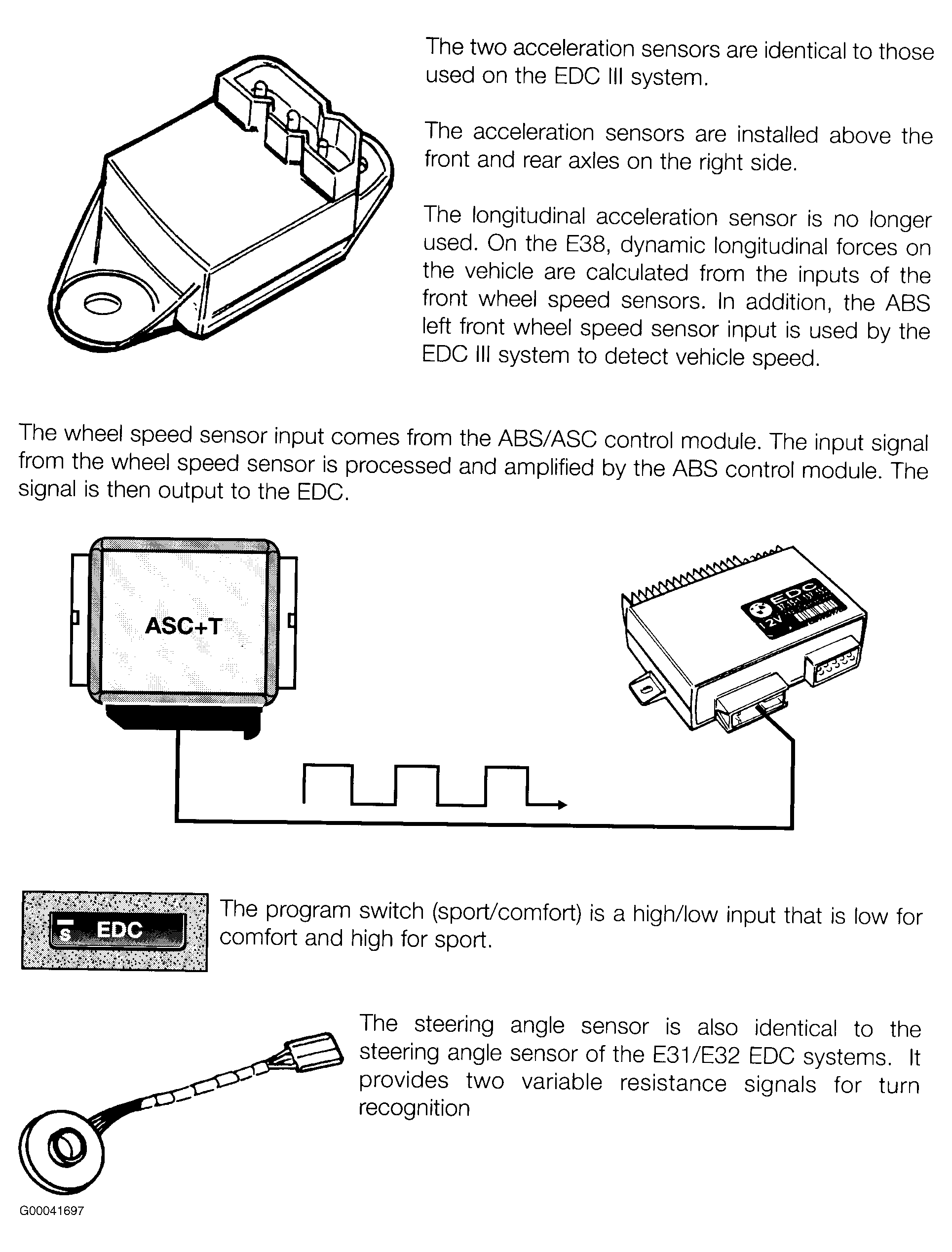

Fig 2: Input Diagram (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
