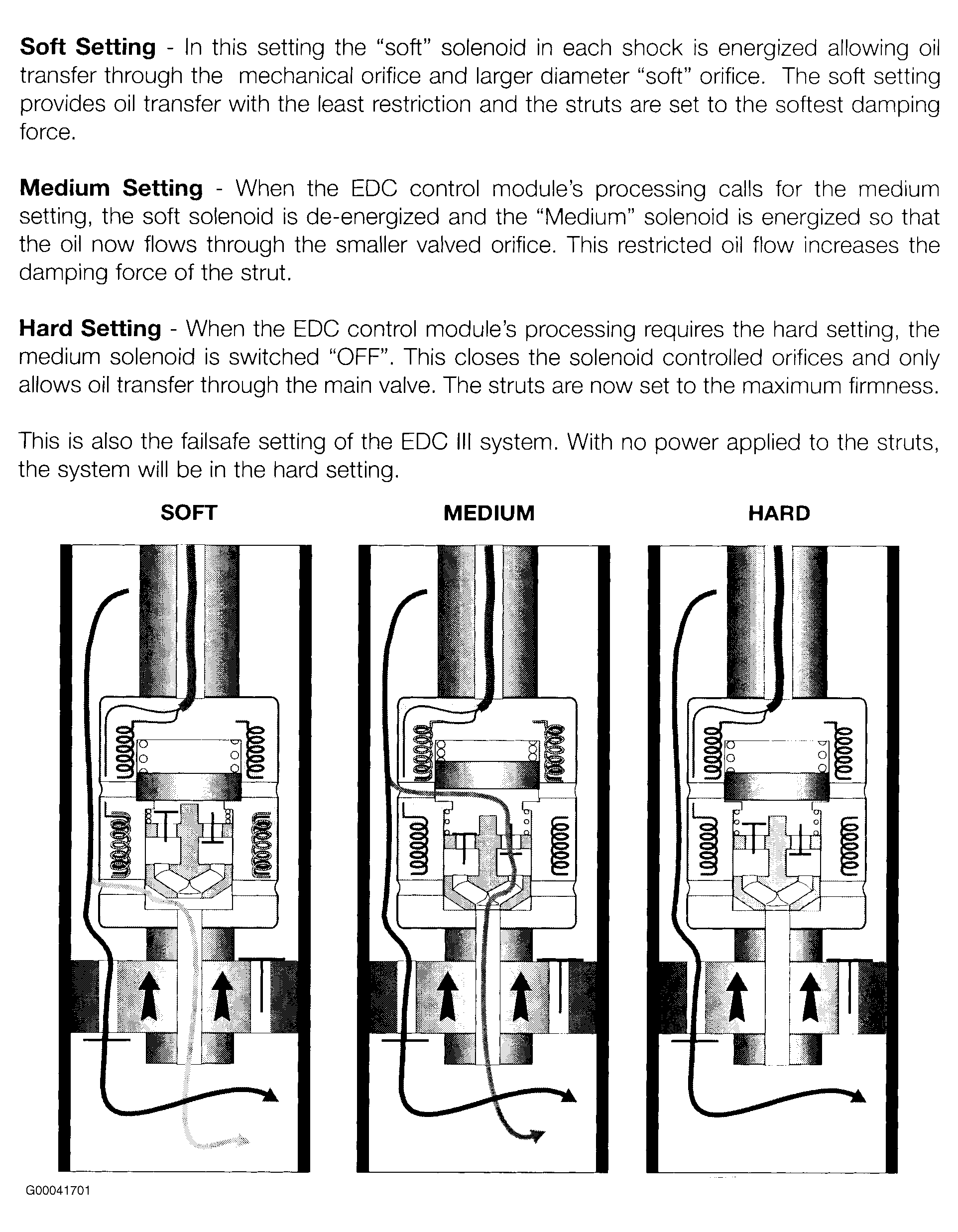

Damper Settings
There are three valves for oil transfer in the strut piston. the first is the main oil transfer valve. This valve is always open. The second and third valves are controlled by the EDC solenoids. Through the two different orifices, the solenoids can vary the flow of hydraulic oil transfer thereby regulating the damping force.
