65 52 510 Removing and installing on-board monitor

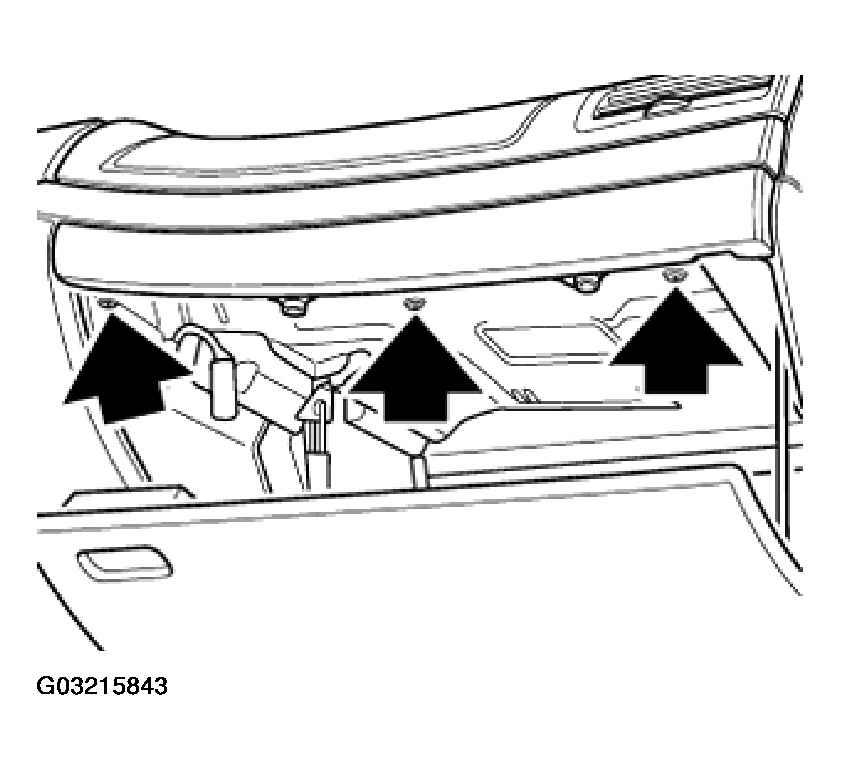

Release screws.

Fig 1: Releasing Screws

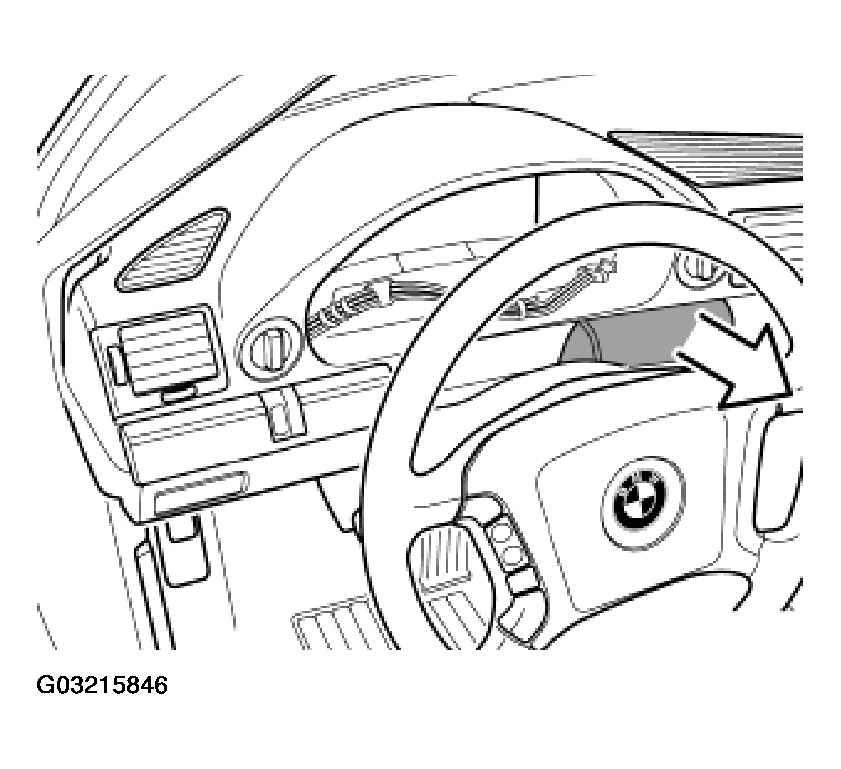

Release upper plastic nuts and remove wooden finisher.

Fig 2: Releasing Upper Plastic Nuts & Removing Wooden Finisher

Installation:

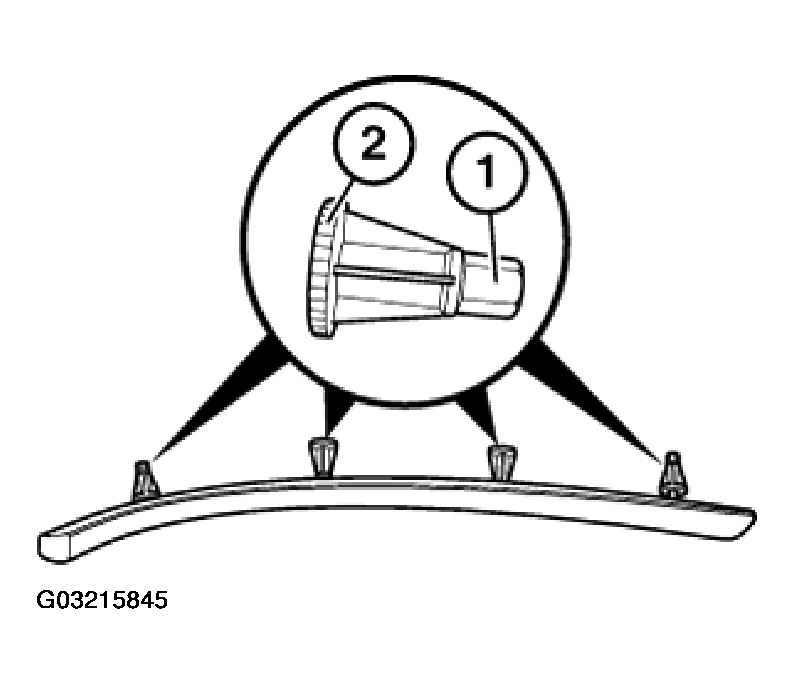

Fit outer plastic nuts with knurling (2) facing trim and inner plastic nuts with hexagon heads (1) facing trim (risk of damage to passenger airbag).

Fig 3: Identifying Plastic Nuts With Knurling Facing Trim

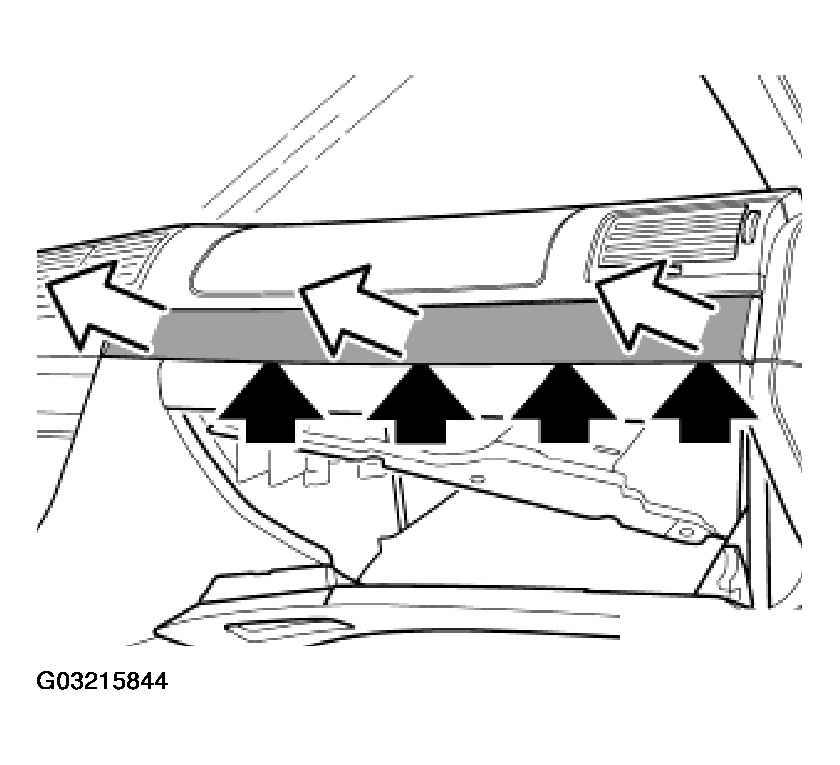

Remove top left wooden finisher by pulling upwards.

Fig 4: Removing Top Left Wooden Finisher By Pulling Upwards

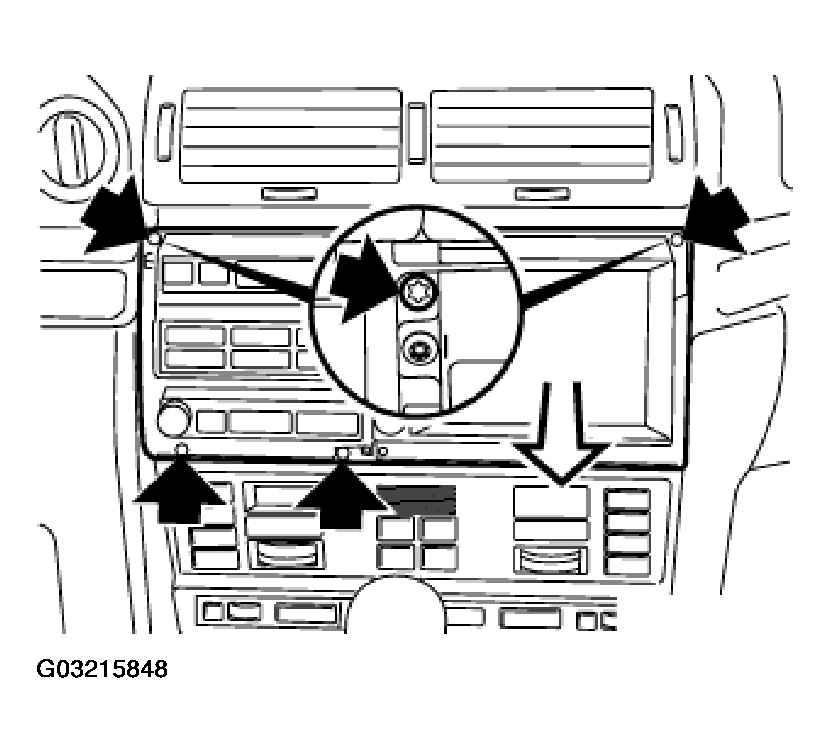

Remove screws and take off plate.

Fig 5: Removing Screws & Take Off Plate

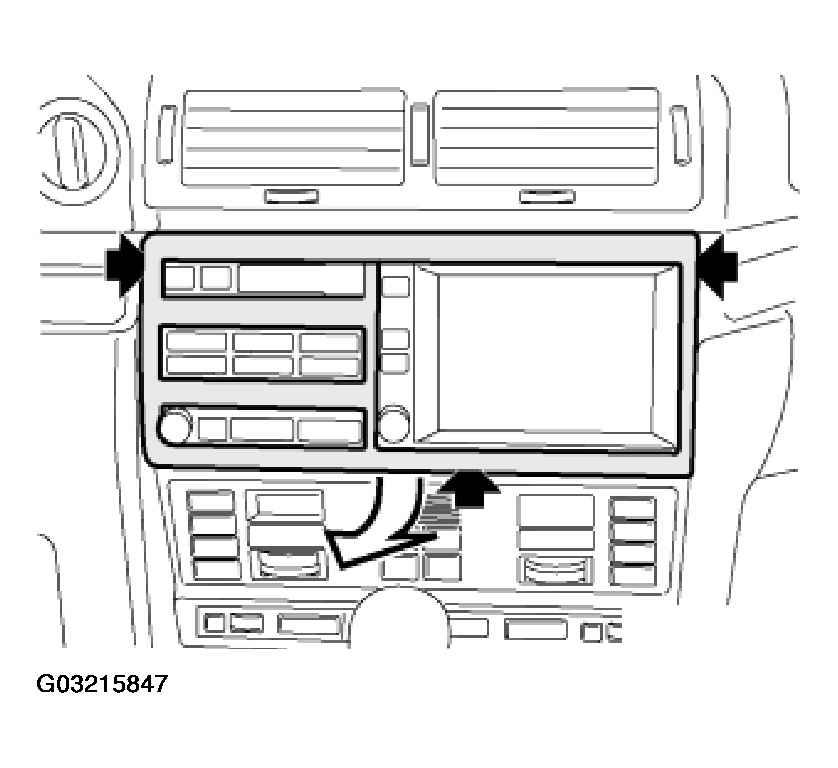

Unfasten screws and pull on-board monitor forwards to remove.

Fig 6: Unfastening Screws & Pulling On-Board Monitor Forwards

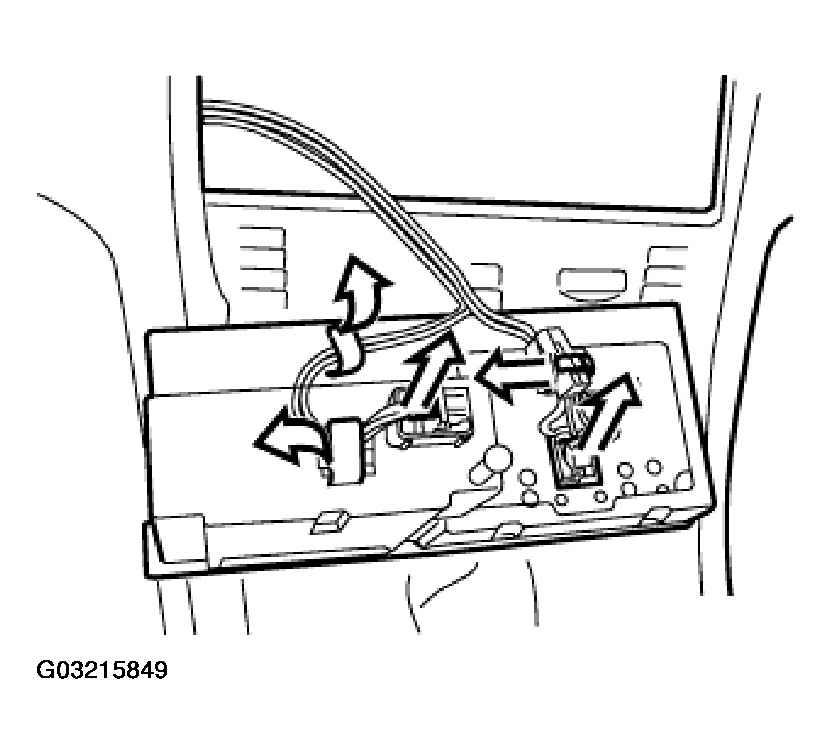

Remove plug and unfasten wiring harness from clips.

Fig 7: Removing Plug & Unfastening Wiring Harness From Clips
