Battery in luggage compartment under spare wheel

Remove spare wheel.

Release screws.

CAUTION: Do not kink air pipes.

Set air supply system (1) to one side.

Follow instructions for disconnecting and connecting battery

Disconnect battery negative lead.

Disconnect supply cable (1) for vehicle electrical system.

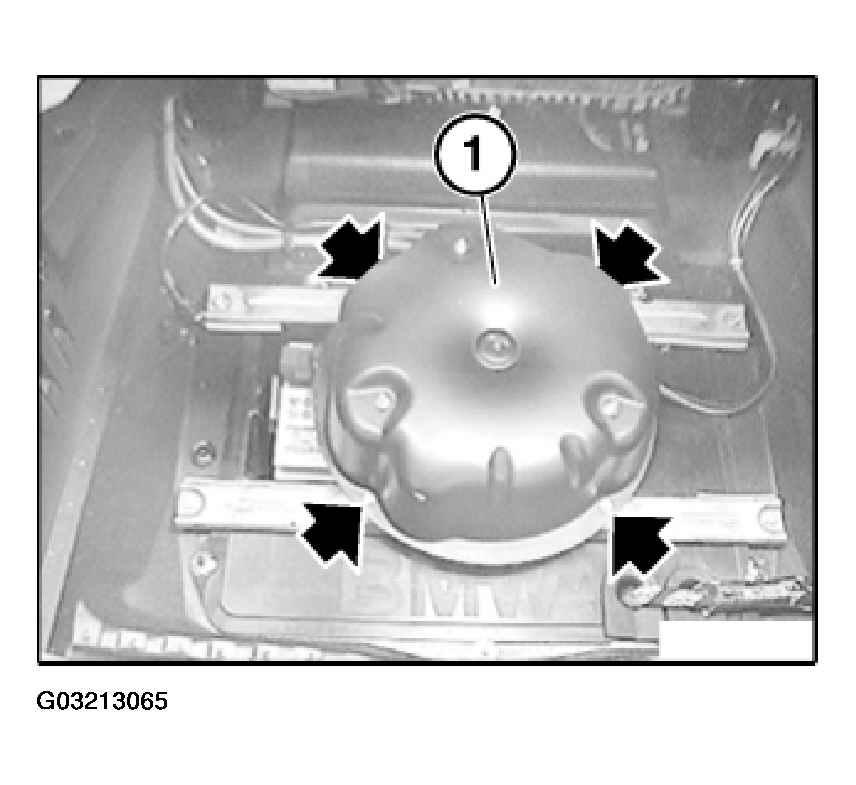

Fig 1: Releasing Screws And Removing Air Supply System
G03213065

Installation:

  1. Remove faulty fuses and carry out troubleshooting.

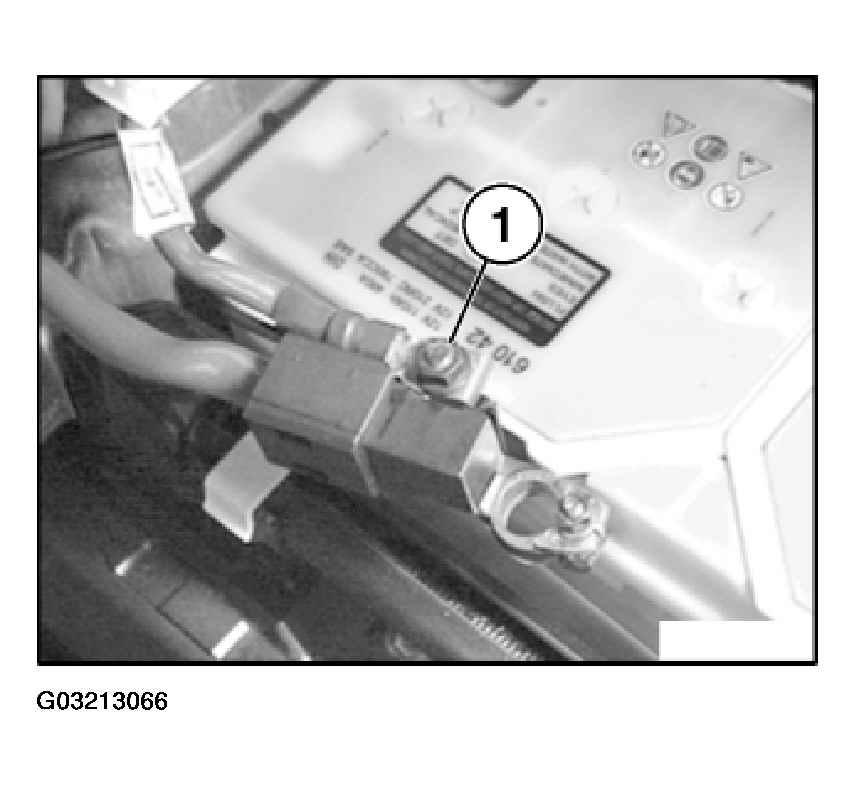

Fig 2: Disconnecting Vehicle Electrical System Supply Cable
G03213066
CAUTION: Pay attention to interface.
The repair cable is always a standard length.
The heavy-current connector of the repair cable has a larger diameter than the battery positive lead.
In some Series (e.g. E46 touring), the heavy-current connector of the repair cable can lead to installation problems.
This is the case when the interface is in the area of the close-fitting trim panels.
Find matching interface (e.g. approx. 10 cm behind rear seat back rest in E46 touring).

Lay repair cable parallel to battery positive lead.

Mark interface of battery positive lead at end of repair cable.

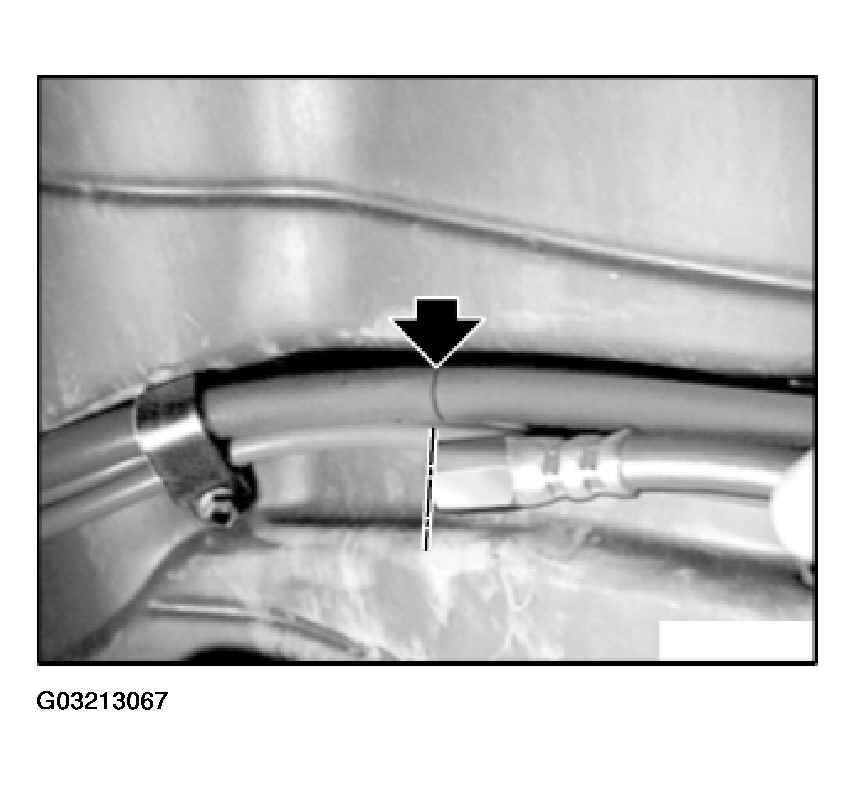

Fig 3: Installing Repair Cable Parallel To Battery Positive Lead
G03213067

Release cable ties (1).

Disconnect plug connection (2).

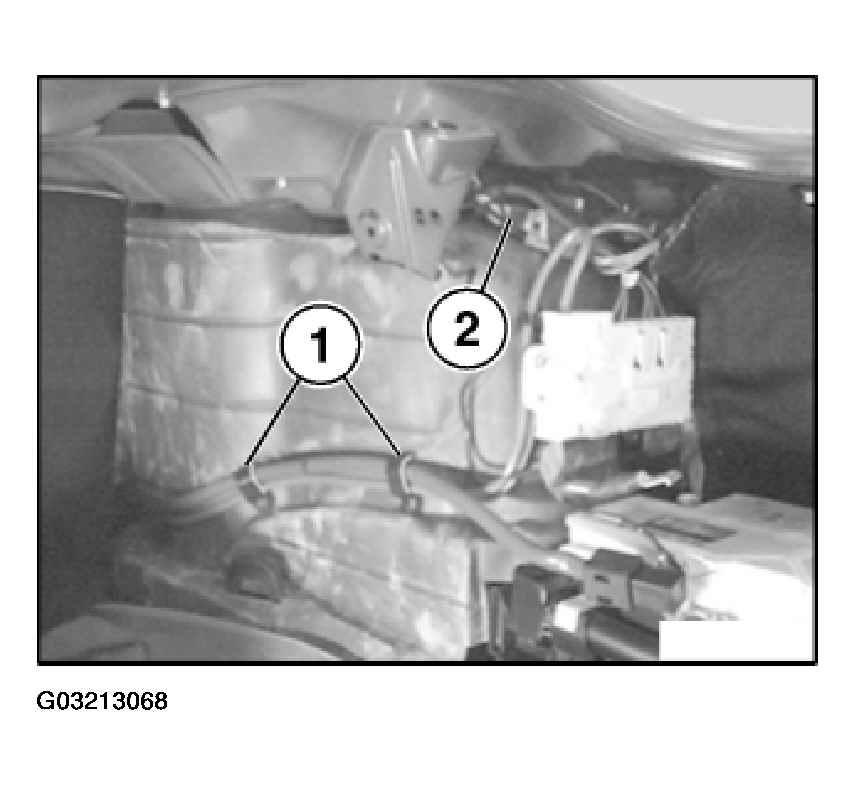

Fig 4: Releasing Cable Ties And Disconnecting Plug Connection
G03213068
CAUTION: Do not use bolt cutters or similar tools to cut through the cable.
A cable end that has been squashed flat will no longer fit into the clamping sleeve.

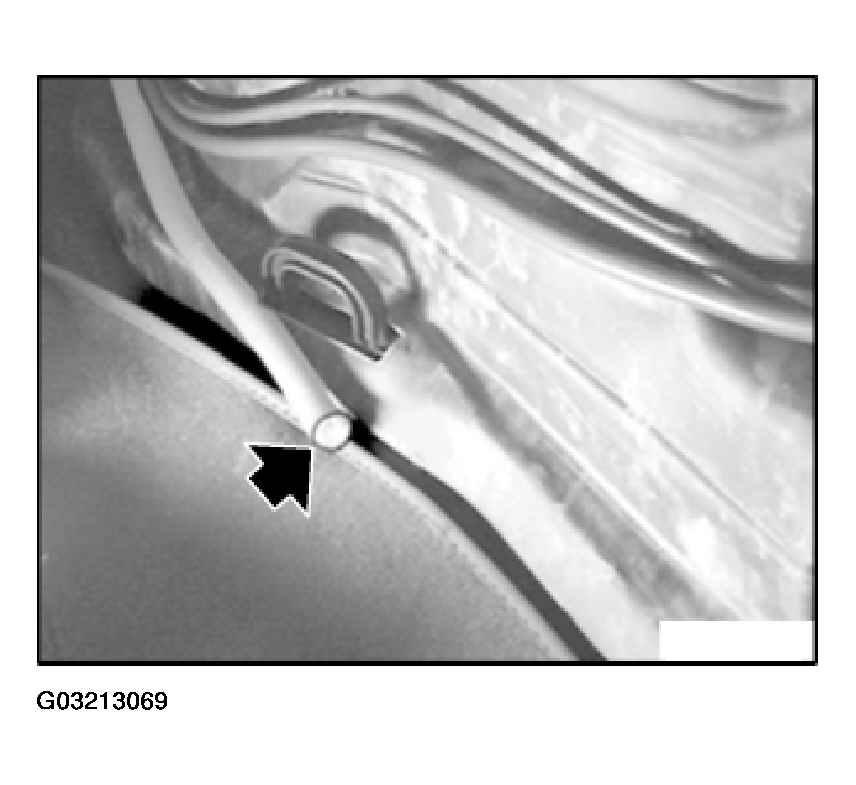

Saw through battery positive cable at marked point with an iron saw.

Fig 5: Locating Cable
G03213069

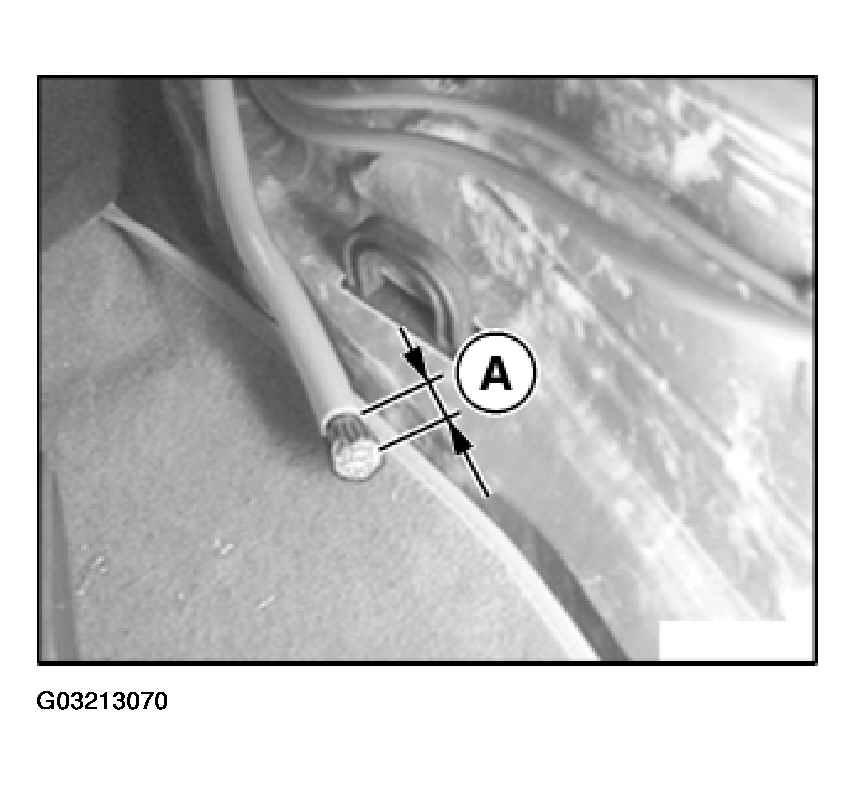

Strip insulation - length (A) - from cable end.

Distance (A) = 15 mm.

Fig 6: Identifying Striping Insulation - Length
G03213070

Push heavy-current connector (1) over stripped cable end and screw into position.

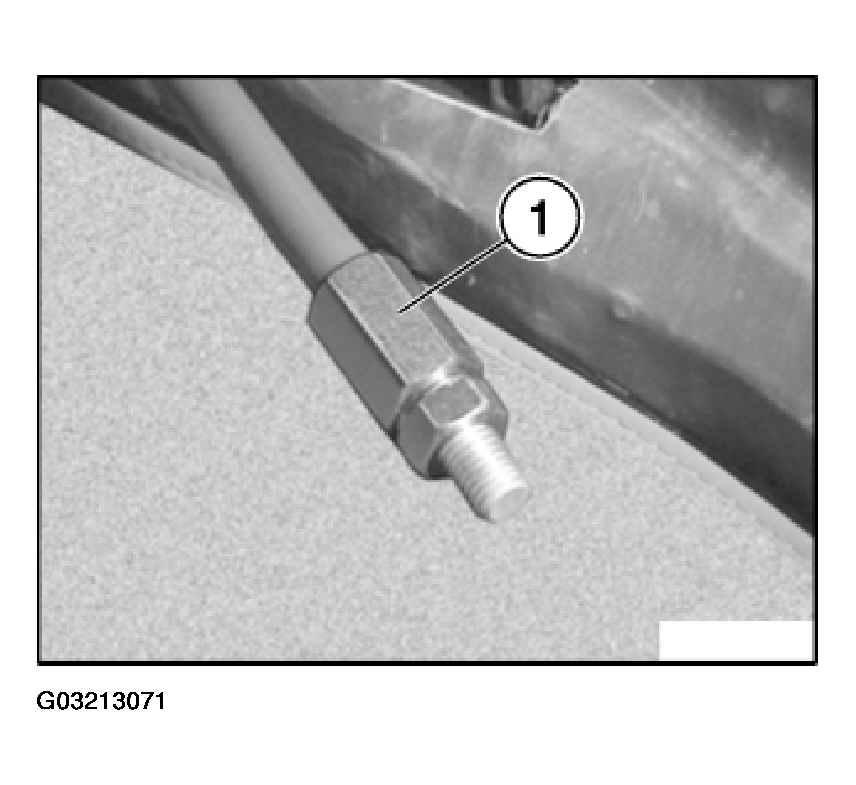

Fig 7: Installing Heavy-Current Connector Over Stripped Cable End
G03213071

Push shrink-fit hose (3) over repair cable.

Screw threaded sleeve (1) of repair cable (2) to heavy-current connector.

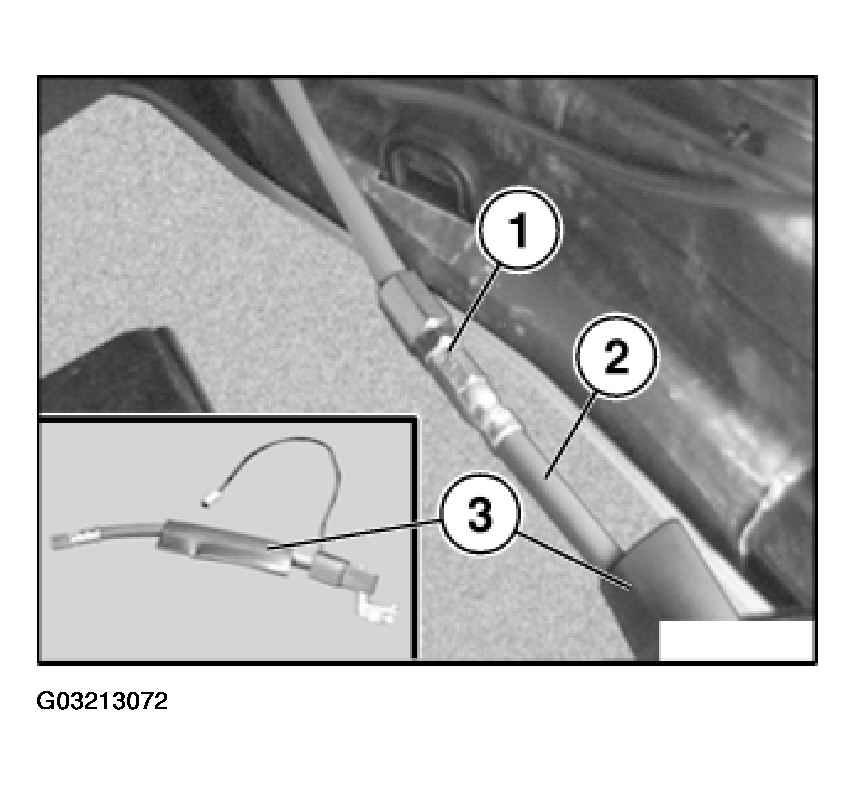

Fig 8: Installing Shrink-Fit Hose Over Repair Cable
G03213072

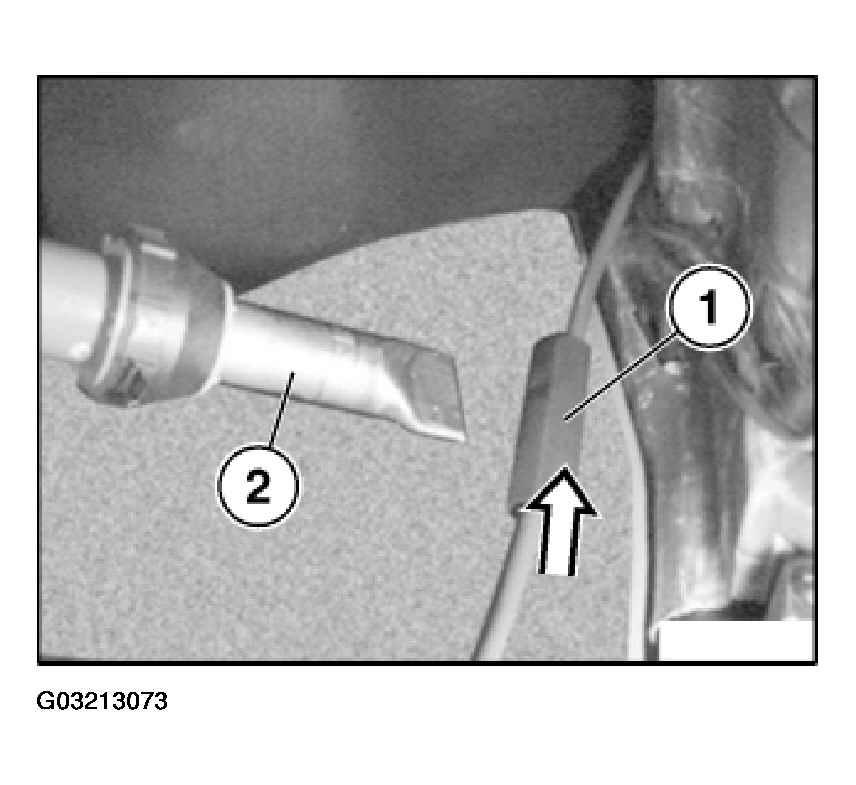

Push shrink-fit hose (1) over connecting point and shrink on with a hot-air blower (2).

Fig 9: Installing Shrink-Fit Hose Over Connecting Point
G03213073
NOTE: Heat up shrink-fit hose until it has settled completely around the connection point.

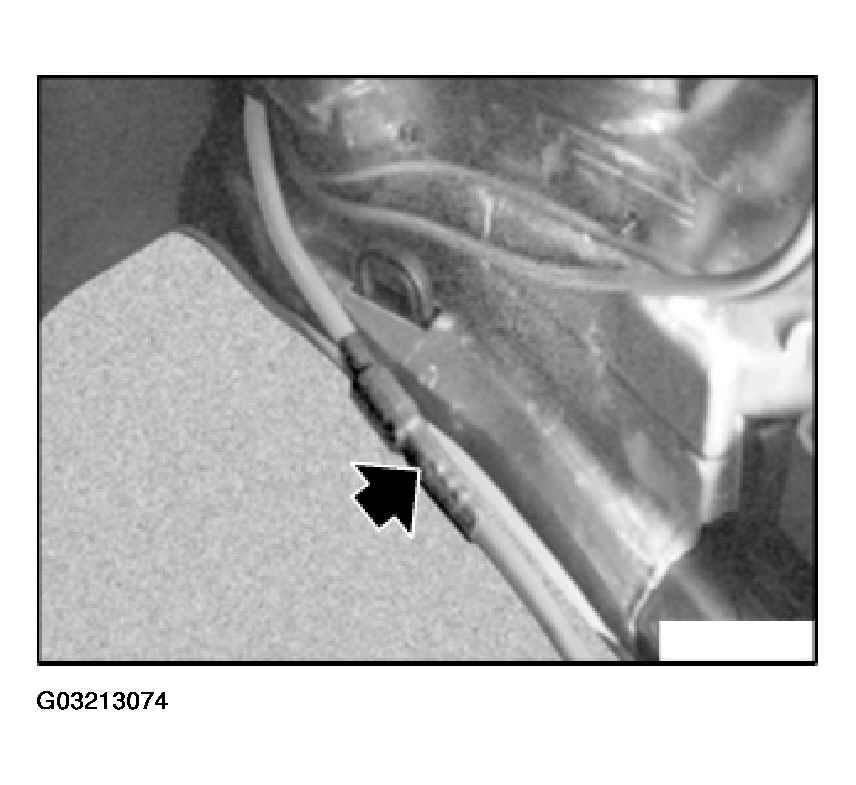

Fig 10: Identifying Shrink-Fit Hose
G03213074

When laying the repaired battery positive cable, observe the following:

NOTE: Offsetting cutting line by approx. 10 cm produces excess length of battery positive lead (1).
Lay battery positive lead (1) without kinks or abrasions. (Shown on E46 touring.)

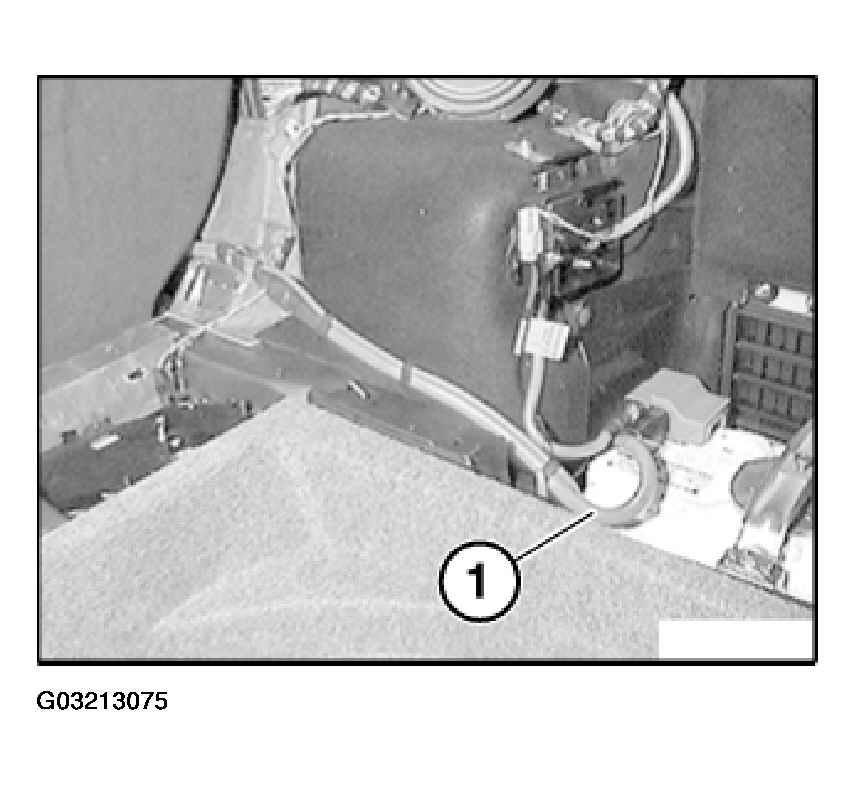

Fig 11: Installing Battery Positive Lead
G03213075
