12 42 520 Removing and installing or replacing positive battery wire (between alternator and positive battery support point on cylinder head cover) (M73)

Observe safety instructions for handling vehicle battery.

Remove battery negative line.

Remove complete left intake filter housing.

Unfasten nut.

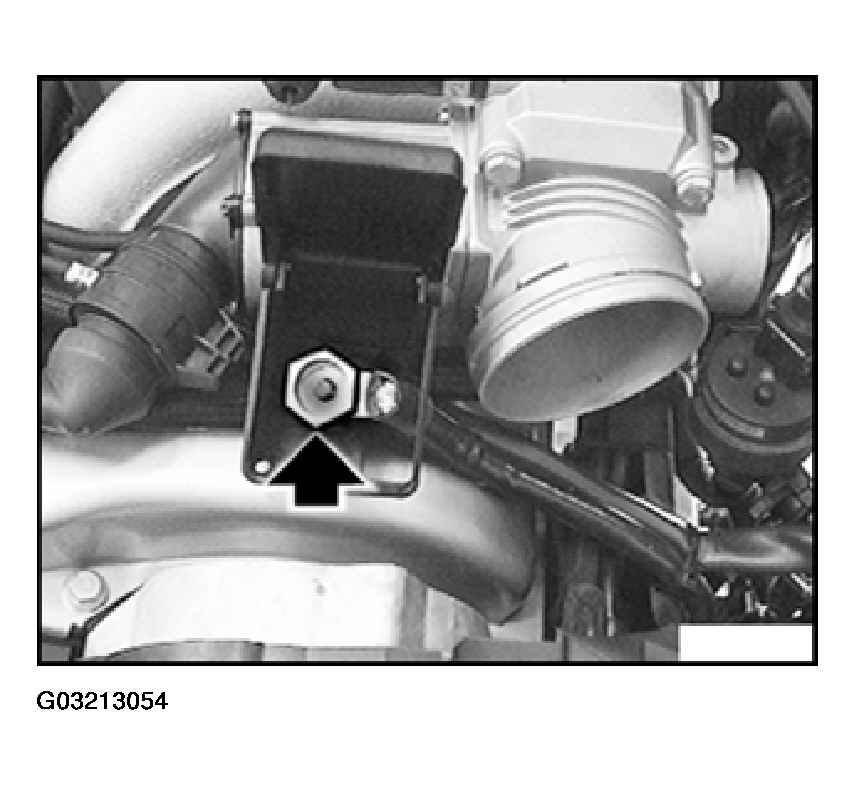

Fig 1: Releasing Nut

Unfasten screws. Remove positive battery terminal with bracket.

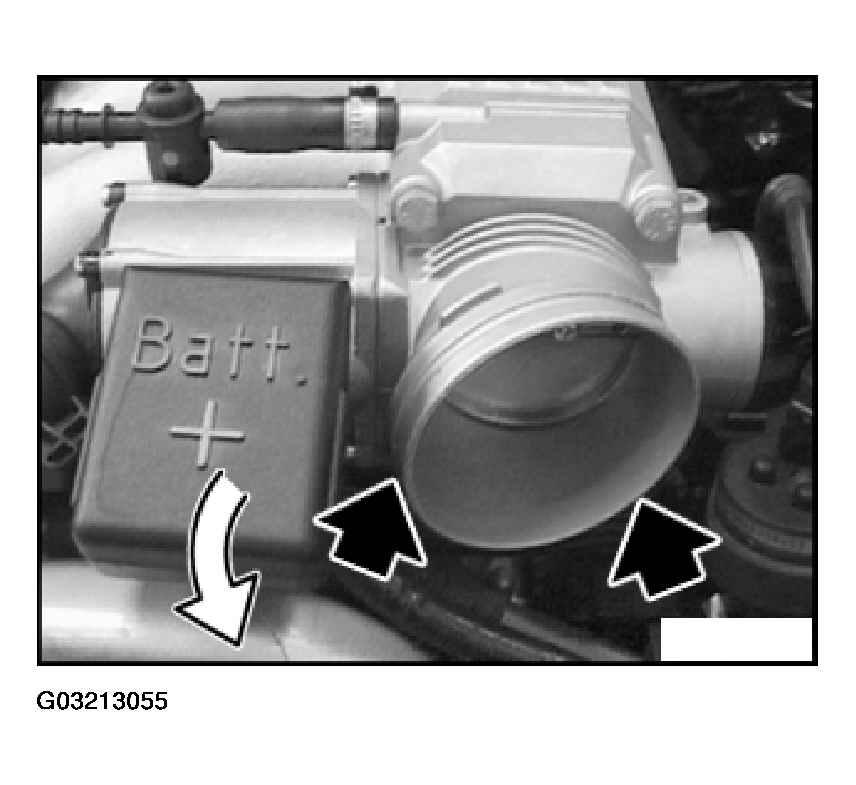

Fig 2: Removing Positive Battery Terminal With Bracket

Remove bracket with tank vent valves.

Remove tank vent valves (1 and 2) from bracket.

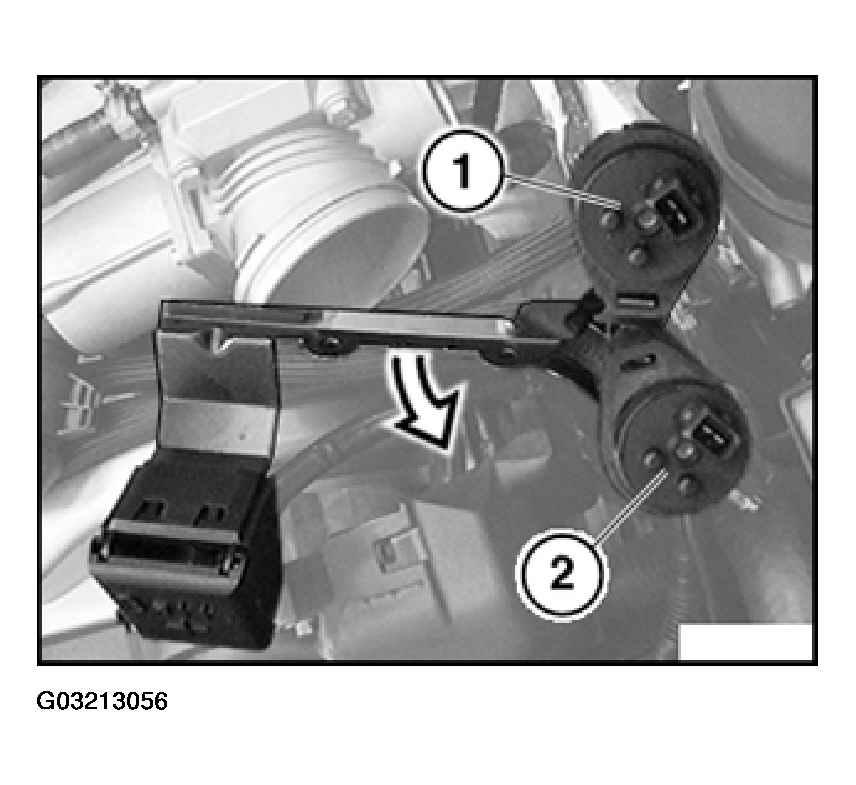

Fig 3: Removing Tank Vent Valves From Bracket

Remove lead (1).

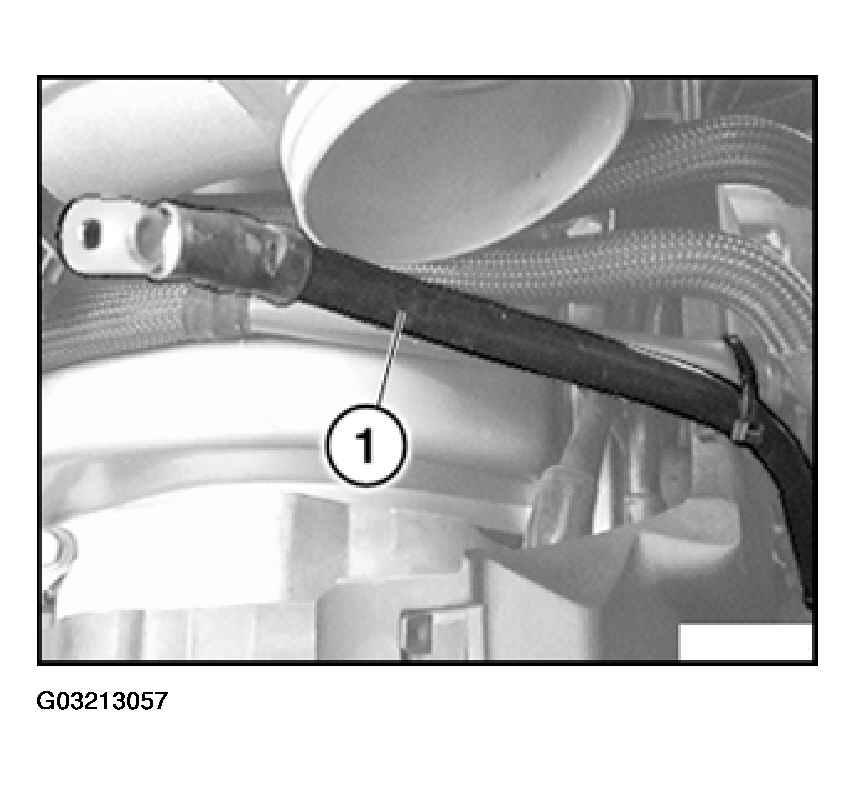

Fig 4: Removing Lead

Installation:

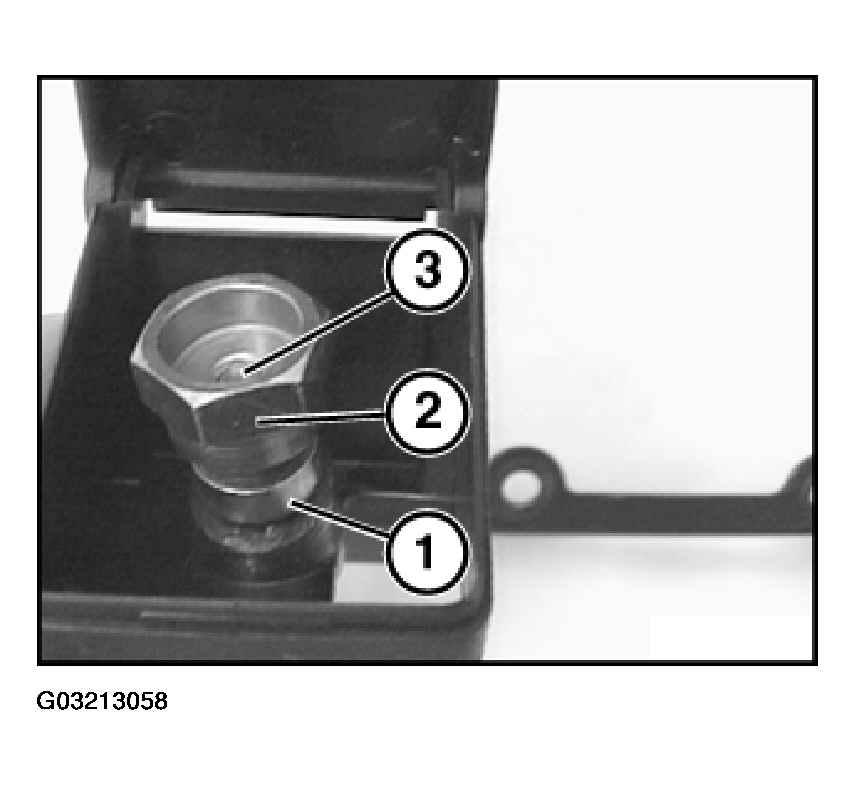

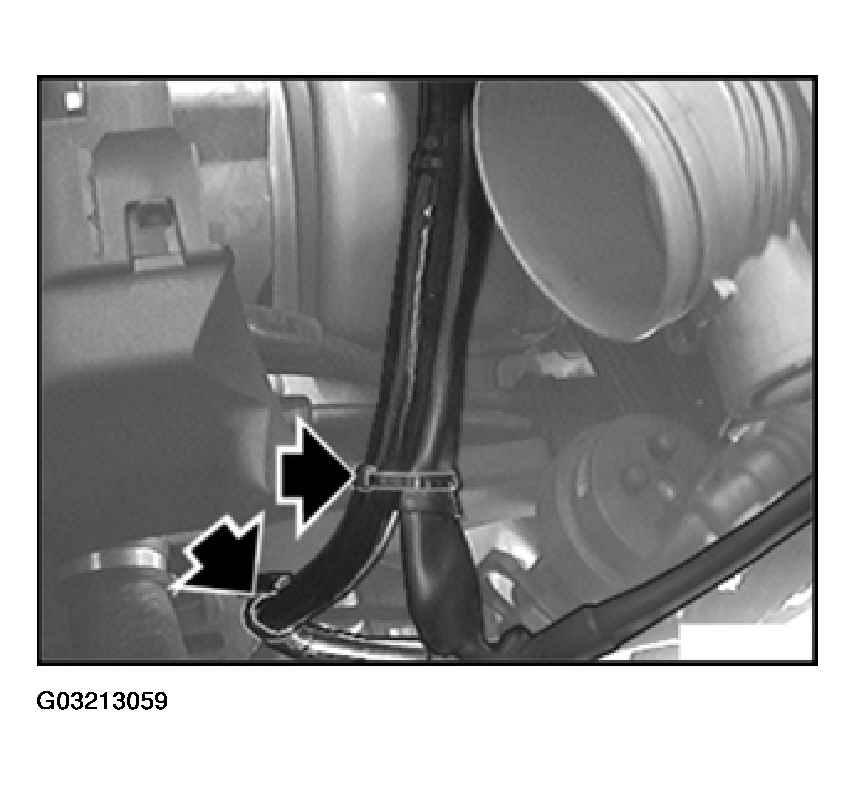

Fig 5: Identifying Positive Battery Lead Fitting Position

Unfasten cable connector.

Remove centre of splash guard.

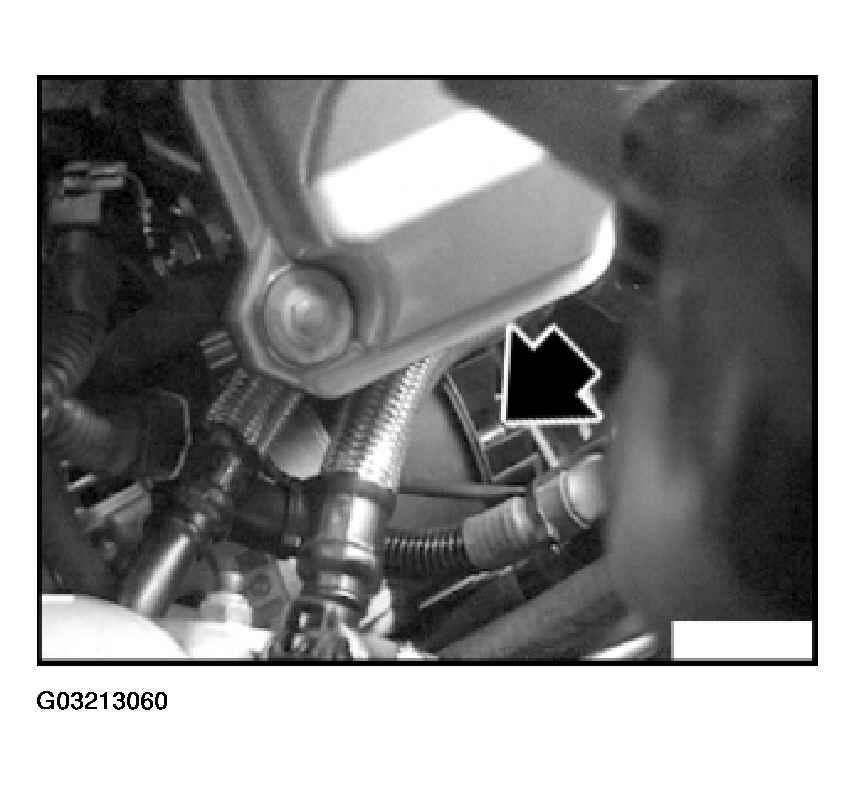

Fig 6: Releasing Cable Connector

Disconnect alternator connections.

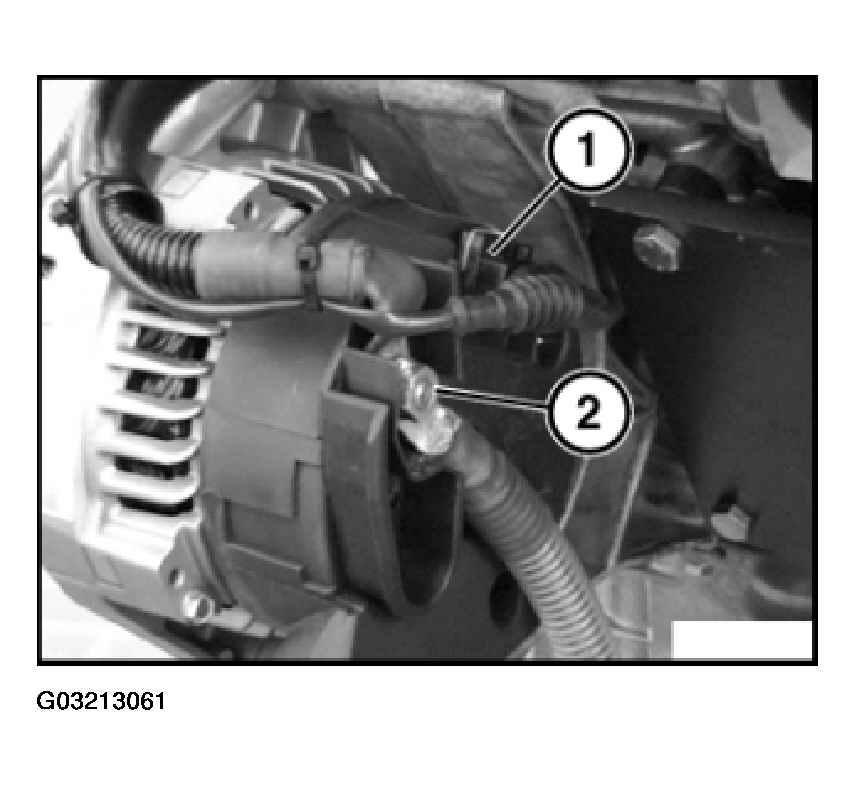

Fig 7: Disconnecting Alternator Connections

Connections illustrated here on removed alternator.

Unfasten plug connection (1).

Unfasten nut (2).

Tightening torque, refer to ENGINE - TIGHTENING TORQUES .

Remove positive battery line.

Fig 8: Disconnecting Plug Connection
