51 43 251 Removing and installing or replacing trim from rear left or right roof pillar

WARNING: Version with head airbag:
Follow safety instructions for working on cars with airbag systems,
refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS

CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head air bag).

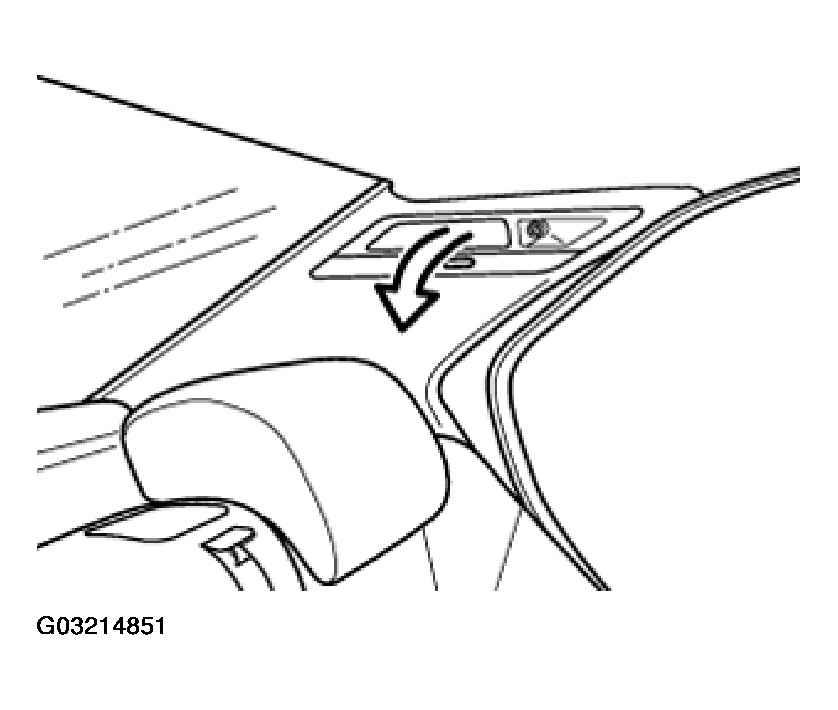

Lever out top interior light,

take out towards top and

disconnect plug connection.

Fig 1: Removing Out Top Interior Light

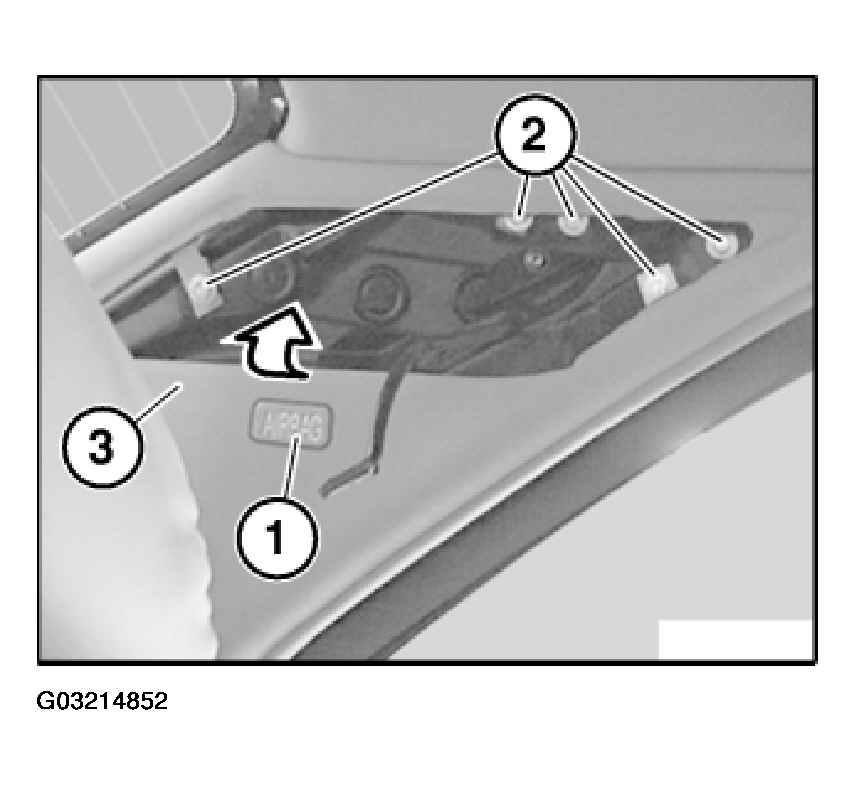

Version with head airbag in rear compartment:

Can be identified by airbag emblem (1).

Unfasten screws (2).

Take out panel (3) towards inside at top.

Installation:

Fig 2: Removing Panel (Version With Head Airbag In Rear Compartment)

Version without head airbag in rear compartment:

Unfasten screws.

Take out panel towards inside at top.

Installation:

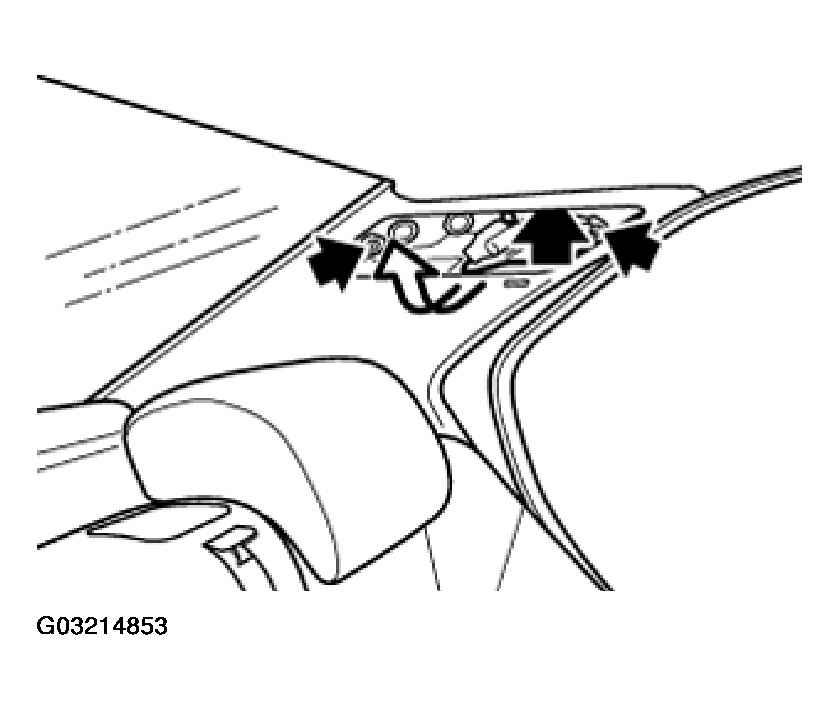

Fig 3: Removing Panel (Version Without Head Airbag In Rear Compartment)

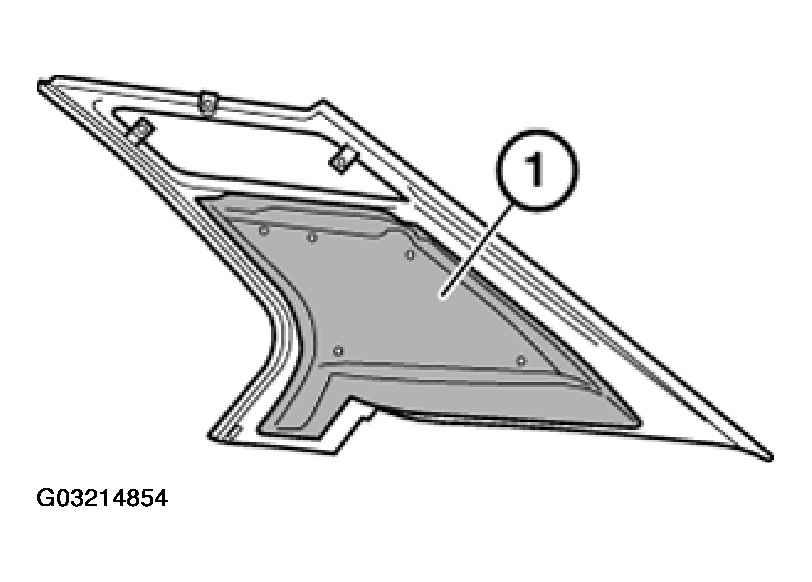

Only replacing:

Remove insulating mat (1) and glue to new C-pillar finisher.

Fig 4: Removing Insulating Mat & Glue To New C-Pillar Finisher
