51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

Remove and install front entrance cover strip,

refer to 51 47 000 REMOVING AND INSTALLING / REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP

Remove and install rear entrance cover strip,

refer to 51 47 030 REMOVING AND INSTALLING/REPLACING THE REAR (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP

Move front seat as far forward as possible.

Partially remove mucket from B-pillar finisher.

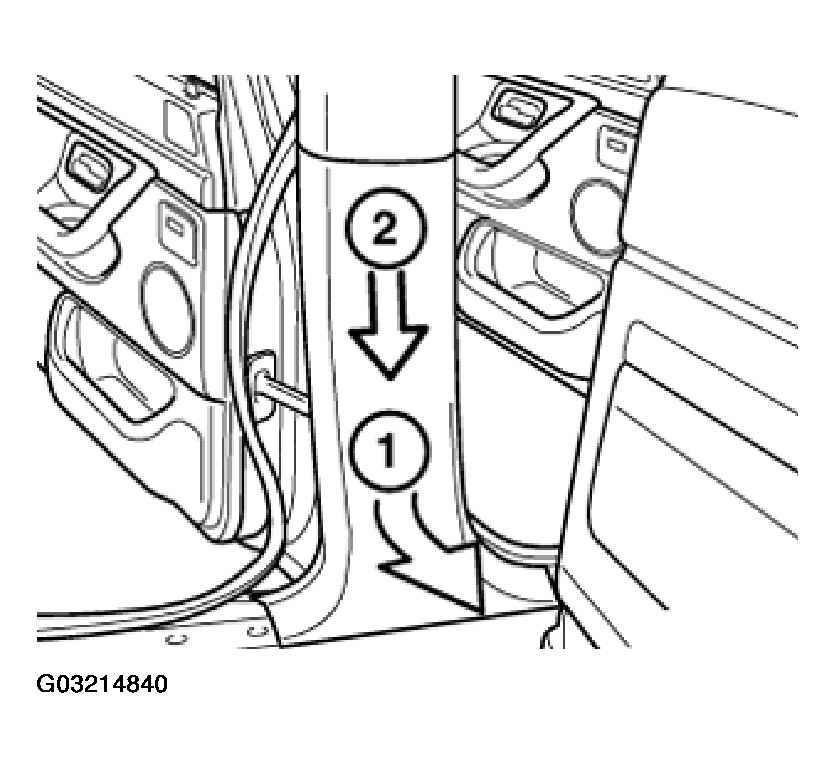

Unclip trim for door pillar at bottom towards interior (1) and remove towards bottom (2).

Installation:

1. If necessary, replace damaged clips and/or grommets.

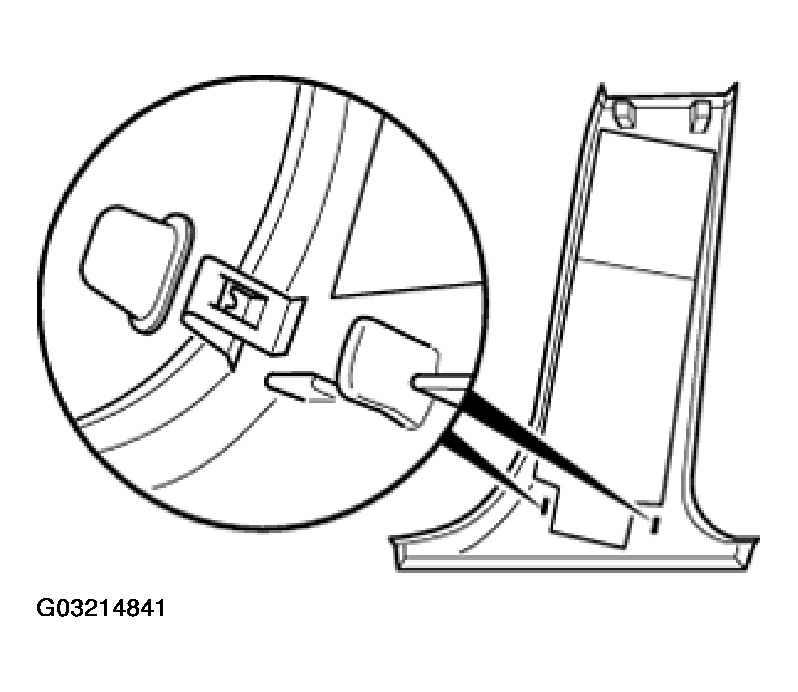

   Fig 2: Identifying Clips & Grommets



L7 only:

Partially remove mucket from B-pillar finisher.

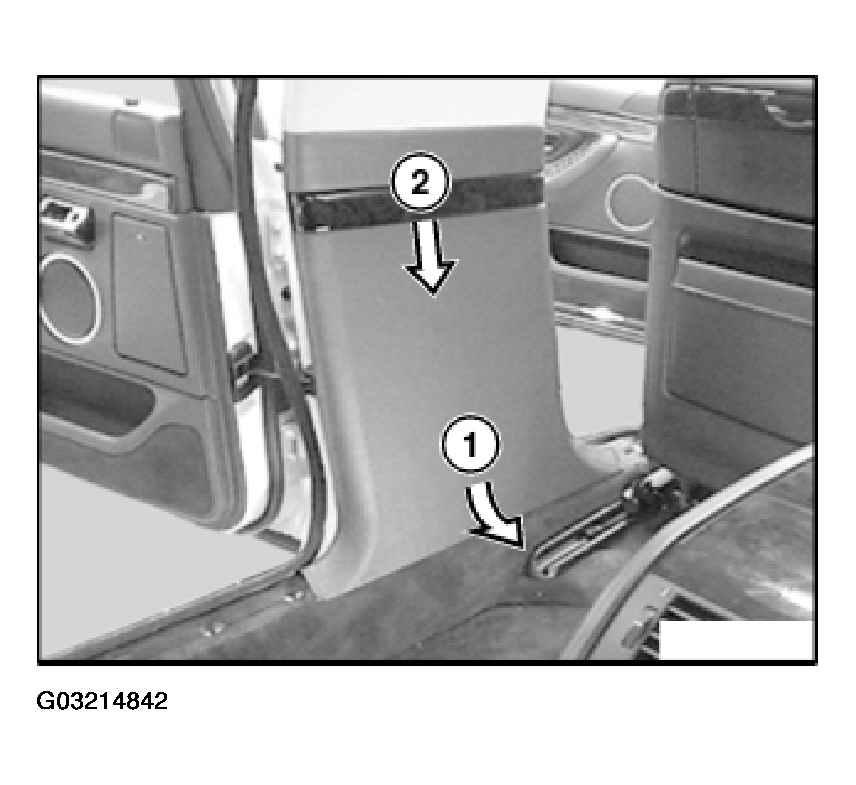

Unclip trim for door pillar at bottom towards interior (1) and remove towards bottom (2).

L7 only:

Installation:

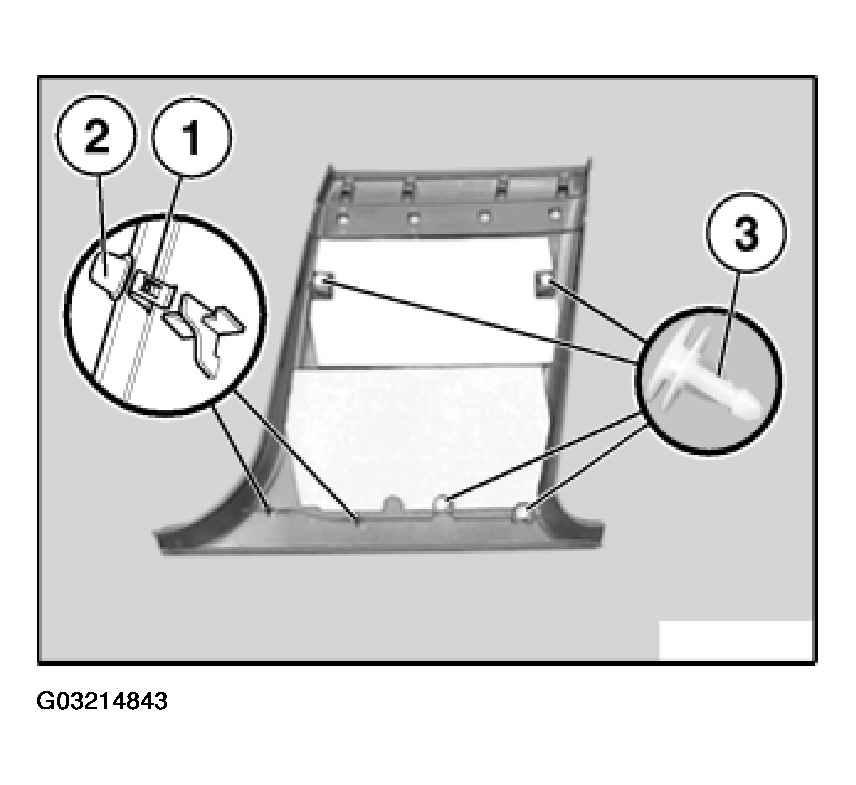

1. If necessary, replace faulty clamps (1), grommets (2) and/or clip (3).
   Fig 4: Identifying Clamps, Grommets &/Or Clip



Replacement for L7 only:

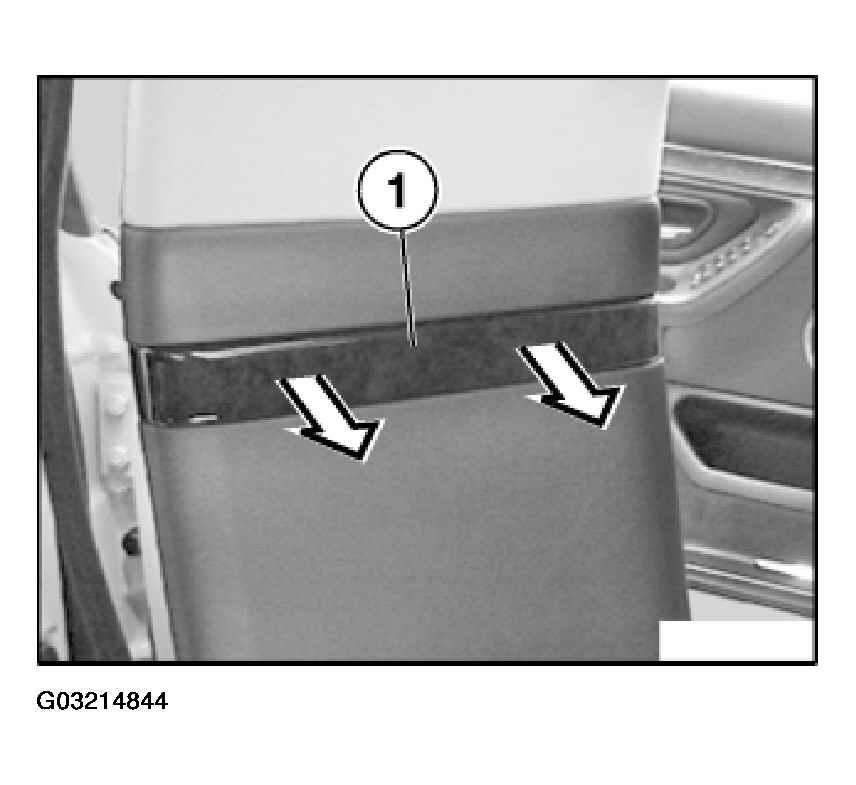

Unclip wooden finisher (1) towards interior.

Replacement for L7 only:

Installation:

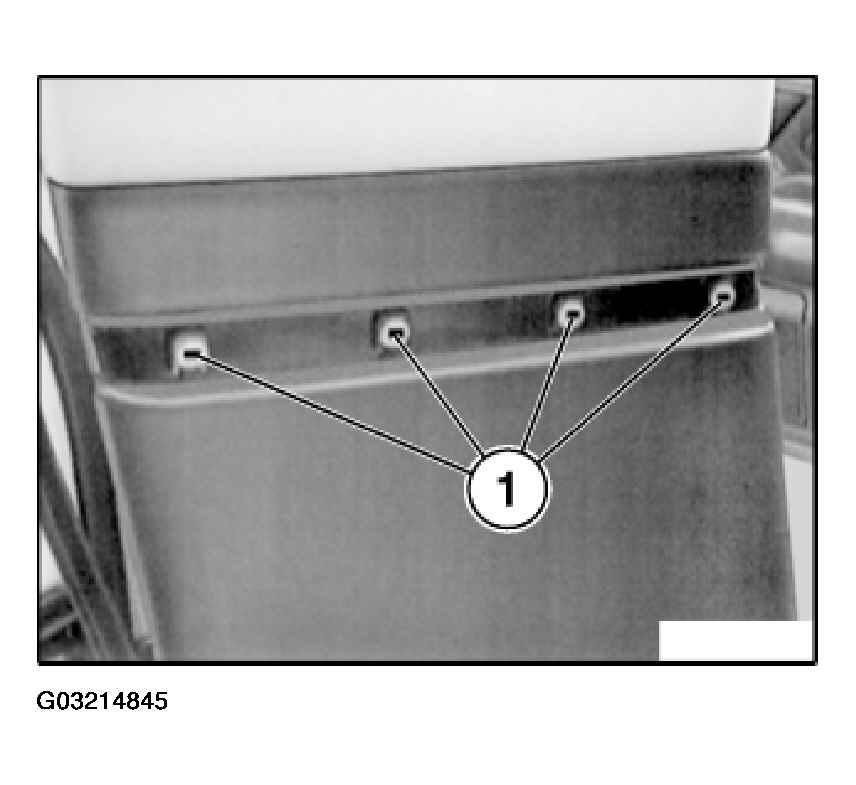

1. If necessary, replace damaged clips and grommets (1).
   Fig 6: Identifying Clips & Grommet (L7)
