51 47 172 Removing and installing/replacing flap in luggage compartment trim, left or right

Open trunk lid.

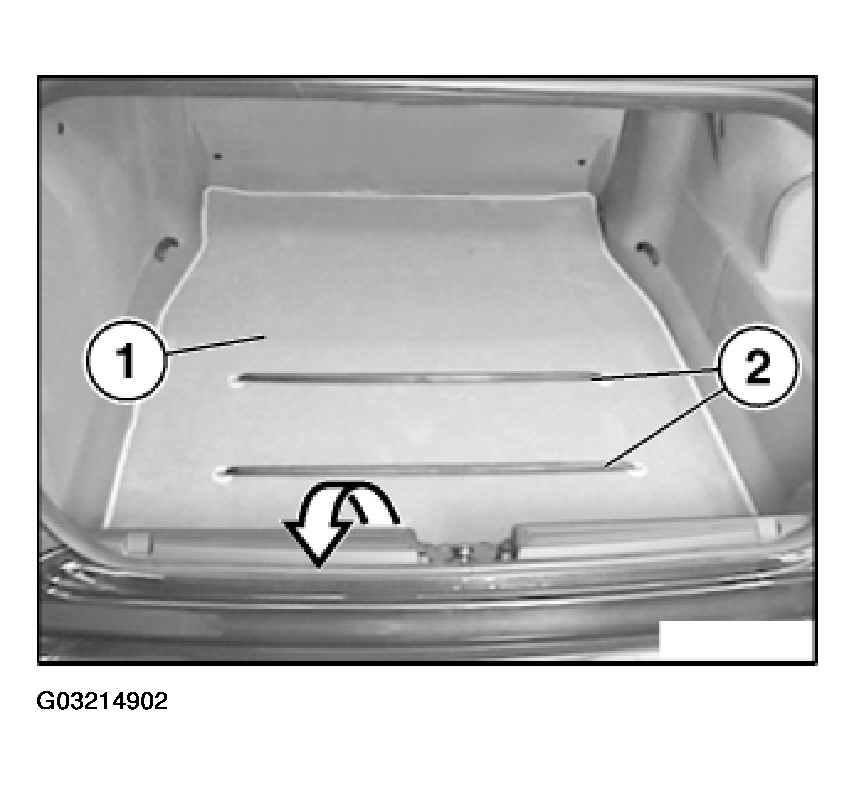

Take out luggage compartment floor trim panel (1).

Installation:

1. Make sure tensioning belts (2) are correctly positioned.
   Fig 1: Removing Luggage Compartment Trim, Left Or Right



Left side:

Version with navigation system:

If necessary, remove navigation computer, refer to 65 90 510 REMOVING AND INSTALLING/REPLACING NAVIGATION COMPUTER WITH CD-DRIVE .

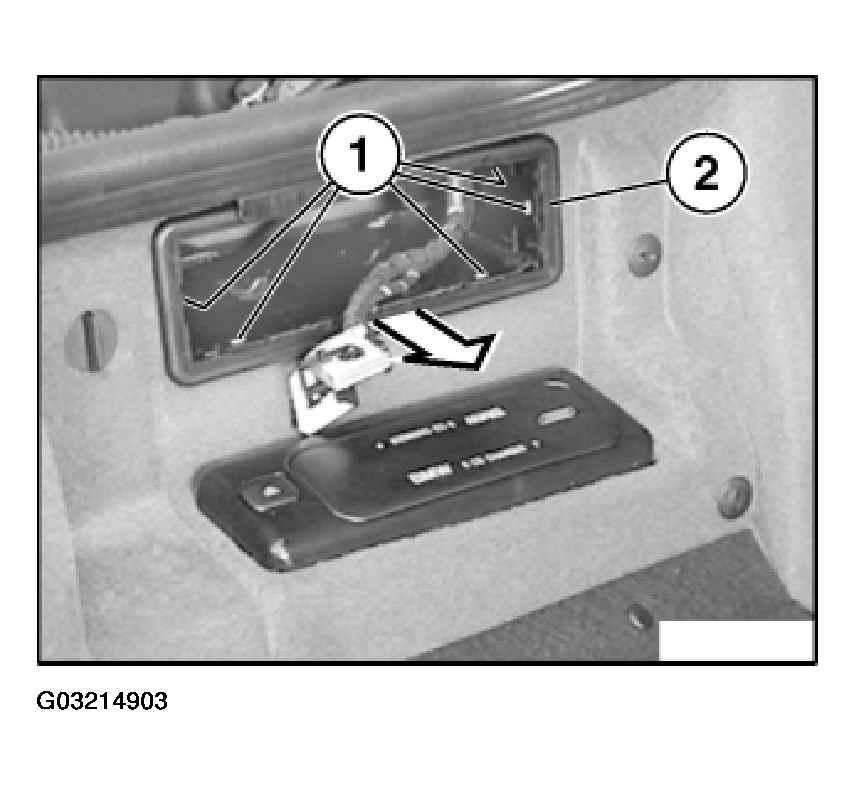

Lever out catches (1) and remove frame (2).

Version with CD changer:

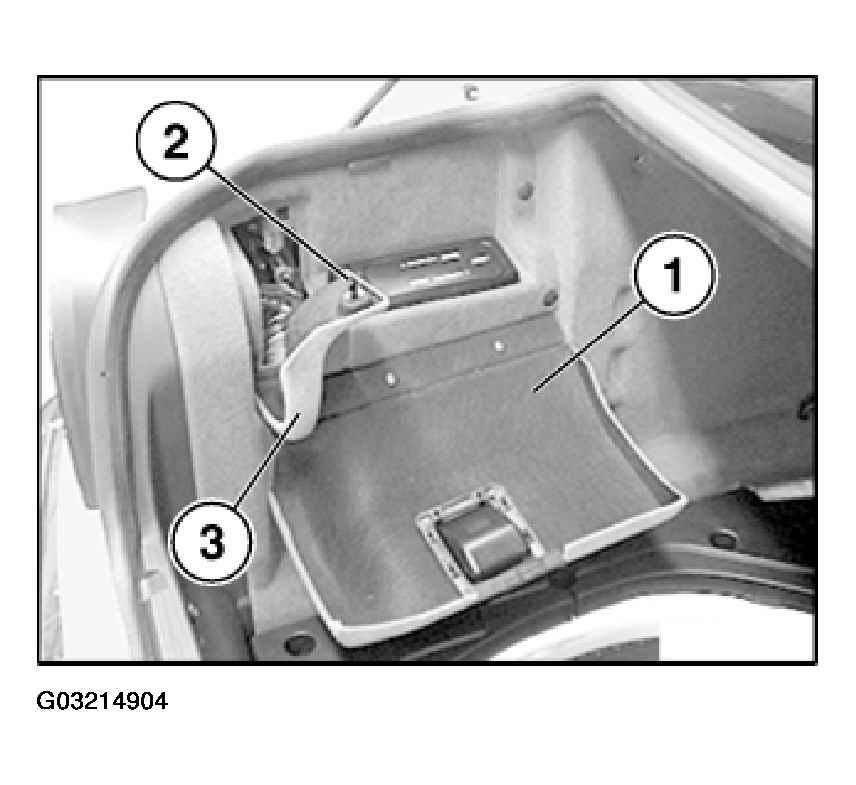

Open cover (1) for CD changer.

Unlock bayonet lock (2) and open flap (3).

Version with CD changer:

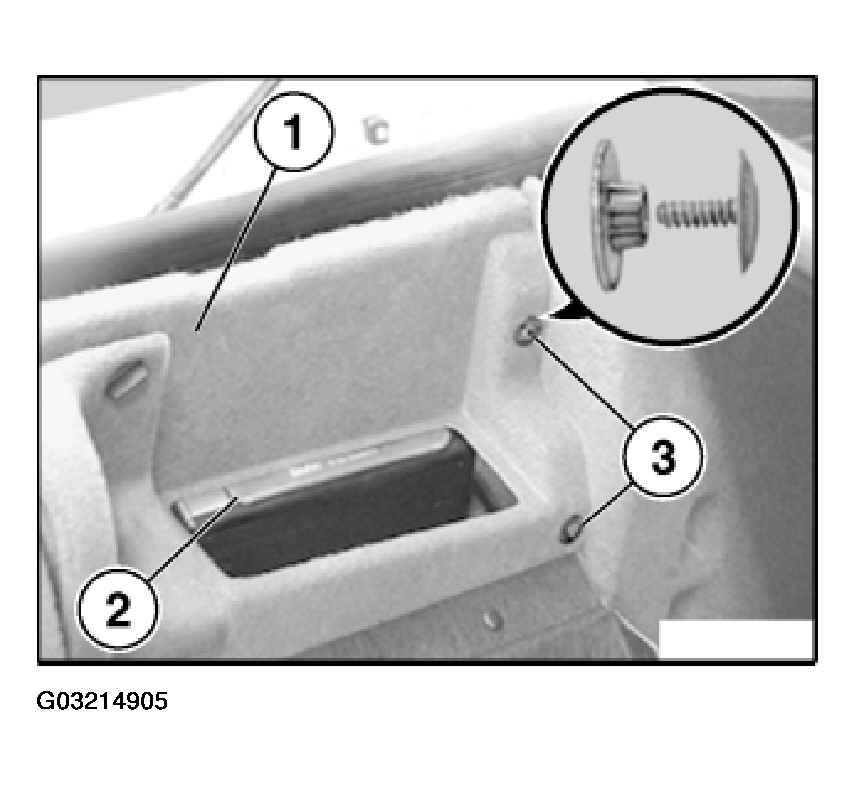

Detach panel (1) at rear and lift over CD changer (2).

Release plastic screw fittings (3) and detach panel components.

Installation:

1. Plastic screw fittings (3) are only pressed together during installation.
   Fig 4: Detaching Panel At Rear & Lift Over CD Changer



Right side:

Unlock and open flap.

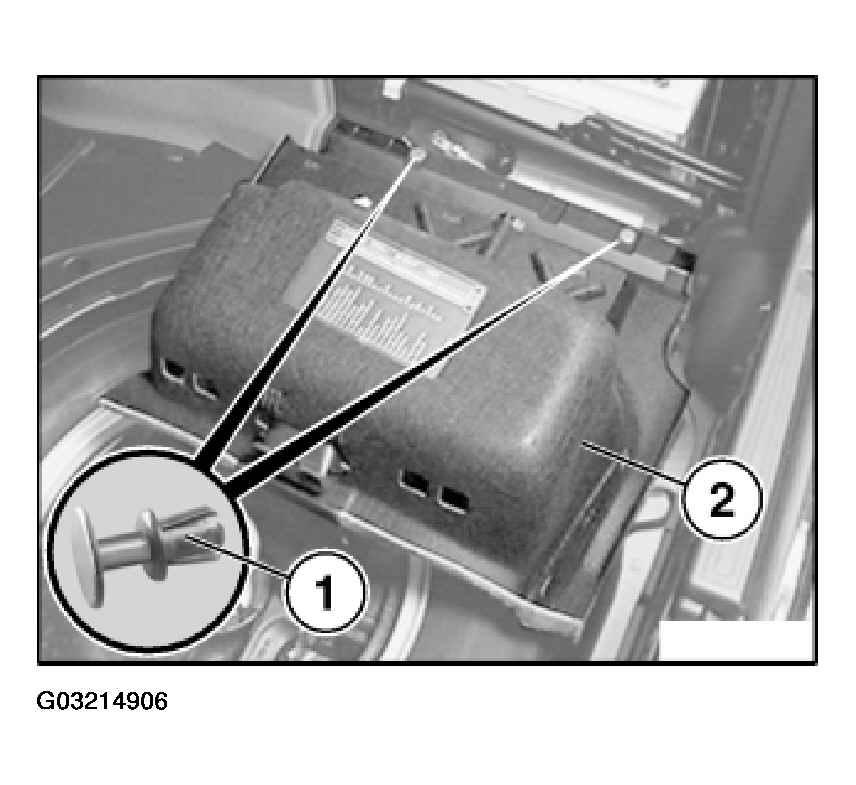

Release expansion rivets (1) and remove flap.
