51 22 330 Removing and installing/replacing window cavity finisher strip on inside of rear door (Protection)

Remove rear door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

CAUTION: The clips can only be removed when the door window glass is removed.
Do not overstrain clips.

Pull window cavity trim (beginning at front) up out of clips.

NOTE: On versions with roller sun blind, window cavity finisher strip is in two parts.

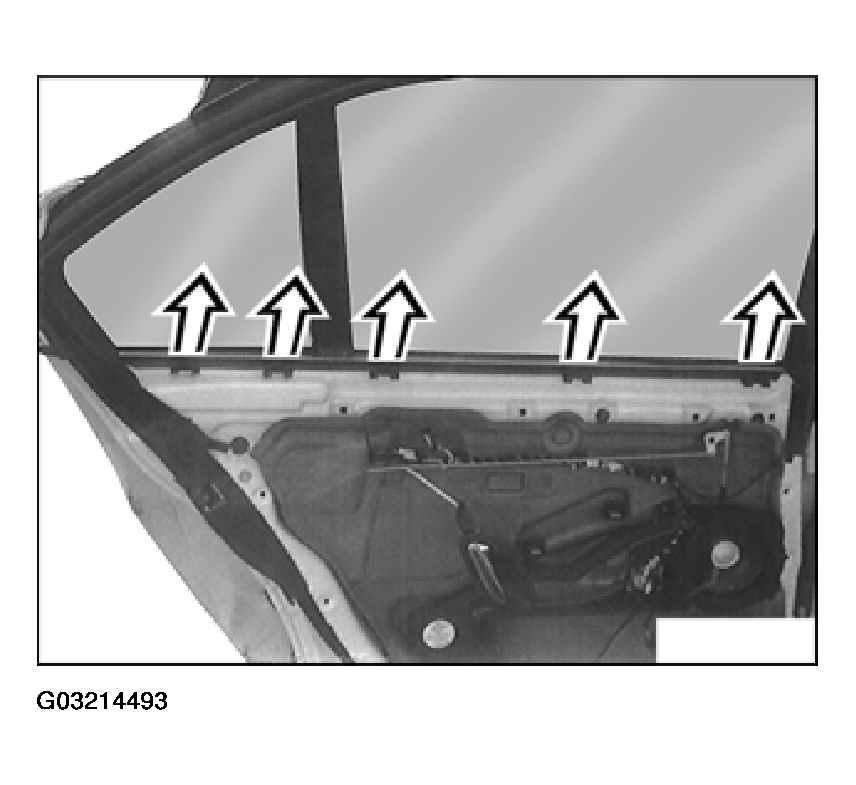

Fig 1: Pulling Window Cavity Trim
