51 22 225 Removing and installing/replacing inside door opener of rear left or right door

Remove rear door trim panel.

Version up to 09/98 (door opener without lighting):

Pull Bowden cable (1) towards rear and unhook from door opener.

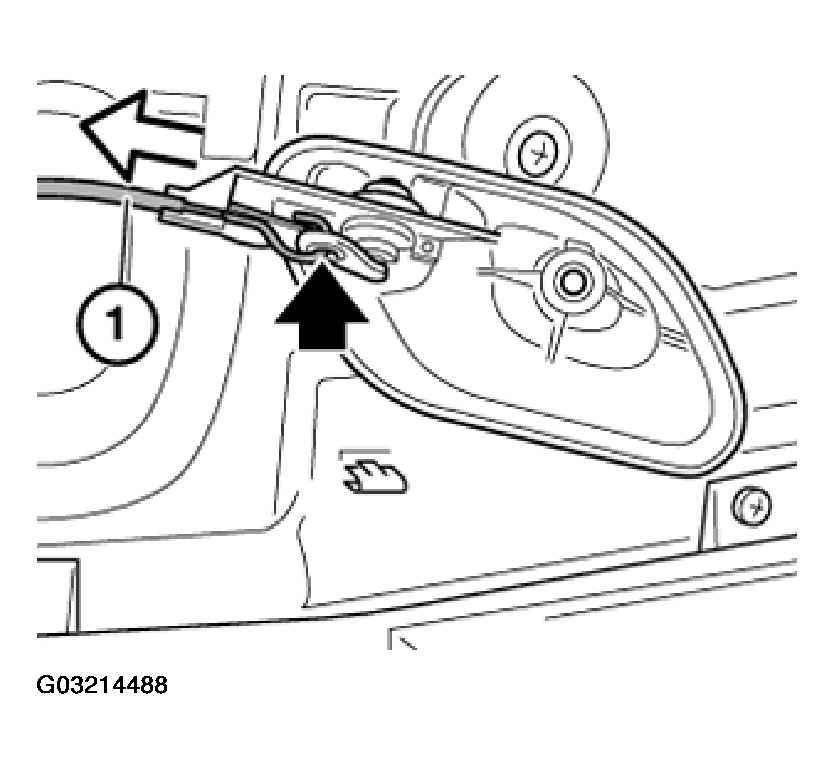

Fig 1: Removing Bowden Cable (Door Opener Without Lighting)

Version from 09/98 (door opener with lighting):

Disconnect LED with cable (1) from light housing (2).

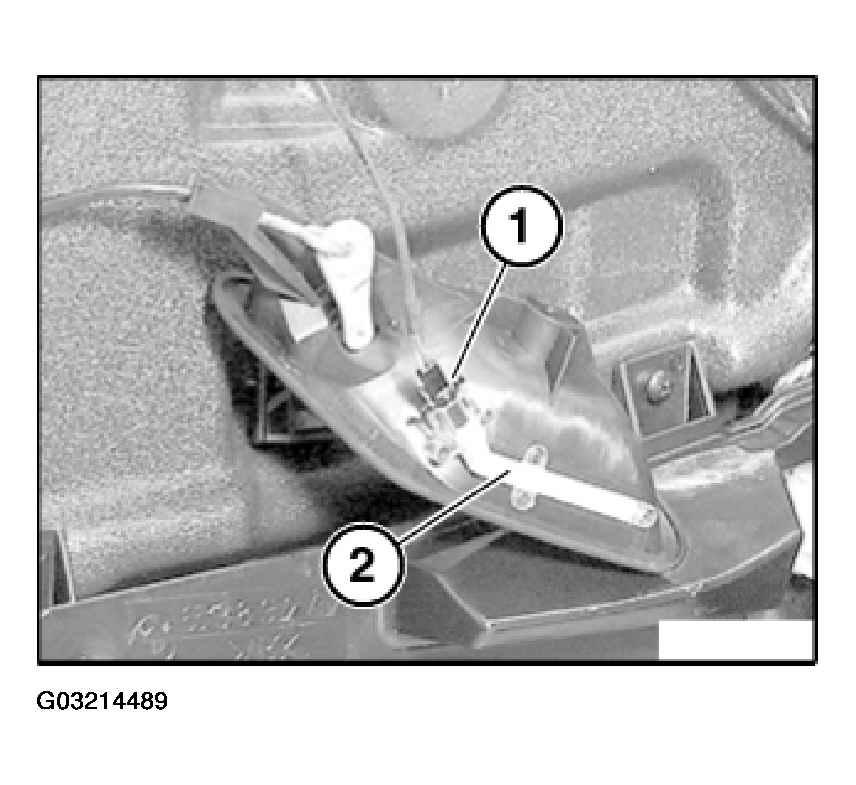

Fig 2: Disconnecting LED With Cable From Light Housing

Pull Bowden cable (1) towards rear and unhook from door opener.

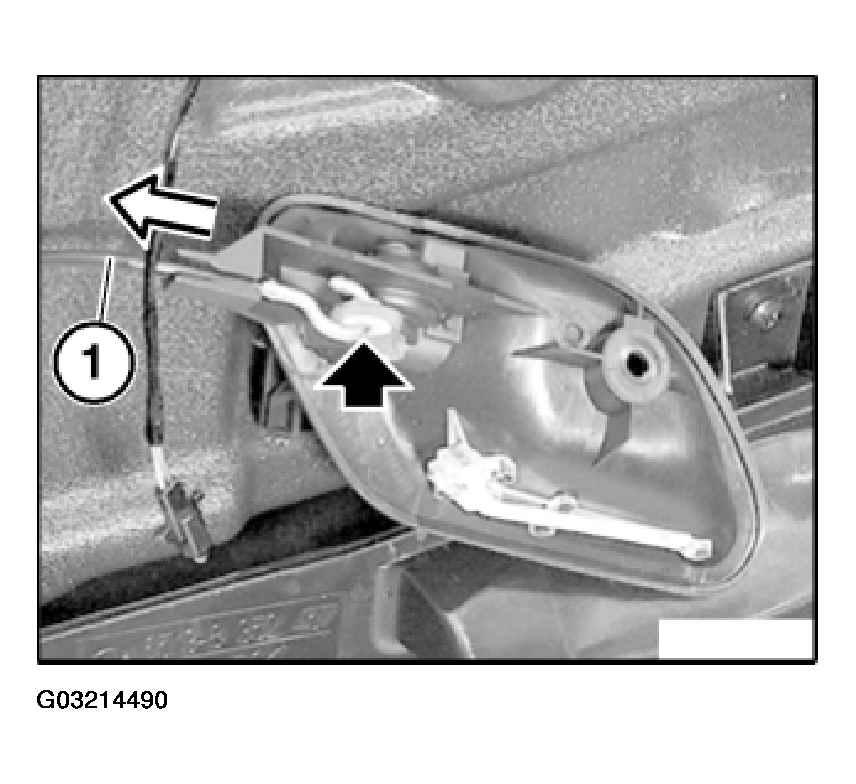

Fig 3: Removing Bowden Cable (Door Opener With Lighting)
