51 16 210 Removing and installing / replacing finisher for pre-selector lever

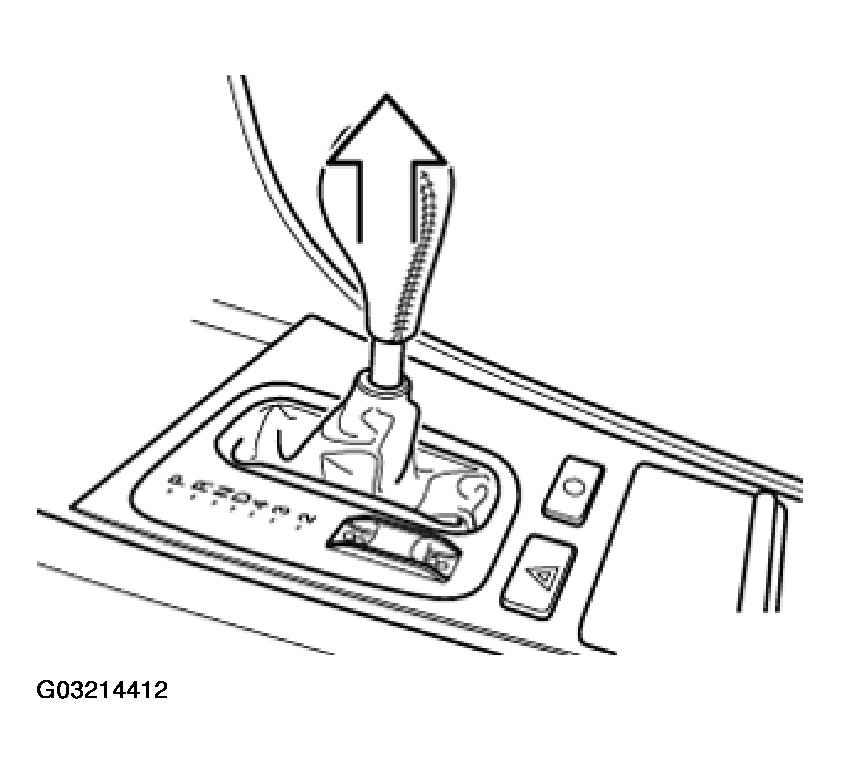

Pull handle off with one firm movement.

Fig 1: Removing Pre-Selector Lever Handle

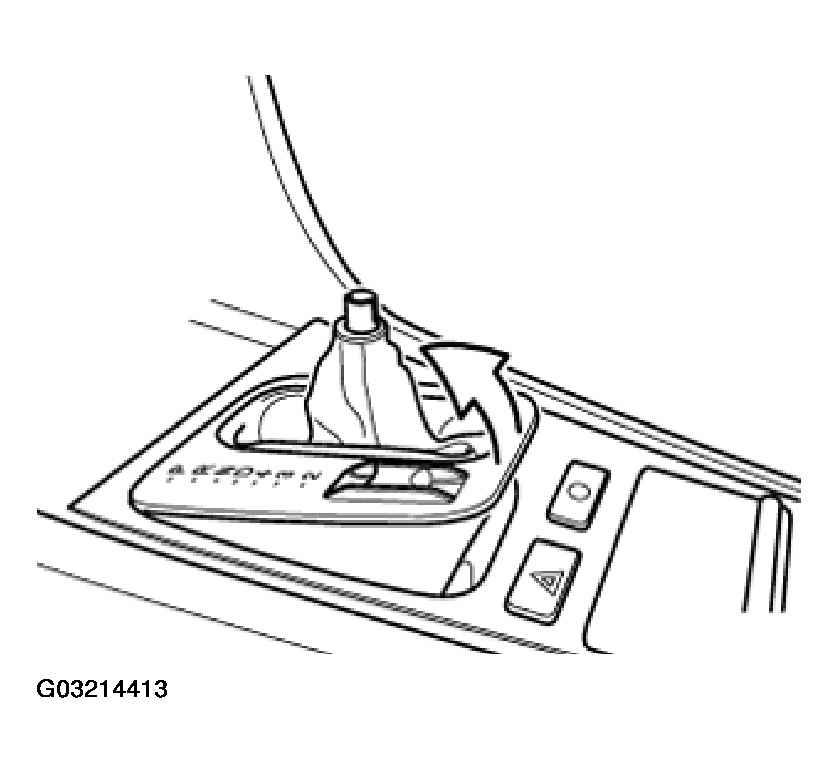

Lift out cover plate.

Fig 2: Lifting Out Cover Plate

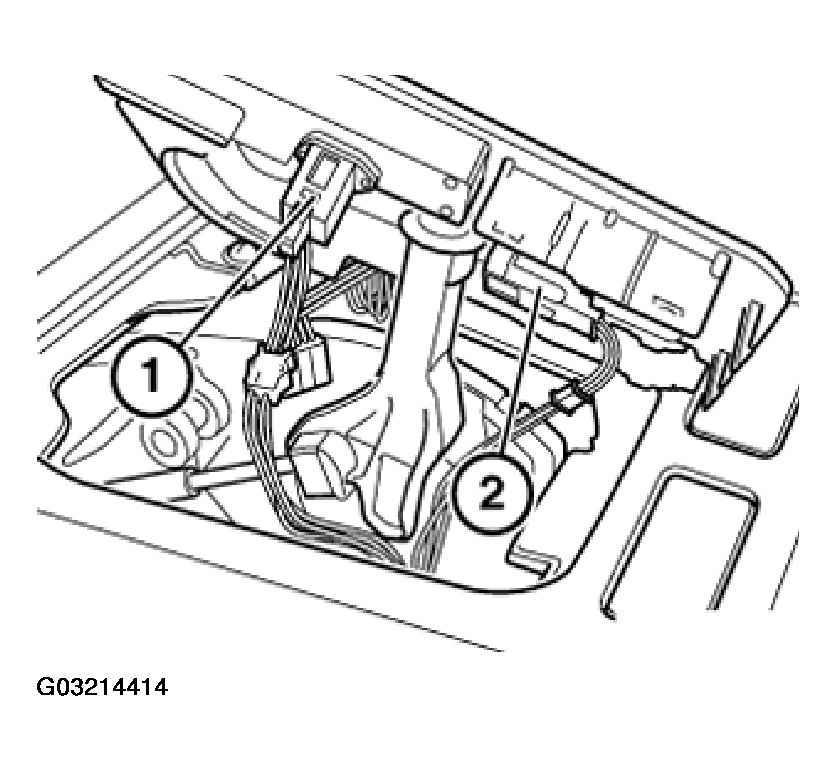

Disconnect cable plugs (1) and (2).

Fig 3: Disconnecting Cable Plugs

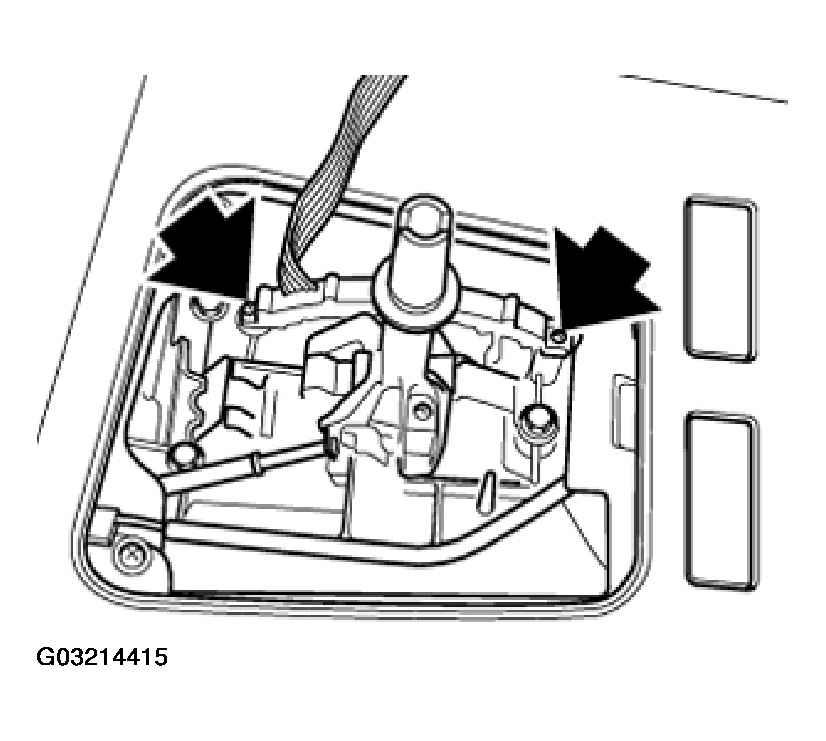

If necessary, release screws and remove position switch for Steptronic.

Remove finisher for pre-selector lever.

Fig 4: Removing Position Switch For Steptronic
