51 21 351 Replacing window recess cover on left or right front door

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL

Remove shaft cover (starting at back) by pulling upwards.

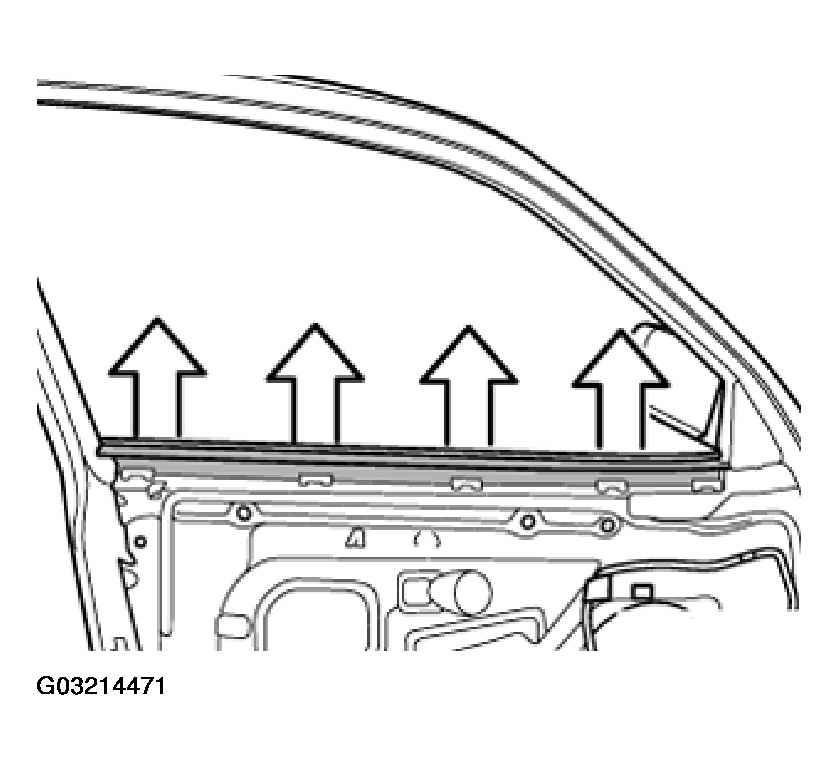

Fig 1: Removing Shaft Cover (Starting At Back)
G03214471

If necessary, remove clips and fit to inside panel of door.

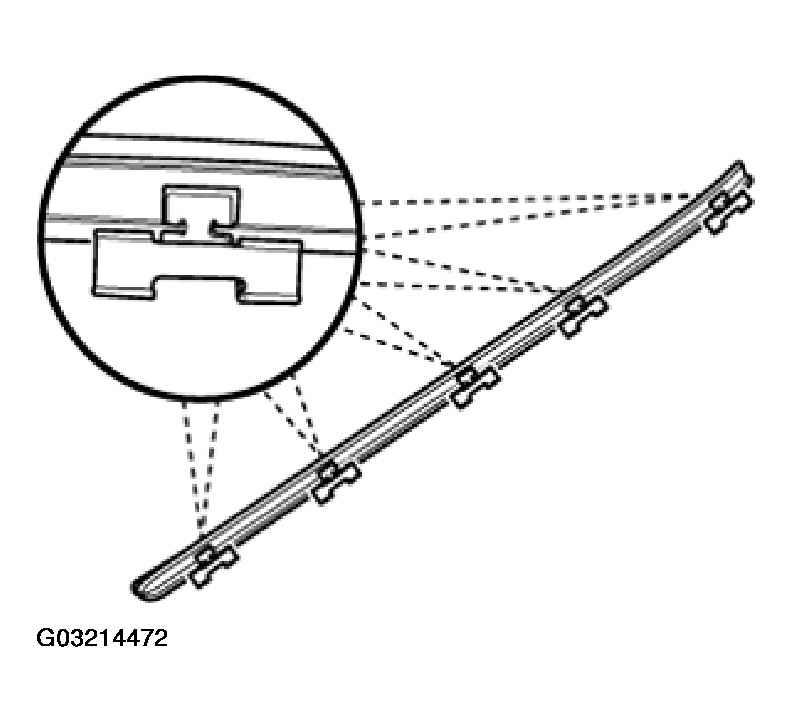

Fig 2: Removing Clips
G03214472
