Minimum set: Mechanical tools
SUCTION LIFT (2X) - GENERAL SPECIFICATION
| Note: | For removing and installing window glass |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| SI number: | 1 05 86(604) |

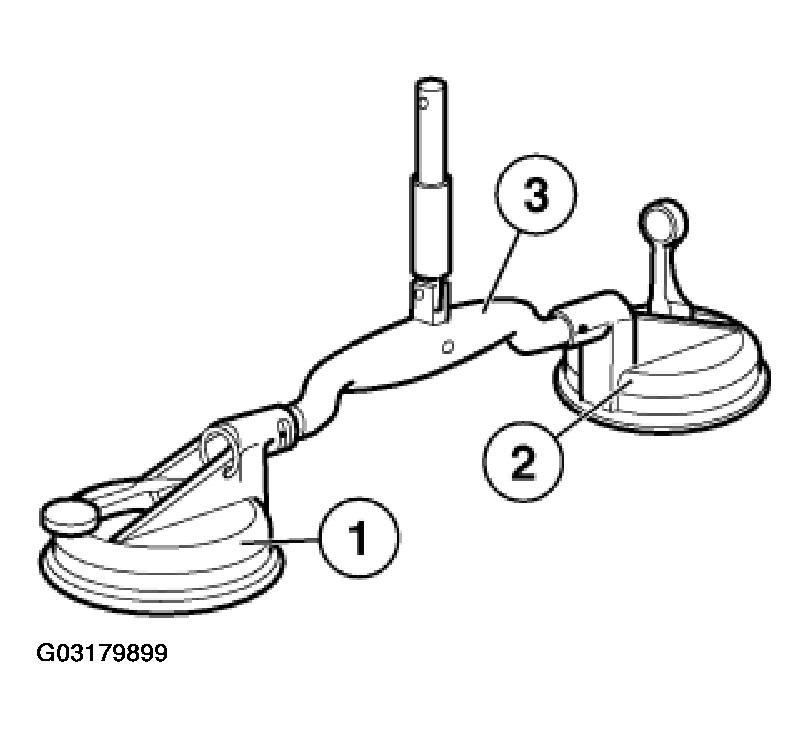

| Order number: | 51 3 010 Suction lift (2 x) |
| Consisting of: 1 = 51 3 011 | Suction cup |
| Note: With elongated hole, suspension moveable about all axes | |
| 2 = 51 3 012 | Suction cup |
| Note: With bore, suspension only moveable in longitudinal direction | |
| 3 = 51 3 013 | Grab handle |
