51 24 391 Replacing rubber mount on trunk lid support

Remove both rubber mounts.

Installation:

Adjust both rubber buffers (work is described under "adjust trunk lid to fit"), refer to 41 62 014 ADJUSTING TRUNK LID TO FIT .

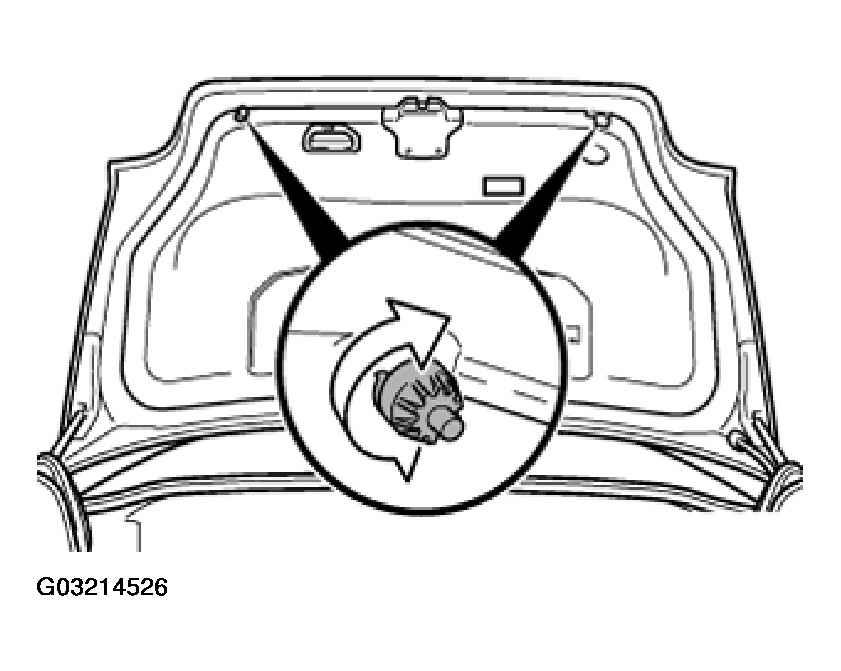

Fig 1: Removing Rubber Mount On Trunk Lid Support
G03214526
