51 24 050 Removing and installing/replacing lock (locking cylinder) for trunk lid set

Lift out Omega clip (1).

Remove plug connections (2) and (3).

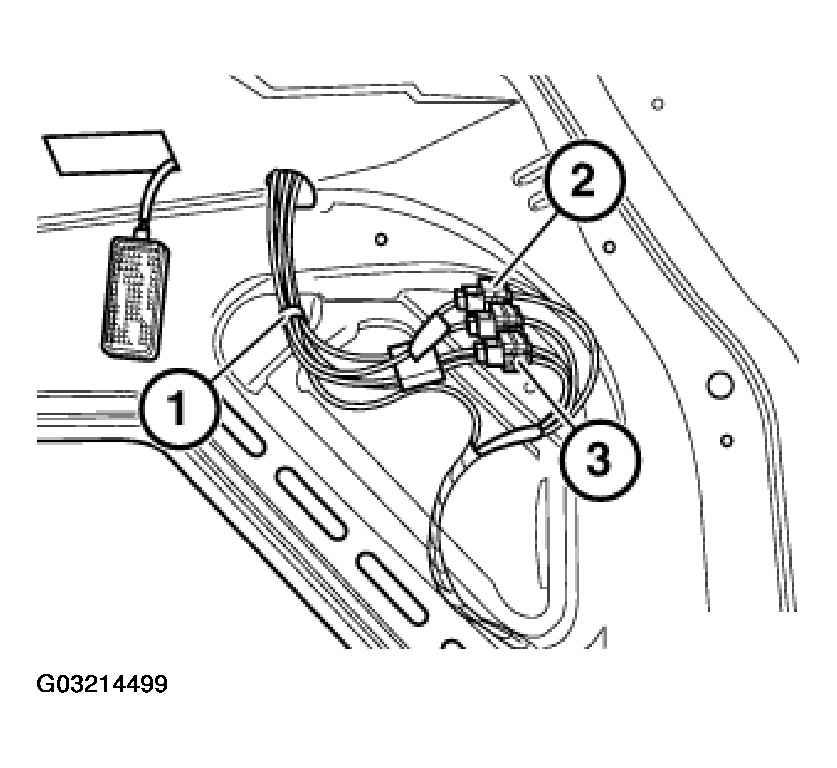

Fig 1: Removing Plug Connections

Lift out actuating rod (1).

Unfasten nut and remove lock.

Installation:

Check actuating rod (1) is in correct position.

Lock must be fitted centrally in body aperture.

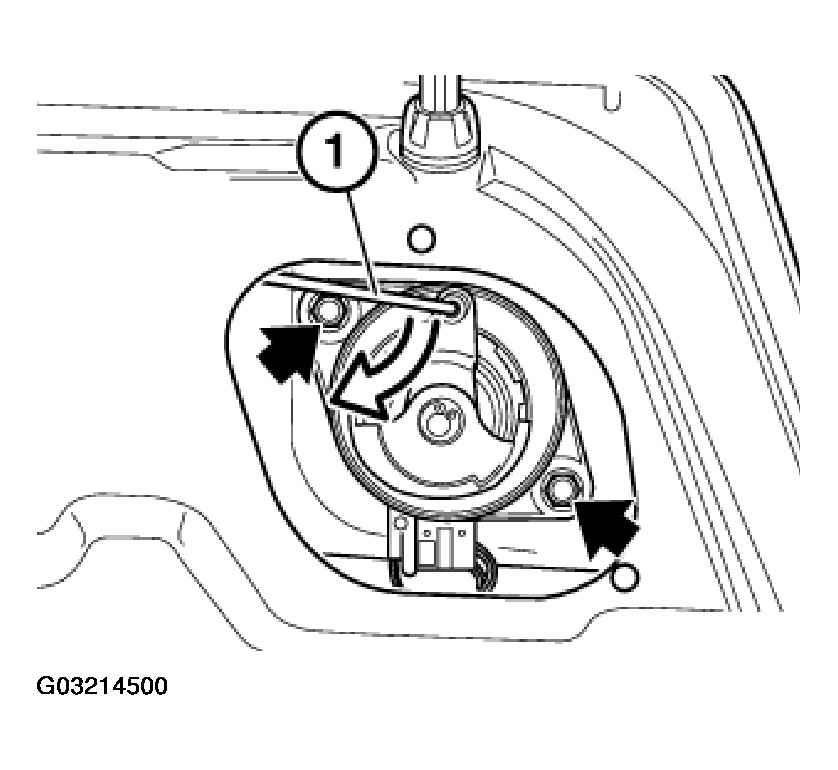

Fig 2: Removing Actuating Rod

Installation:

Perform function check with trunk lid open.

Fig 3: Identifying Caution Mark

Only replace:

Cable and shrink-fit hose colors on micro-switch (MS) designated any deviations.

MS1 red/grey

MS2 brown/blue, shrink-fit hose black

MS3 brown/blue, shrink-fit hose yellow

Lift out clips, remove micro-switches (1) and (2).

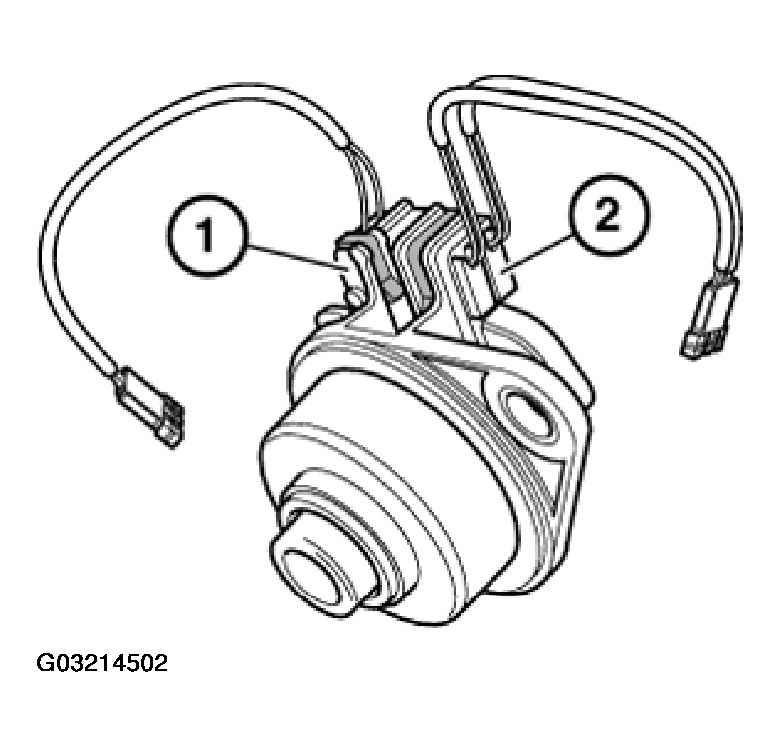

Fig 4: Removing Micro Switch (1 Of 2)

Lift out bracket and remove micro-switch (3).

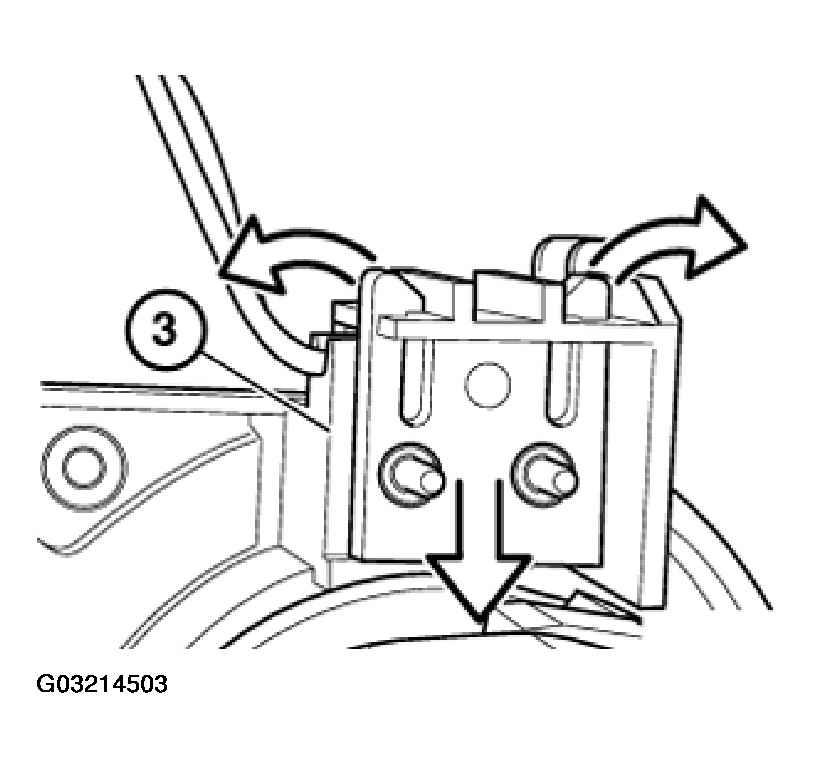

Fig 5: Removing Micro Switch (2 Of 2)
