51 47 000 Removing and installing / replacing the front (inside) left or right rocker panel strip

Slightly raise front rocker panel strip and pull forwards out of clips.

Lift clips off floor assembly.

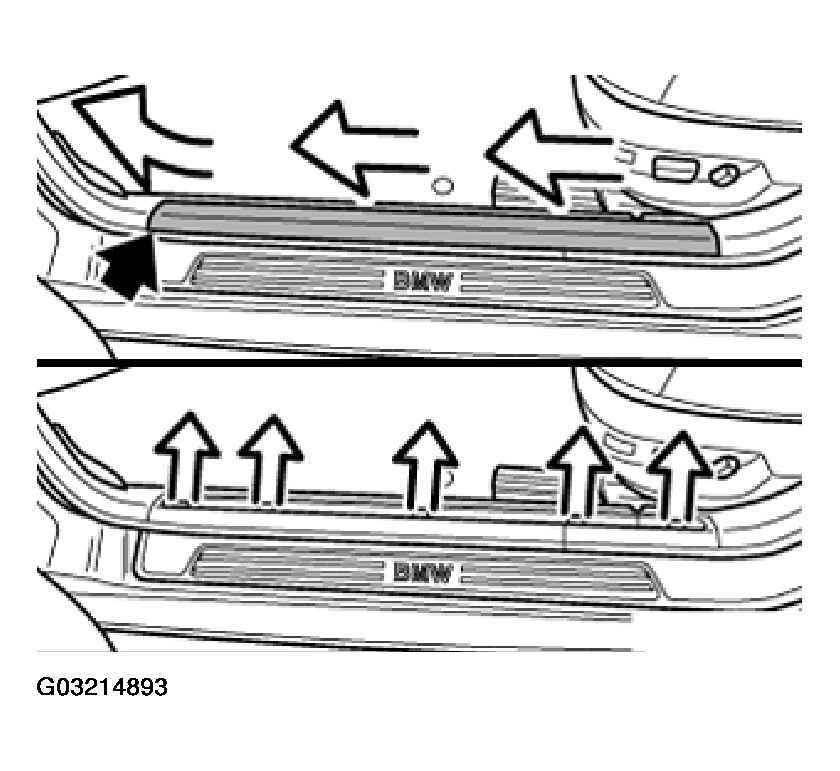

Fig 1: Removing Rocker Panel Strip
G03214893

Installation:

  1. Slide clips onto rocker panel strip.

If necessary, replace damaged clips.

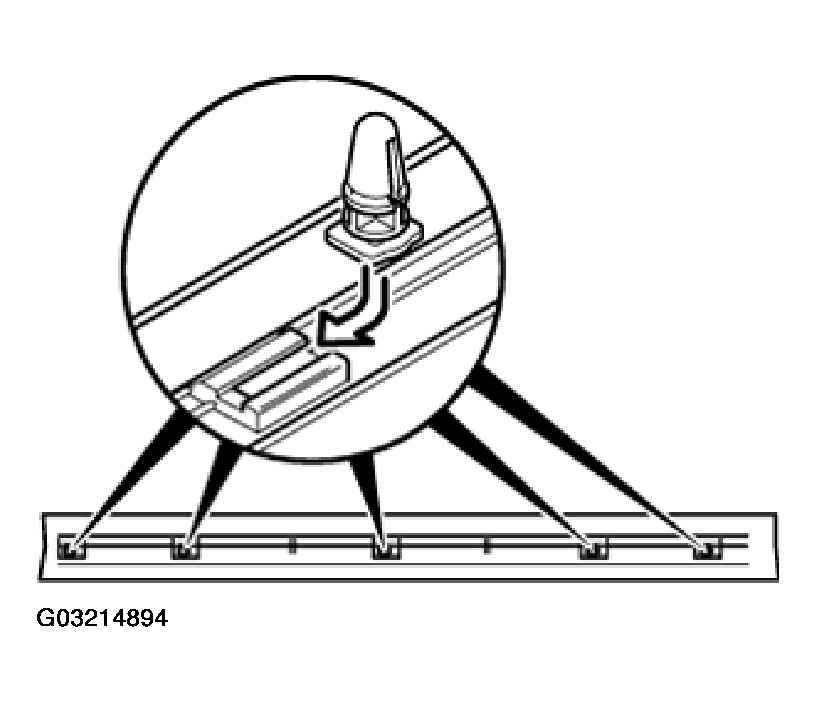

Fig 2: Identifying Clips
G03214894
