51 34 171 Replacing rear left or right door window

Remove sound insulation on rear door,

Remove window cavity covering strip on outside.

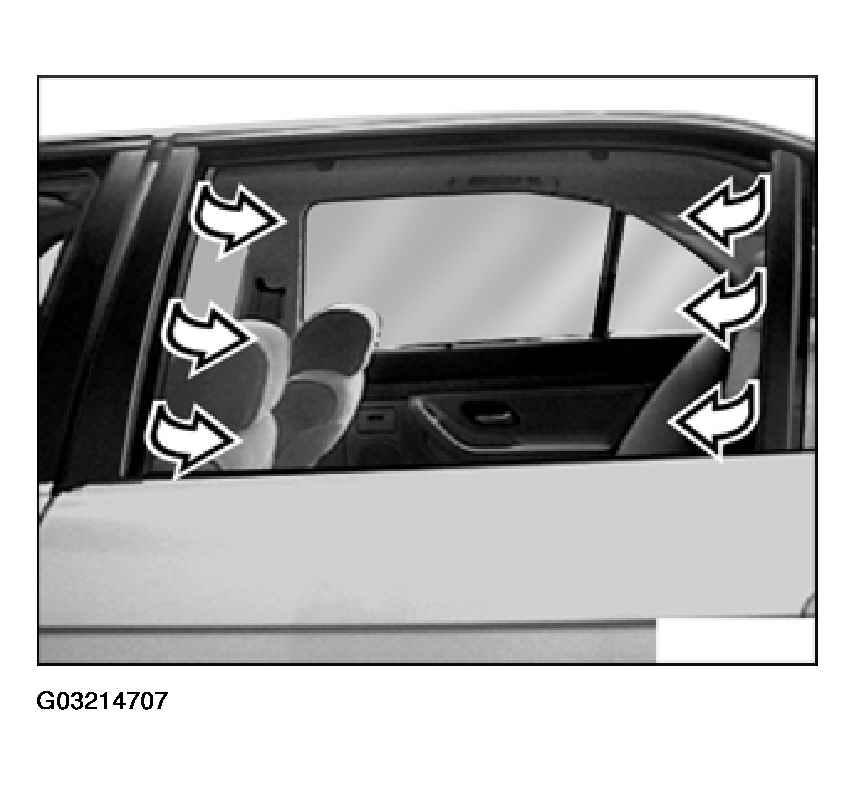

Fig 1: Removing Window Cavity Covering Strip On Outside

Remove rubber guide.

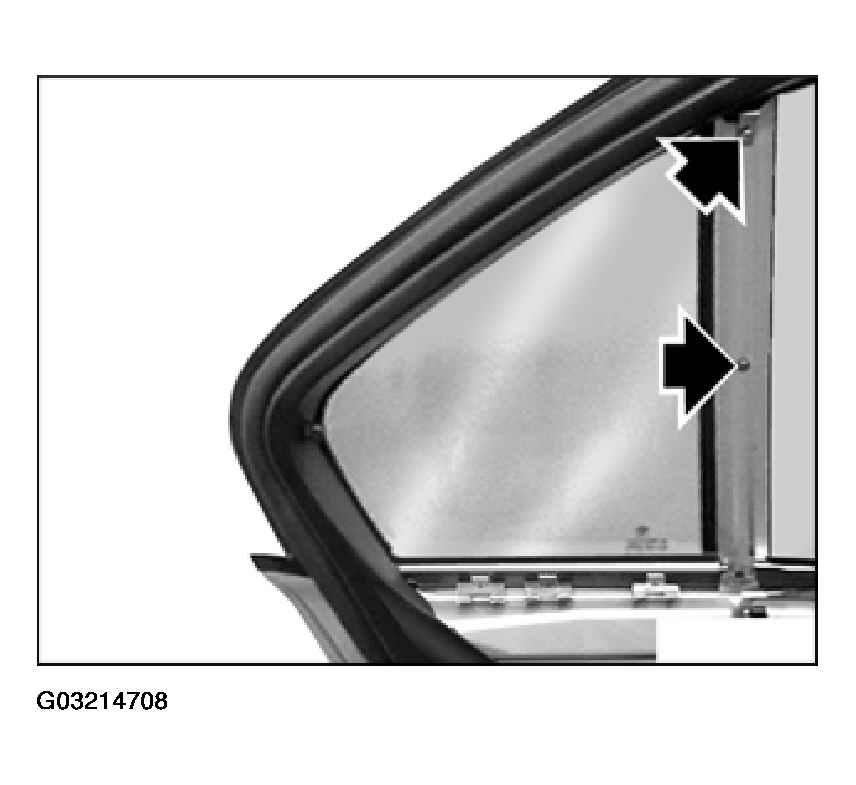

Fig 2: Removing Rubber Guide

Remove screws and take off plate.

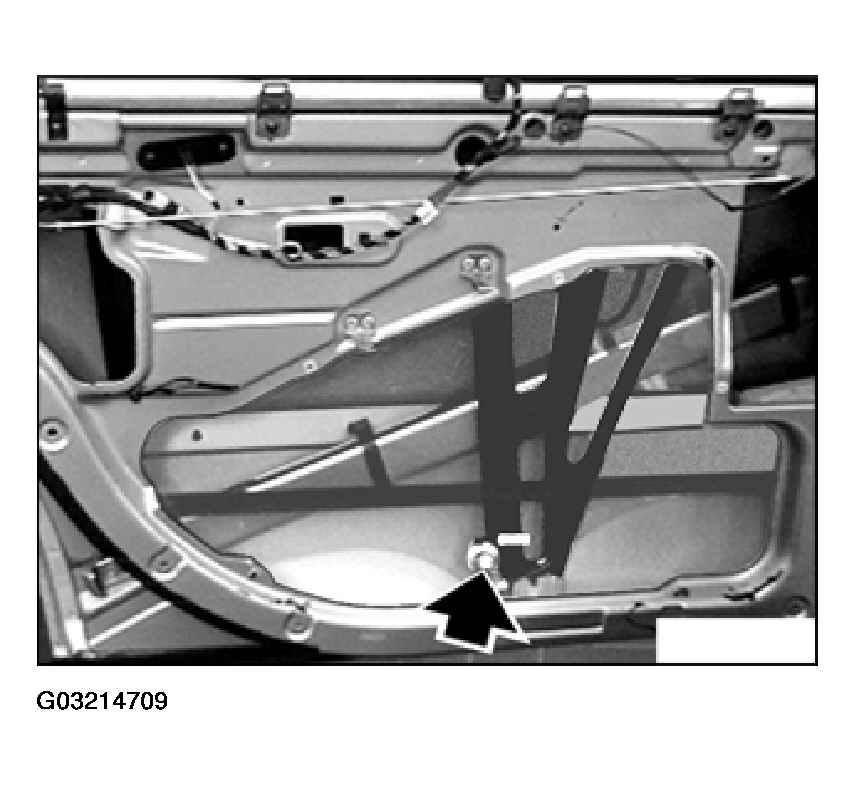

Fig 3: Removing Plate

Release screw and lift up door window glass.

Fig 4: Releasing Screw For Removing Door Window Glass

Remove window glass by pulling upward at an angle.

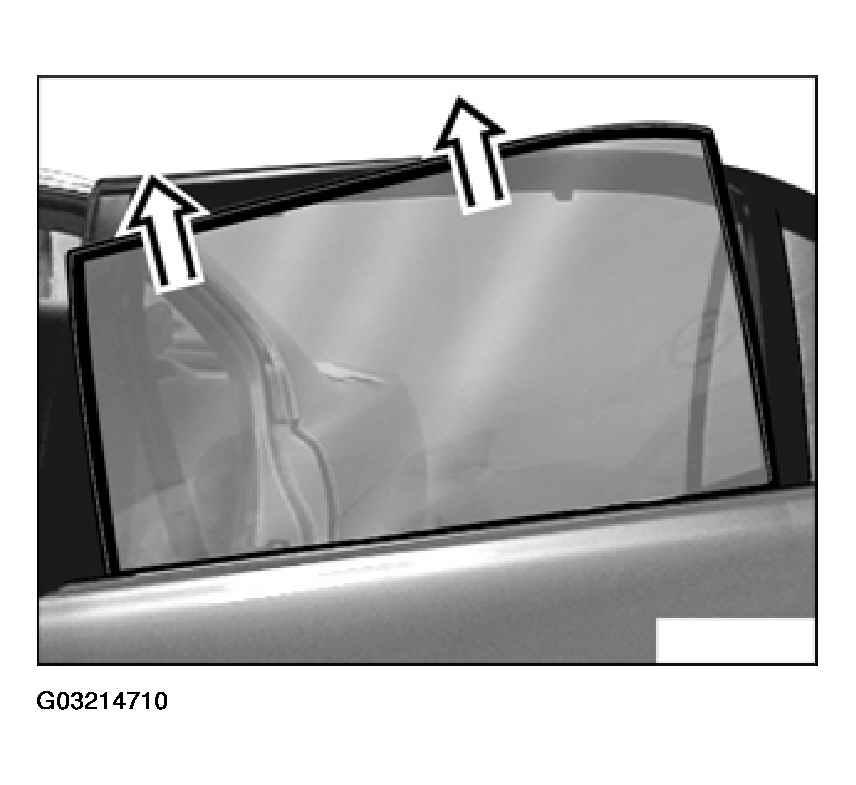

Fig 5: Removing Window Glass
