51 34 160 Removing and installing/replacing cover on door window frame (rear door), left or right (Protection)

Remove fixed side window in rear window frame,

refer to 51 34 191 REPLACING FIXED DOOR WINDOW IN FRAME, REAR LEFT OR RIGHT (PROTECTION)

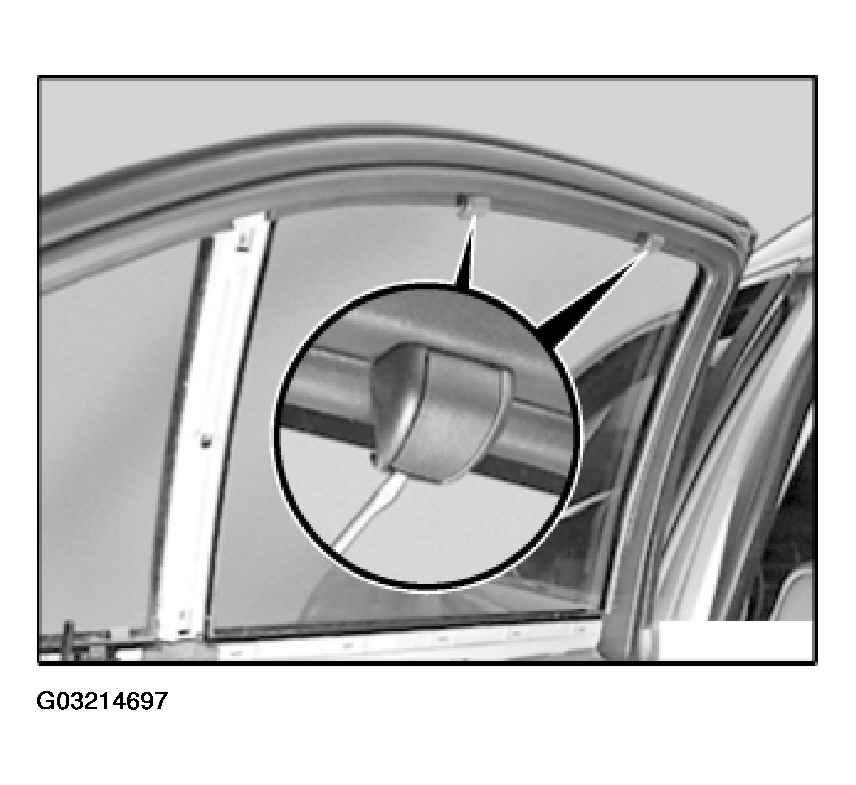

Open bracket for roller sun blind.

Fig 1: Removing Roller Sun Blind Bracket

Unscrew bolt (1).

Installation:

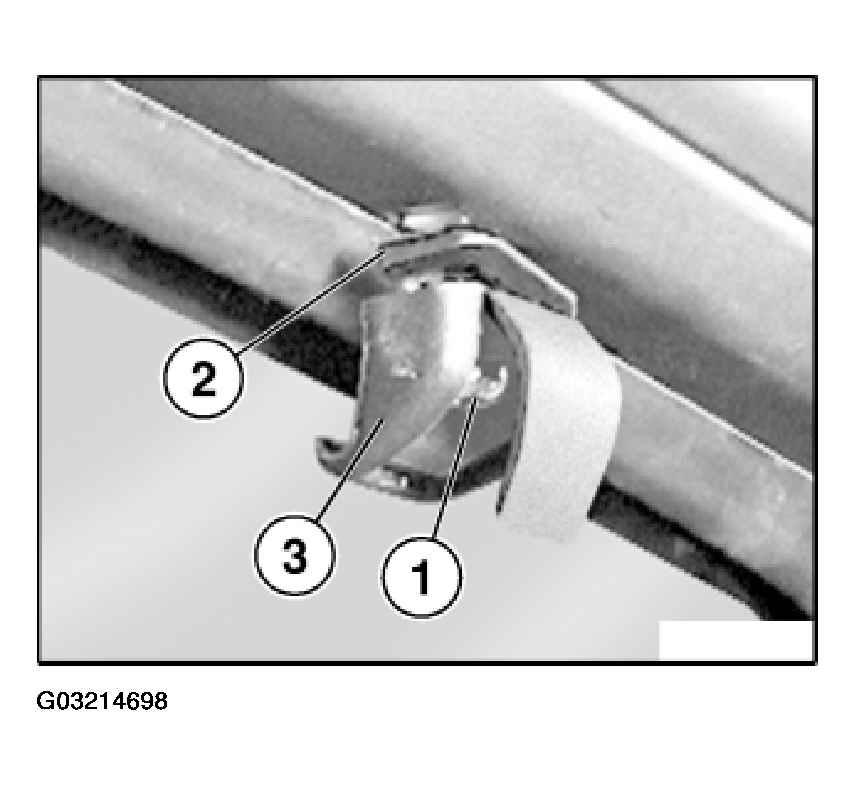

1. Note installation sequence of adapter (2) and bracket (3).
   Fig 2: Identifying Adapter & Bracket

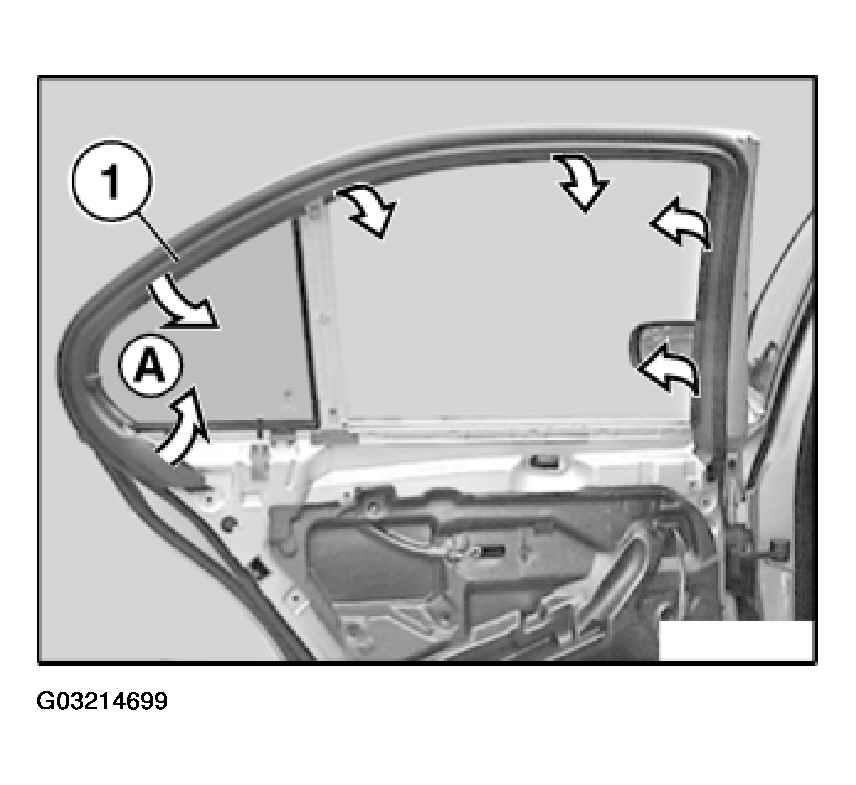

Lift out and remove cover (1) first at rear (A), top (B) and then front (C).

Fig 3: Removing & Installing/Replacing Cover On Door Window Frame (Rear Door), Left Or Right (Protection)
