51 12 742 Replacing One Impact Absorber For Rear Bumper
- (bumper removed)
- Remove floor mat.

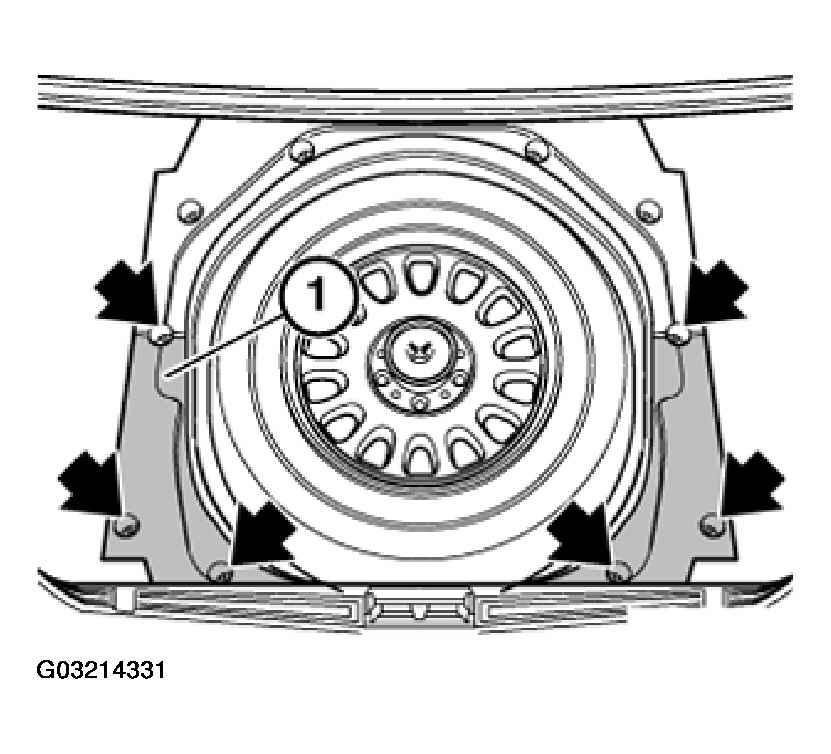

Unfasten nut and lift out rear floor covering (1).
Lift finisher off tail panel trim and unfasten nut.
Installation:

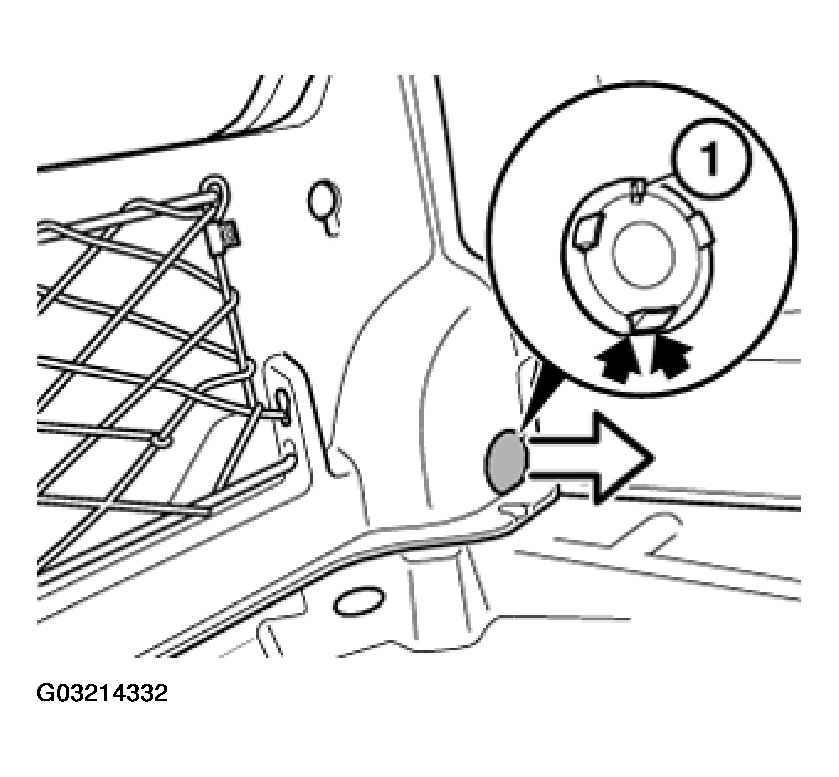

Encoding (1) must be at top to ensure that straight surface is at bottom.
Fold side trunk trim forwards.

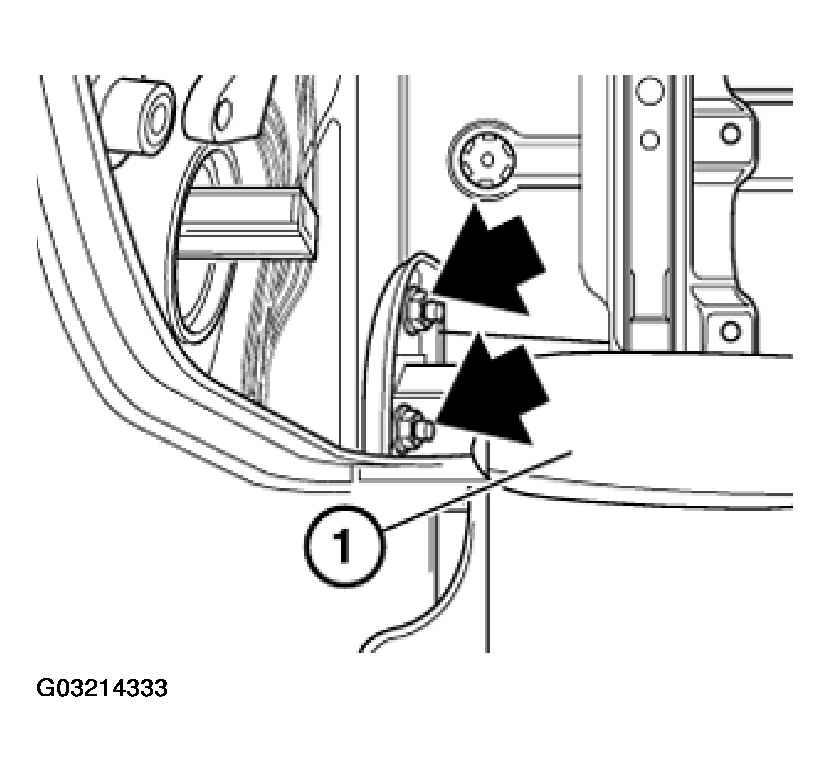

Unfasten nut and pull impact absorber backwards to remove.
Installation:
Replace gasket on impact absorber.
