51 16... Removing and installing/replacing wooden finisher and front section on cup holder at front

Replacing wooden finisher for OBD socket:

Snap out locking element (1) and lift out trim (2) for (OBD plug).

3 Hand mirror

Detach retaining strap from mounting of cup holder.

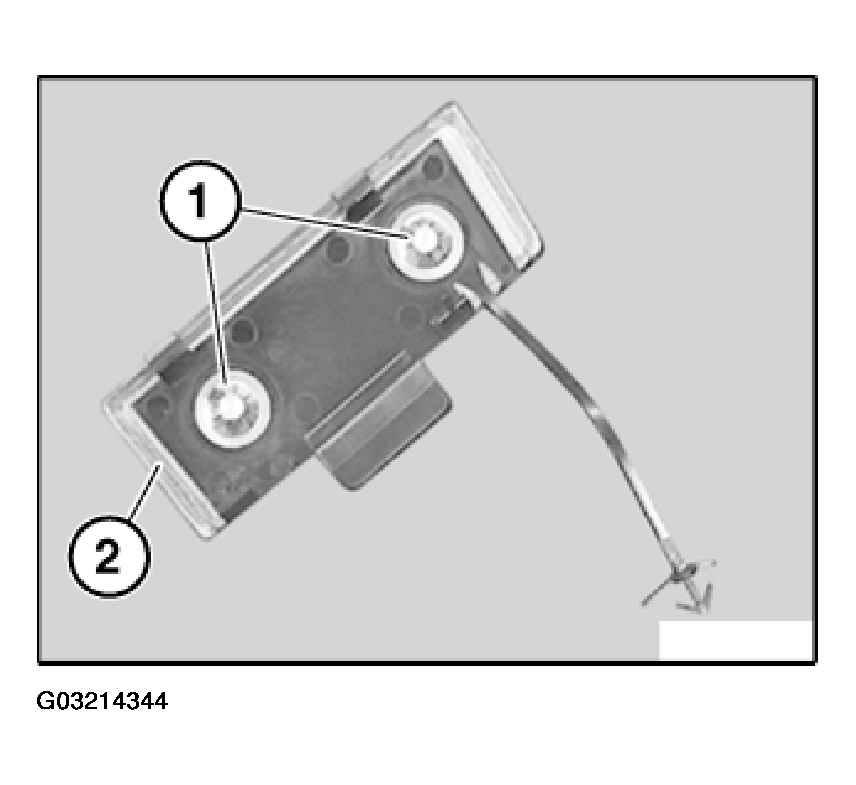

Fig 1: Detaching Retaining Strap From Mounting Of Cup Holder

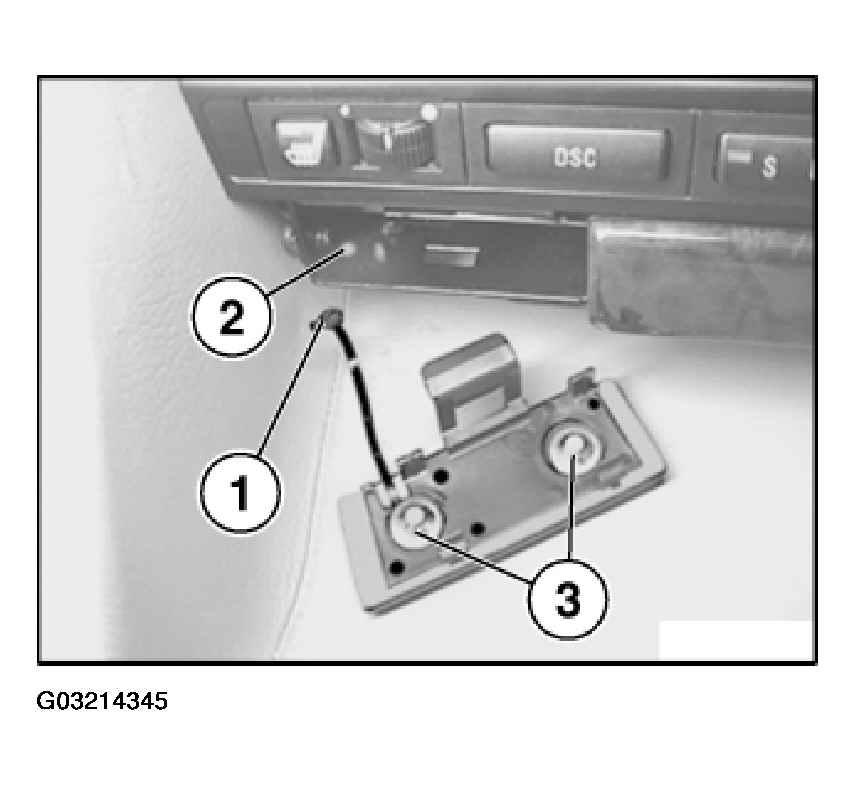

Release locking washers (1) by destroying them and replace wooden finisher (2).

Fig 2: Identifying Locking Washers & Wooden Finisher

Installation:

Fit new wooden finisher and secure with new locking washers (3).

Insert retaining strap (1) in support (2).

Clip trim into place and if necessary align gap.

Fig 3: Installing Wooden Finisher

Replacing cover for cup holder (with wooden finisher):

Open cup holder.

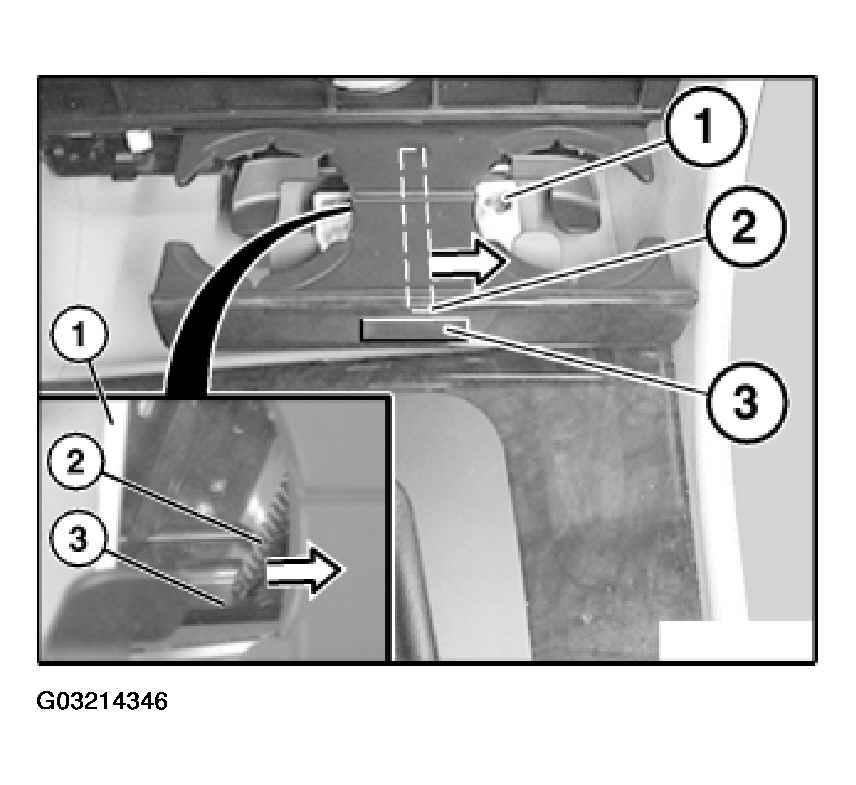

NOTE: If necessary, use a hand mirror (1) for better visibility.

Unhook rack (2) from front section (3) towards right.

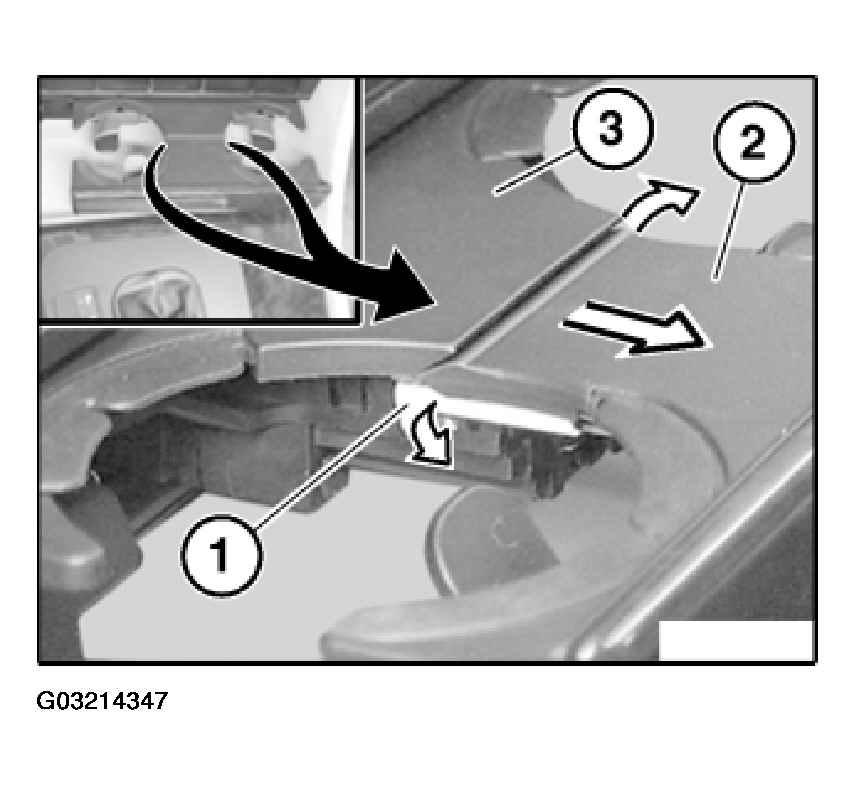

Fig 4: Removing Cover For Cup Holder (With Wooden Finisher)

Unlock hook (1) on left/right in center area of cup holder front section (2) and detach from cup holder rear section (3).

NOTE: If necessary, use a hand mirror for better visibility.

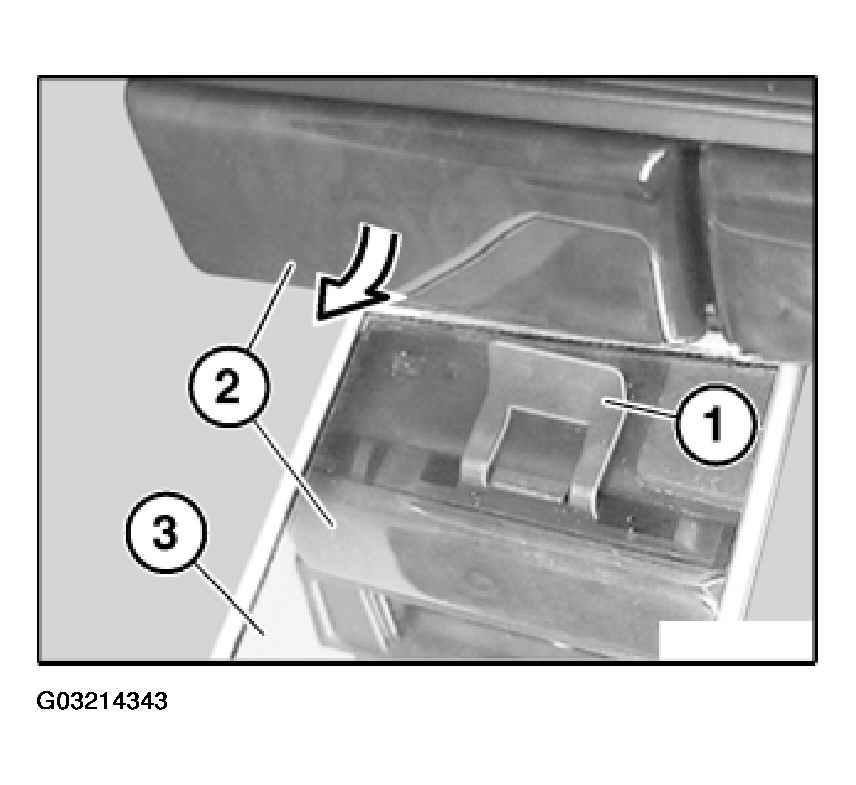

Fig 5: Unlocking Hook On Left/Right In Center Area Of Cup Holder Front Section

Installation:

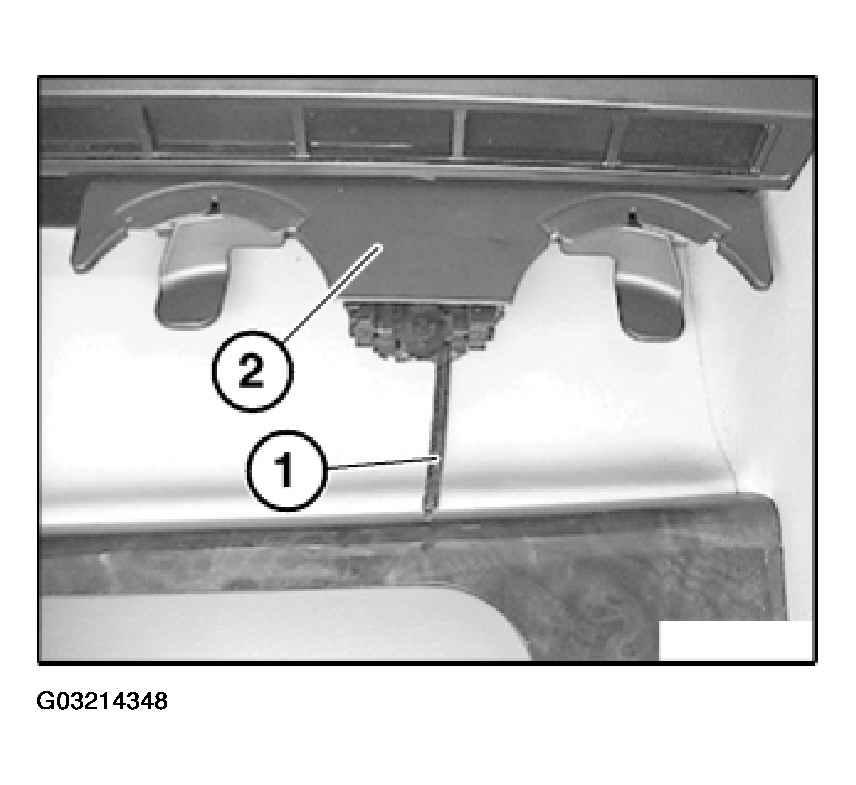

Rack (1) on cup holder (2) must not be damaged.

Fig 6: Identifying Rack On Cup Holder

Installation:

During installation, rack (1) must be hooked into bore (2) in cup holder (3) and snapped into place.

Fig 7: Installing Rack Into Bore In Cup Holder

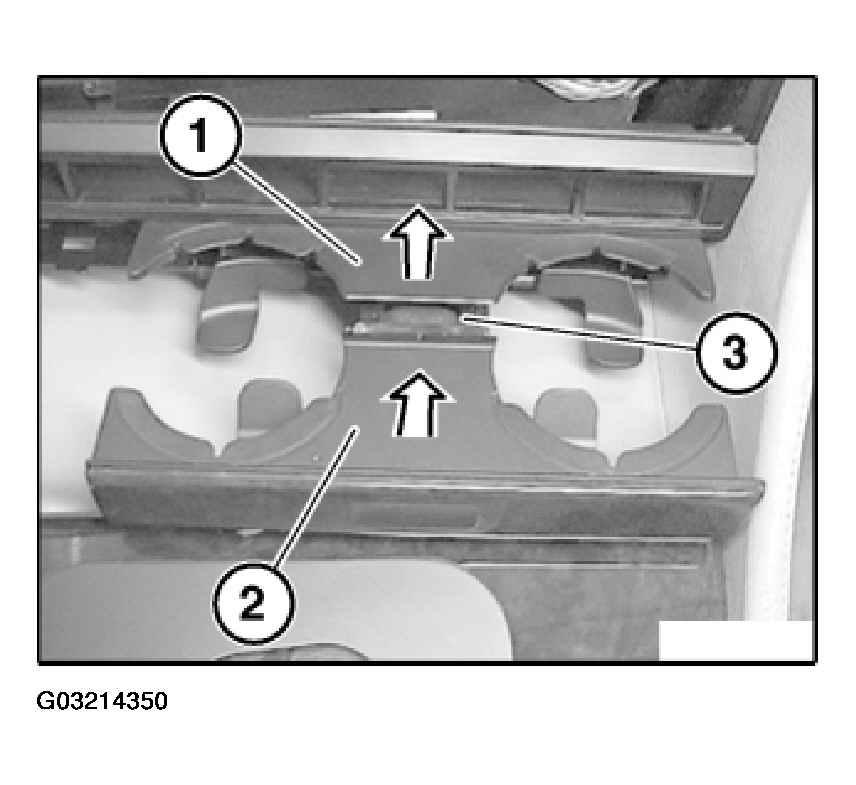

Take new trim assembly, insert guide in center rail, raise rear cover (1) slightly and snap front section (2) with center section (3) into place.

Center section (3) must be held in the process.

Fig 8: Installing Front Section With Center Section

NOTE: If necessary, use a hand mirror (1) for better visibility.

Insert rack (2) into bore in front section (3) and hook in towards left.

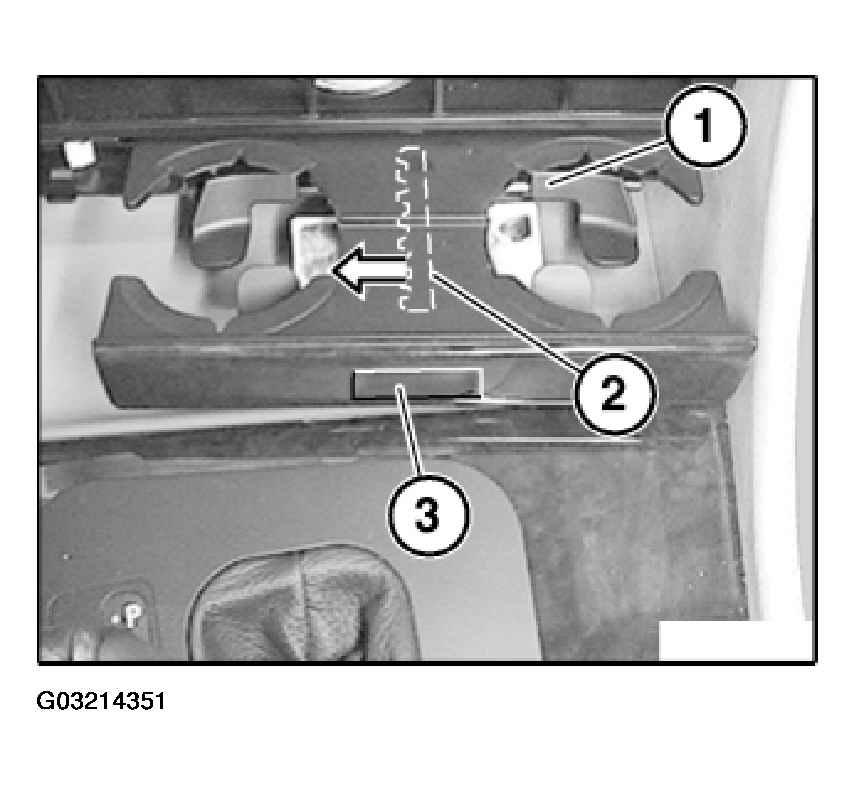

Fig 9: Inserting Rack Into Bore In Front Section & Hook In Towards Left

Carry out function check and note gap of cup holder.

Replacing wooden finisher for cup holder:

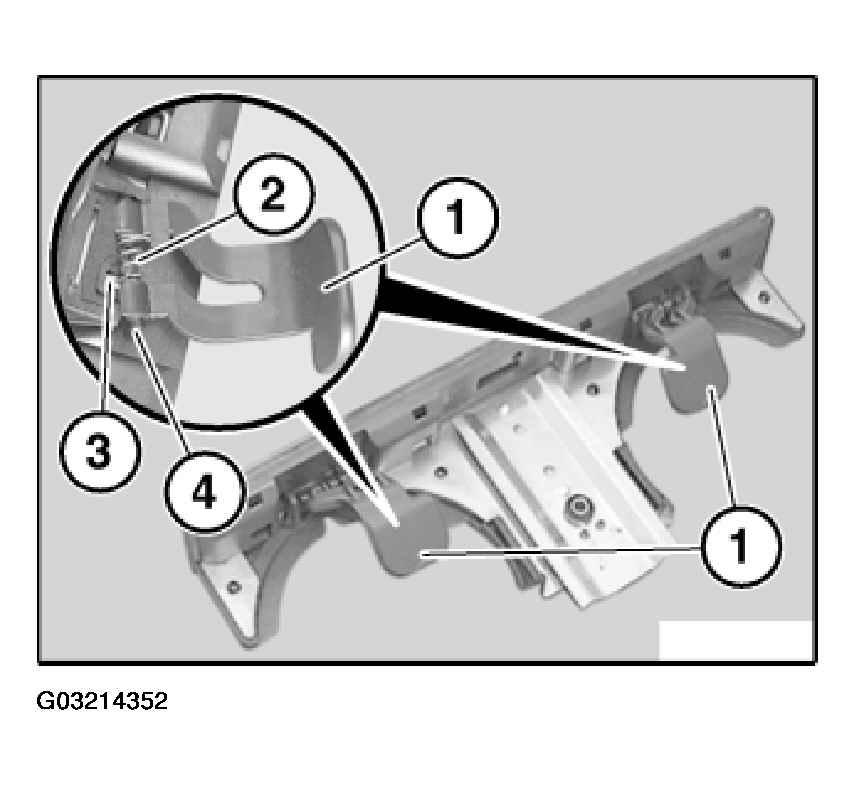

Remove cover for cup holder (with wooden finisher). Press together legs on both setting levers (1) and snap out.

CAUTION: Do not lose spring (2).

Installation:

Insert one leg of spring (2) in opening (3) in plastic cover (4).

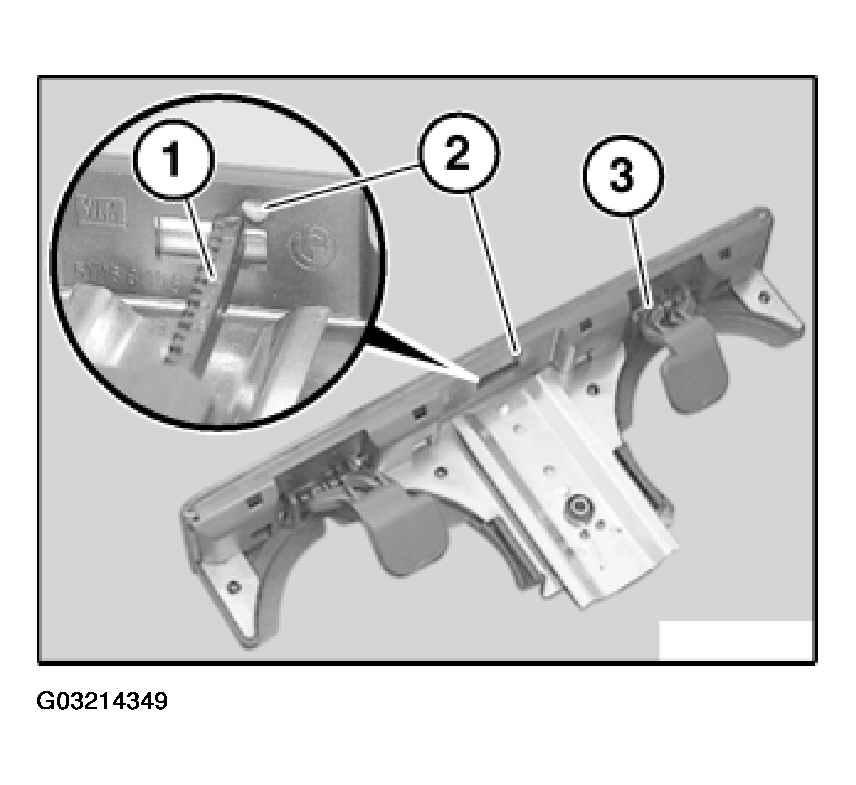

Fig 10: Identifying Spring & Setting Lever

Snap out hook (1) and detach plastic cover (2) from cup holder front section (3).

Installation:

Snap plastic cover (2) into correct position.

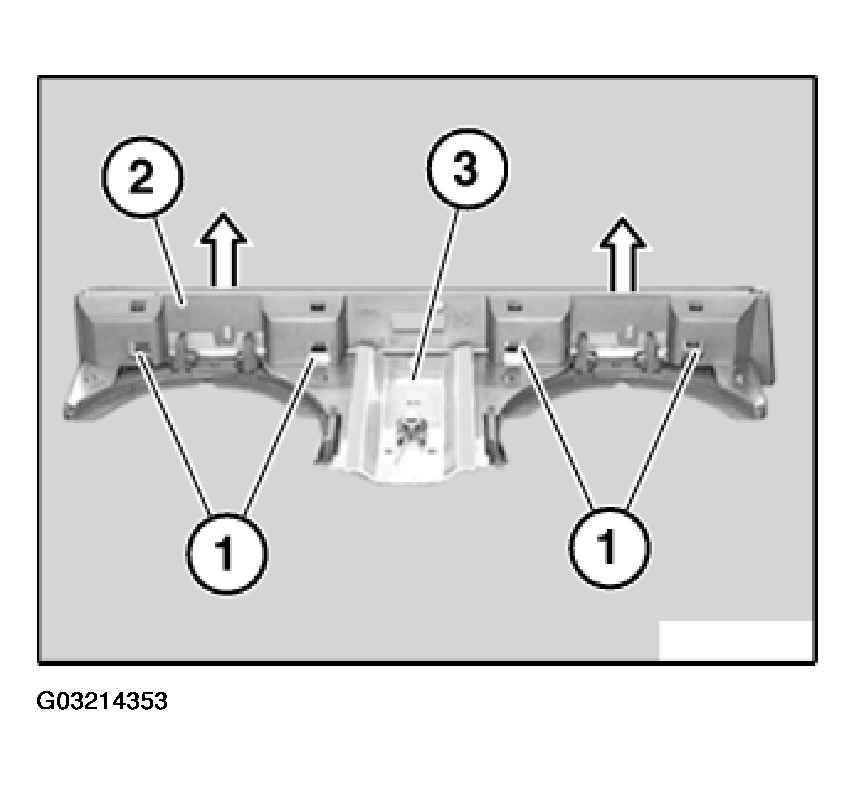

Fig 11: Identifying Hook, Plastic Cover & Cup Holder Front Section

Release nuts (1) with toothed washers and remove wooden finisher (2) from cup holder front section (3).

Installation:

Fit and screw down wooden finisher (note installation position).

Carry out function check of gap.

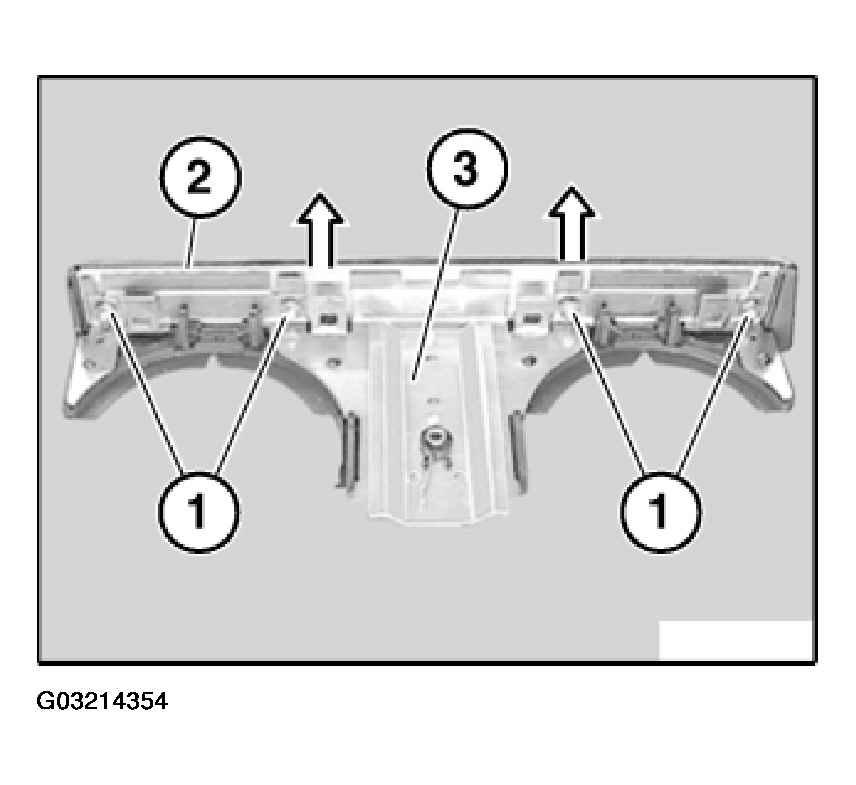

Fig 12: Identifying Wooden Finisher, Cup Holder Front Section & Nuts

Installation:

Threads (1) of wooden finisher (2) must not be damaged.

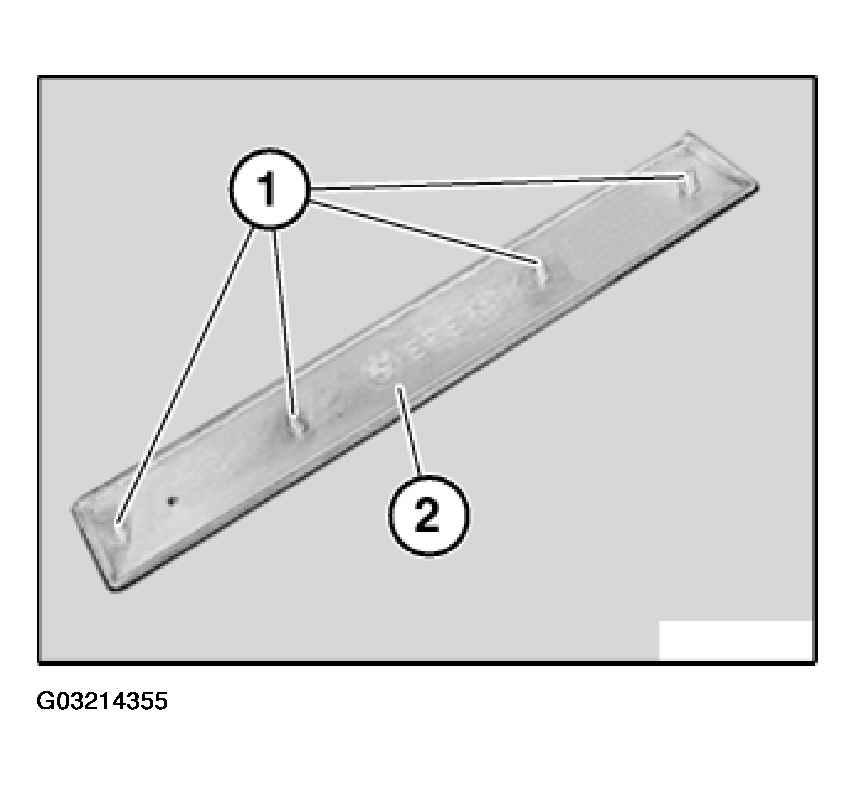

Fig 13: Identifying Threads Of Wooden Finisher
