51 16 360 Removing and installing right glove box

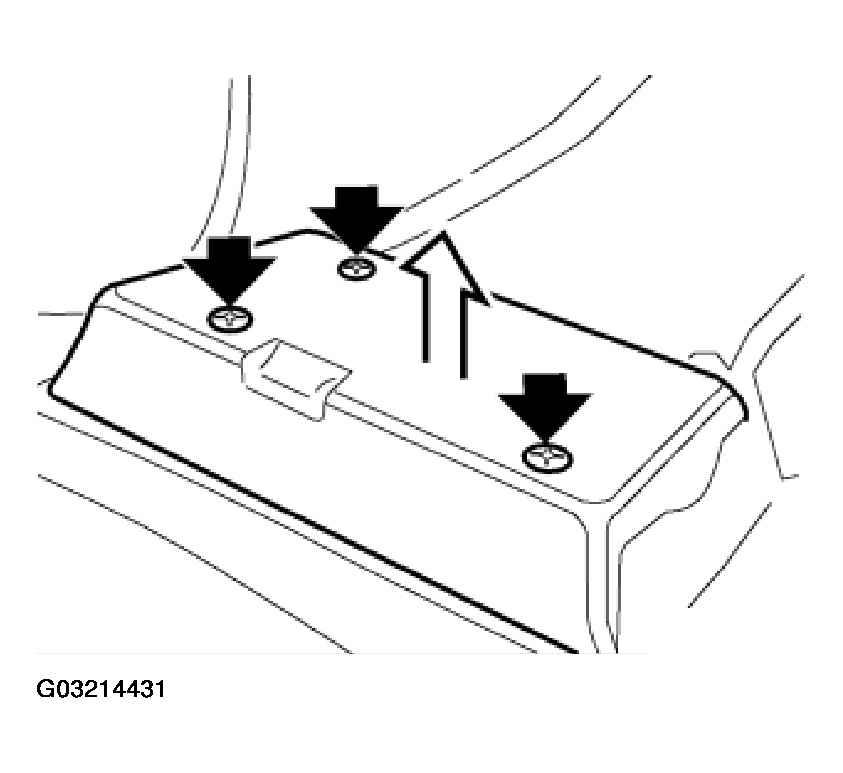

Open glove box. Unfasten screws and remove cover for glove box lock.

Fig 1: Opening Glove Box

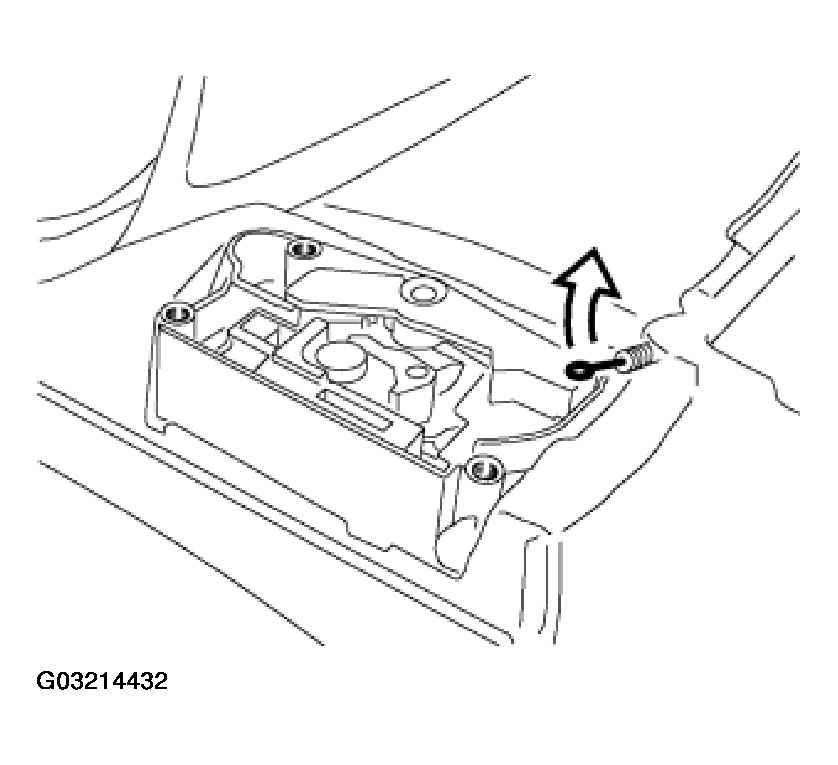

Remove Bowden cable and place to one side.

Fig 2: Removing Bowden Cable

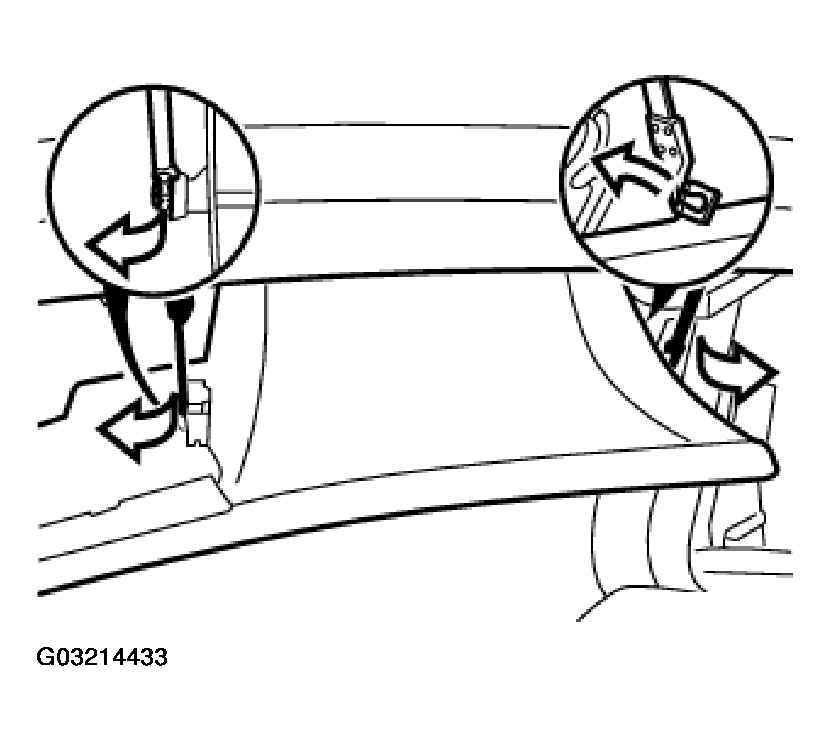

Unclip shock absorber and catch band.

Fig 3: Unclipping Shock Absorber

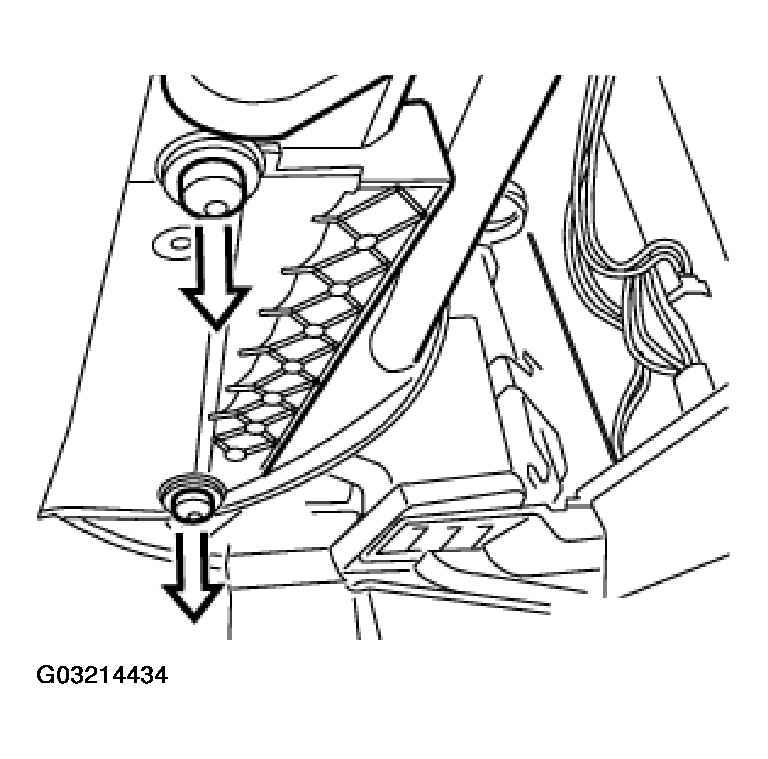

Fold glove box forwards and remove caps.

Fig 4: Folding Glove Box Forwards

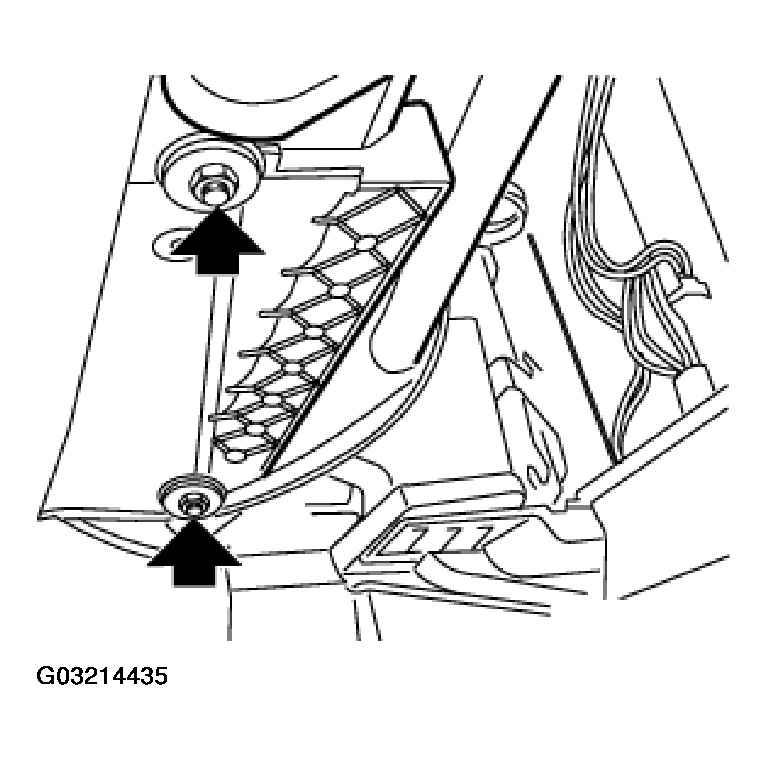

Loosen screws and pull glove box inwards to remove.

Fig 5: Removing Glove Box
