51 16 201 Replacing oddments tray

1. Remove center console, refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE

Unfasten screws and remove carpet (1) (with bracket) and bracket (2) (center console). Twist connector bracket (3) and remove.

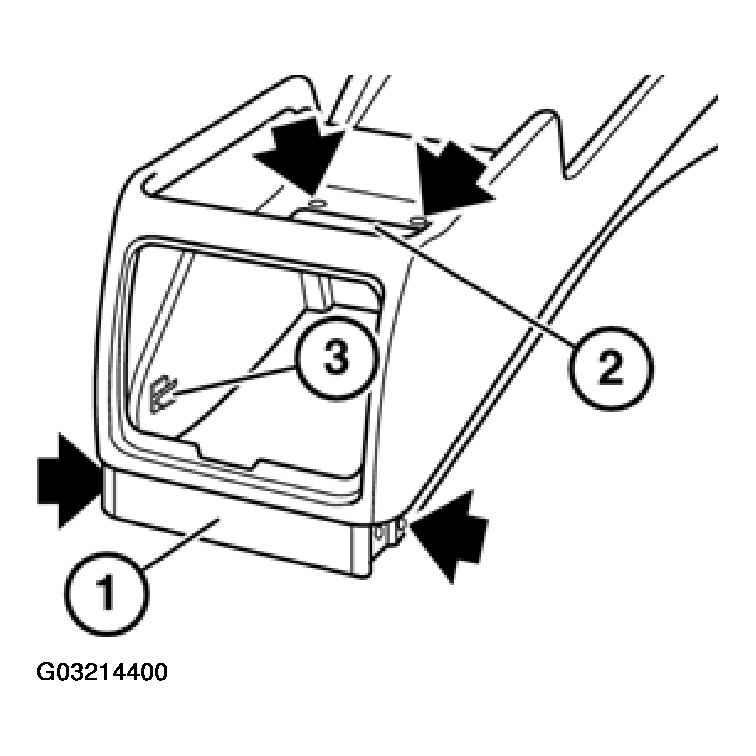

Fig 1: Removing Carpet (With Bracket) & Bracket (Center Console) & Connector Bracket

Unclip wooden finisher from carrier plate.

Version with drinks holder:

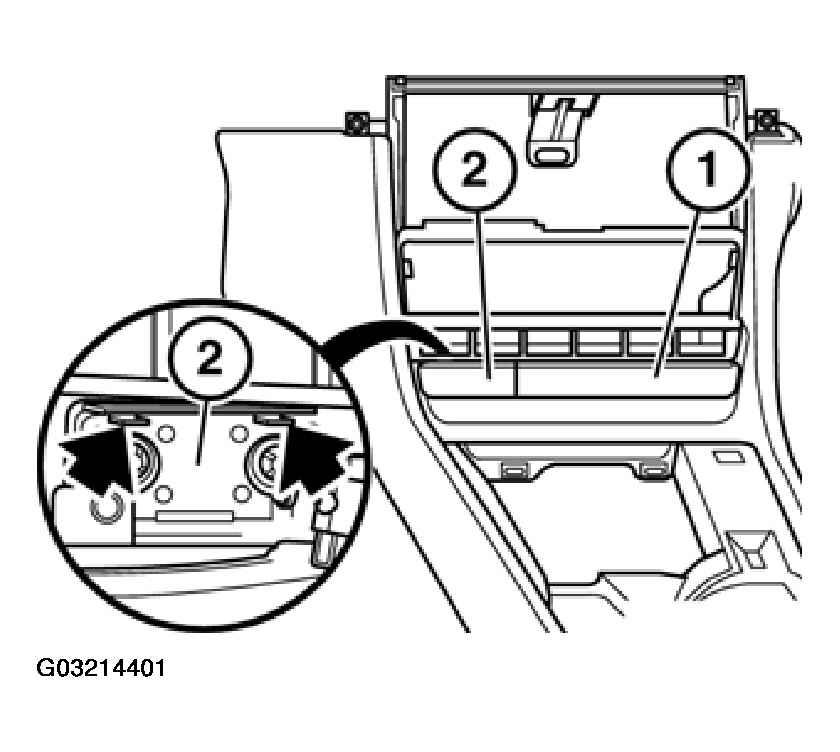

Open drinks holder (1) and unclip wooden finisher (2).

Fig 2: Unclipping Wooden Finisher From Carrier Plate

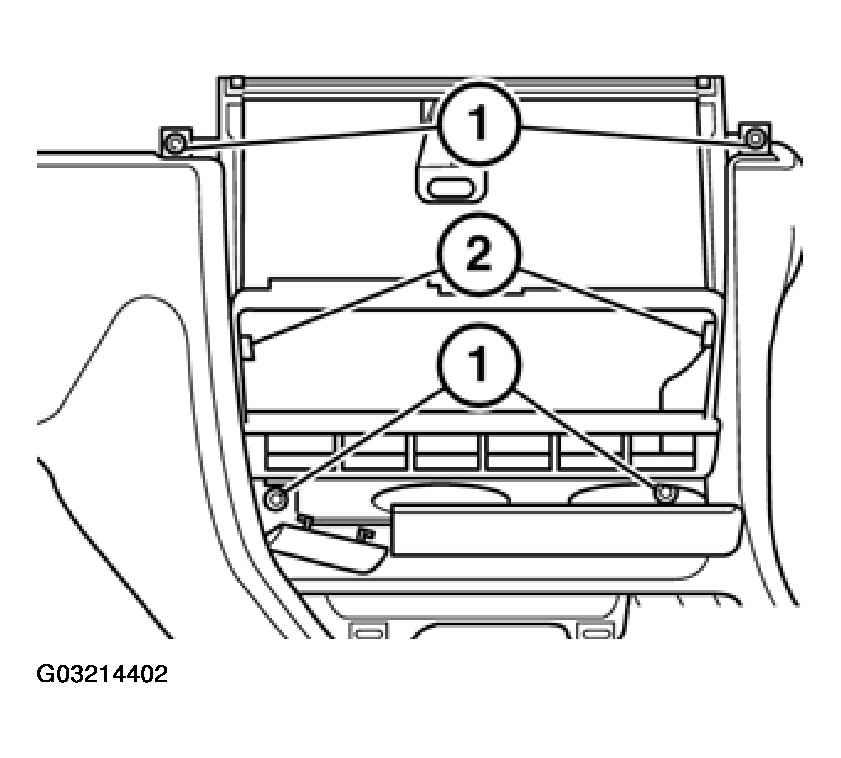

Loosen screws (1). Unfasten clips (2) and remove carrier plate. Remove all self-tapping screws.

Fig 3: Removing Carrier Plate
