51 33 000 Removing and installing power window in front door, left or right (Protection)

Remove front door window glass,

refer to 51 32 170 REMOVING AND INSTALLING / REPLACING FRONT LEFT OR RIGHT DOOR WINDOW .

Release cable tie (1) and disconnect plug connection (2) from power window mechanism.

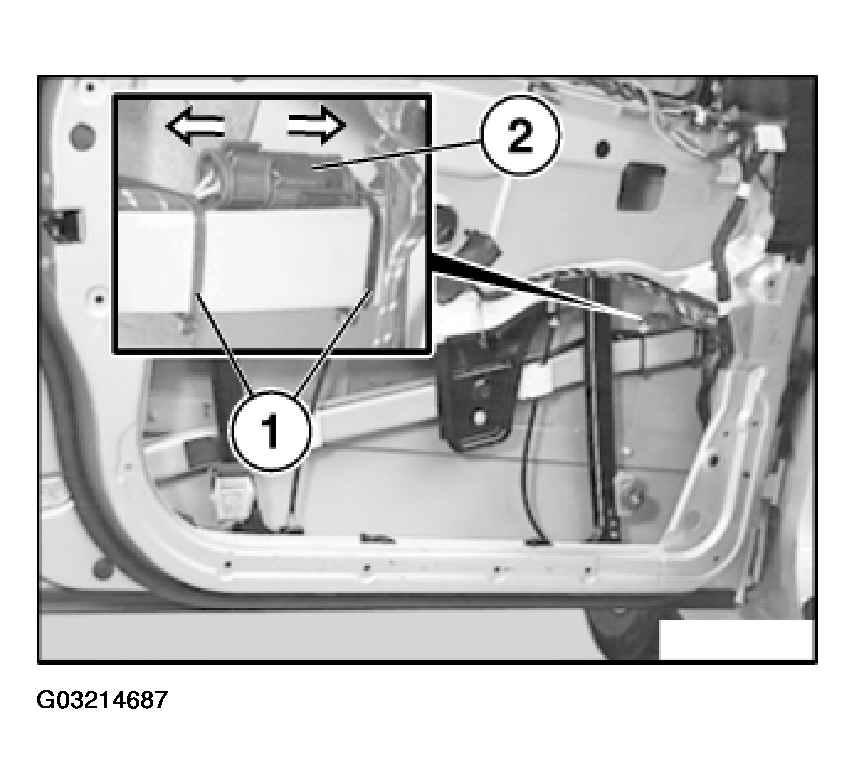

Fig 1: Releasing Cable Tie & Disconnecting Plug Connection From Power Window Mechanism
G03214687

Pull off guide (1).

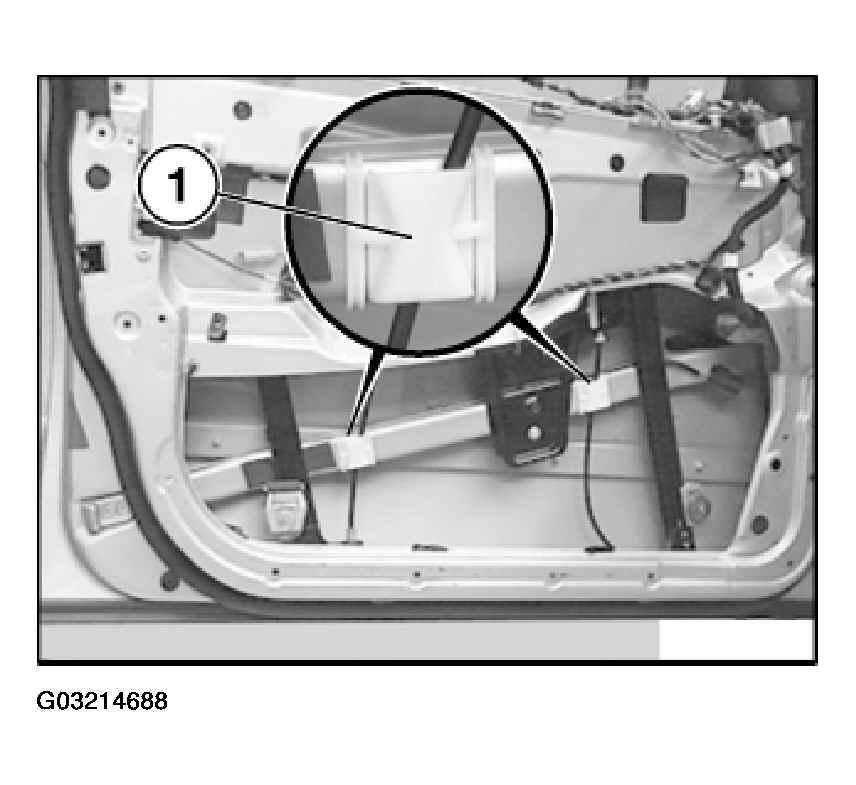

Fig 2: Pulling Off Guide
G03214688

Unscrew bolts (1).

Slacken screws (2) and remove complete power window towards bottom.

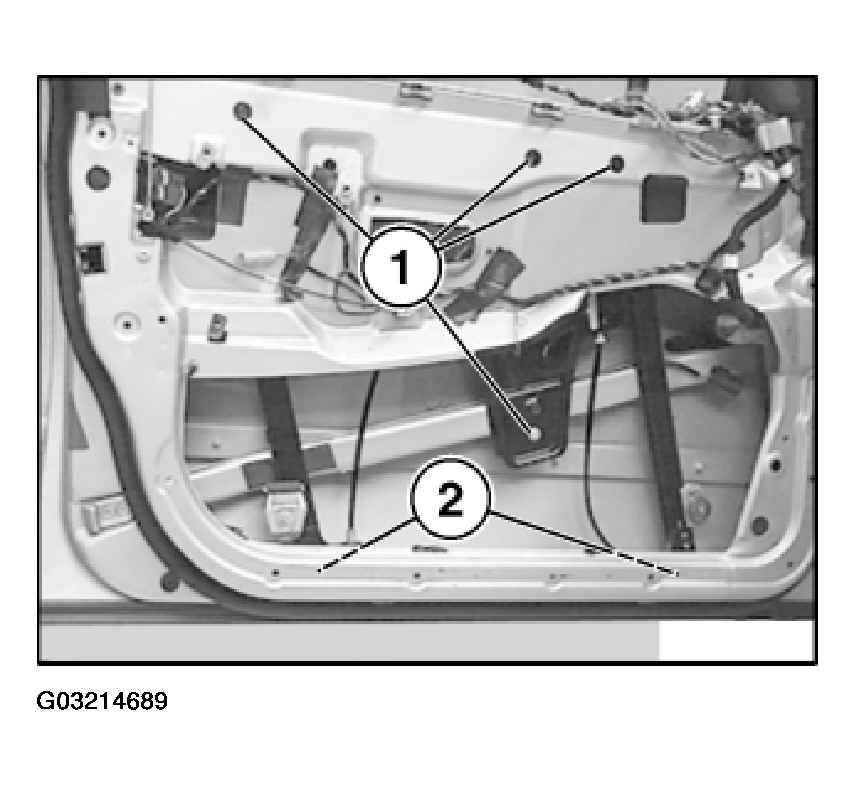

Fig 3: Removing Complete Power Window Towards Bottom
G03214689

Installation:

  1. Place power window in locating bracket (1) and insert loosely all screws.
  2. Note installation position of nut (2).

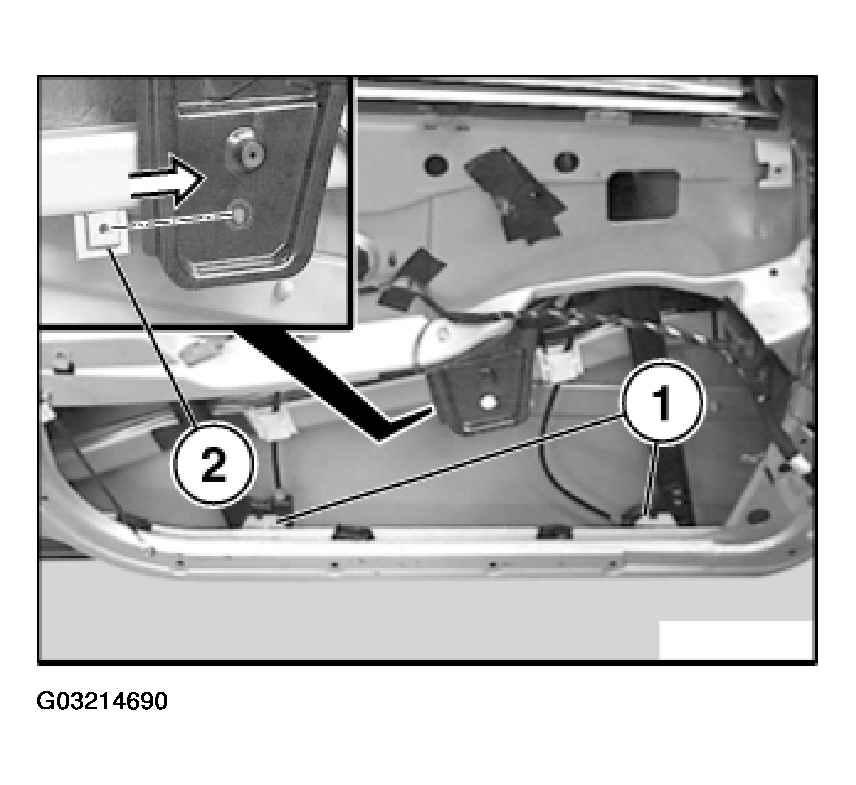

    Fig 4: Installing Power Window
    G03214690

Installation:

  1. Tighten screws (1) and (2).
Fig 5: Identifying Screws For Tightening
G03214691

Installation:

  1. Install door window glass and locate with clamping jaw (1) and clamping screw (2).
  2. Adjust door window glass,
  3. refer to 51 32 154 ADJUSTING DOOR WINDOW GLASS, FRONT LEFT OR RIGHT (PROTECTION) .

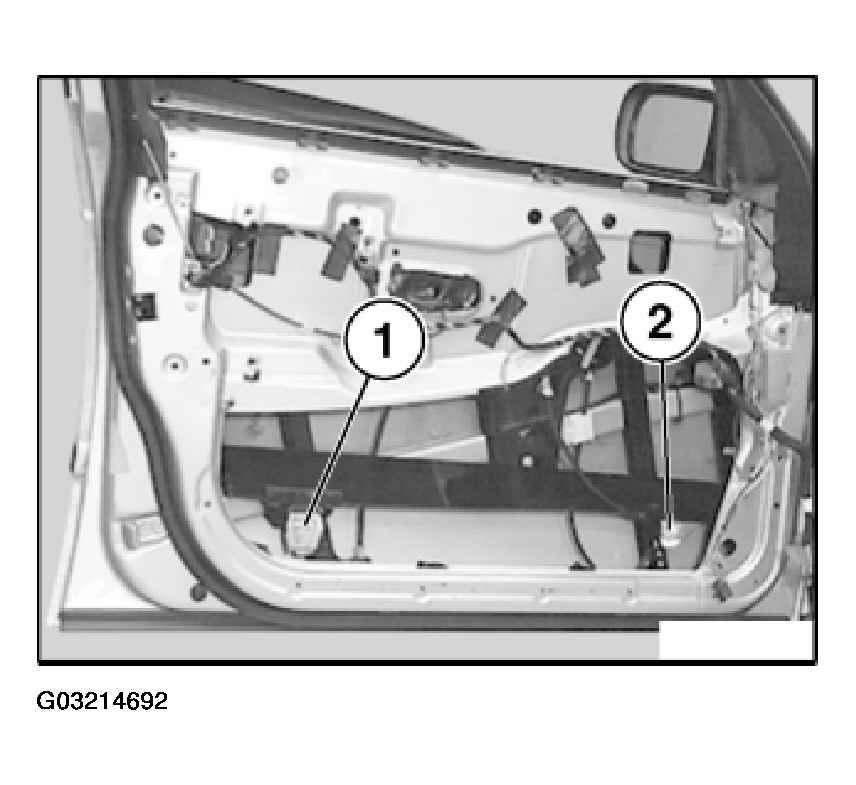

    Fig 6: Identifying Clamping Jaw & Screws
    G03214692

Installation:

  1. Lower door window down to stop.

Tighten screws (1).

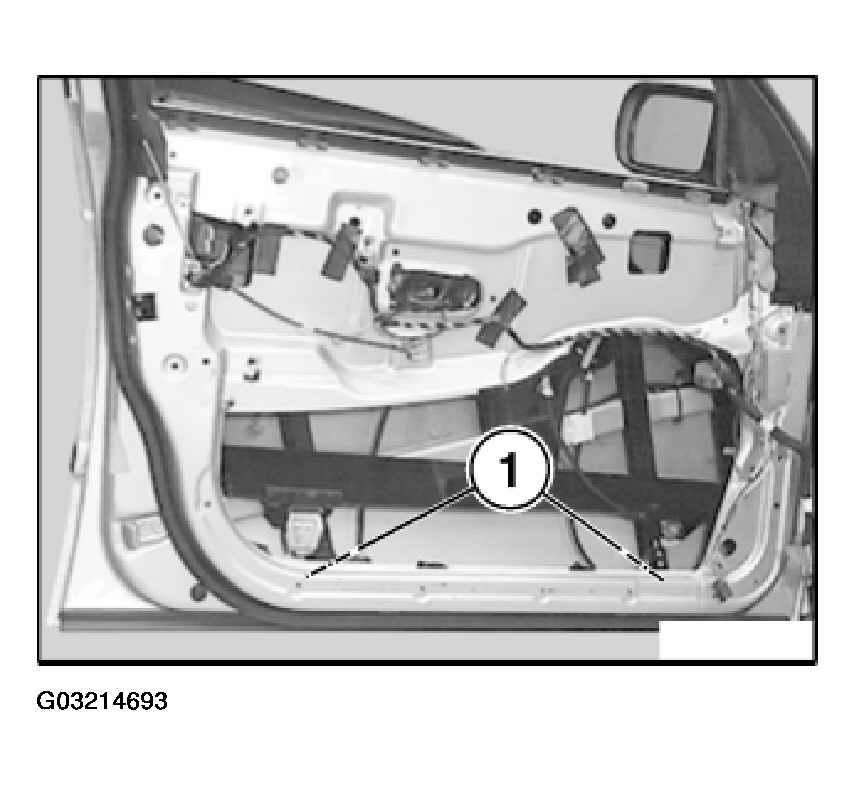

Fig 7: Identifying Screws For Tightening (1 Of 2)
G03214693

Installation:

  1. Close door window firmly.

Tighten screws (1).

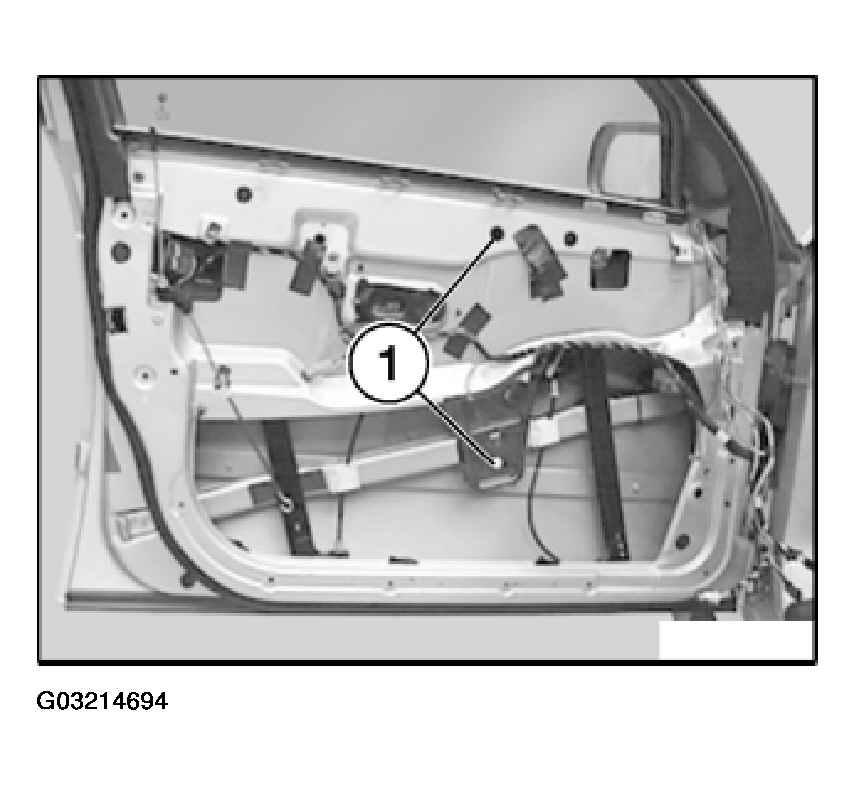

Fig 8: Identifying Screws For Tightening (2 Of 2)
G03214694
