51 41... Replacing protective mat for left or right front door (Protection)

Remove sound insulation/protective mat on front door,

refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT

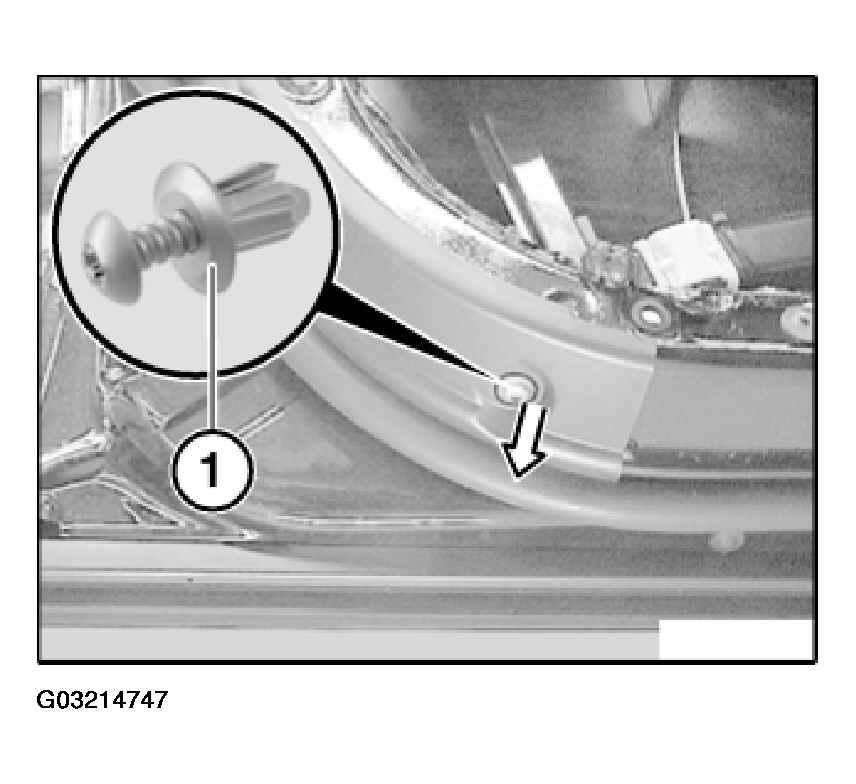

Release expansion rivet (1) at bottom.

Fig 1: Releasing Expansion Rivet At Bottom

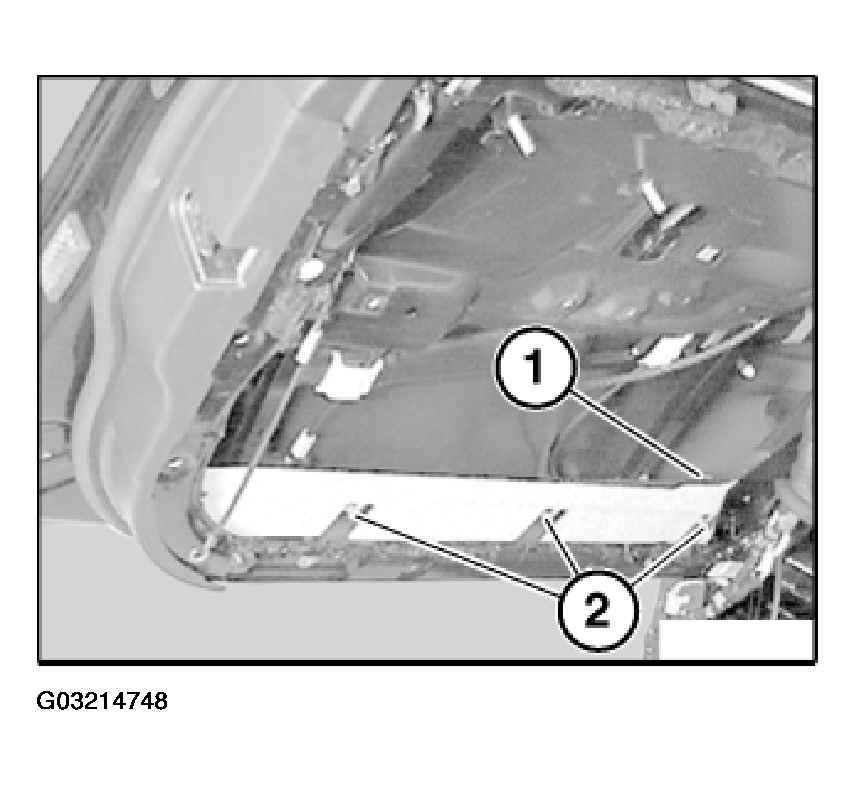

Unfasten cable connector (1).

Unfasten screws (2).

Fig 2: Unfastening Cable Connector & Screws

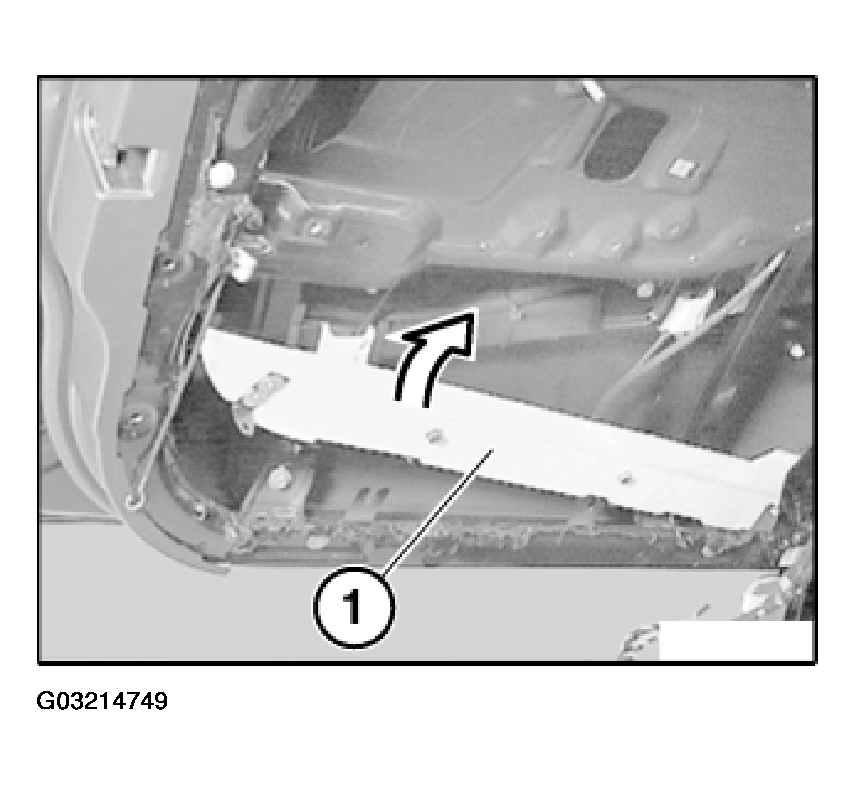

Lift protective mat (1) out of interior of door towards top.

Fig 3: Lifting Protective Mat Out Of Interior Of Door Towards Top
