51 41 001 Replacing front left or right door trim

Removing and installing door trim panel,

Pull wooden strip backwards to remove.

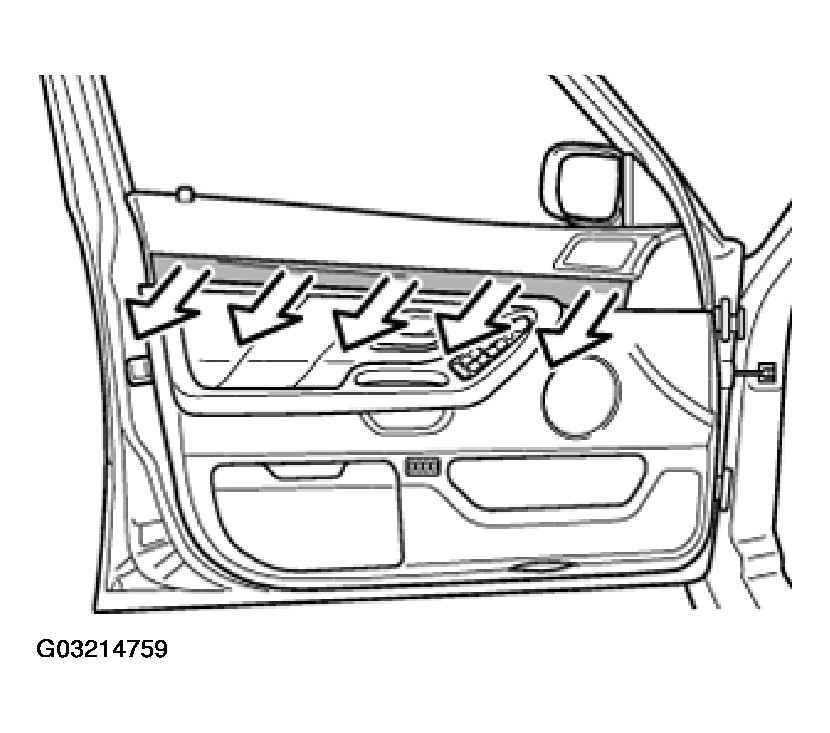

Fig 1: Removing Wooden Strip

Installation:

If necessary, replace damaged clips and/or grommets for wooden strip.

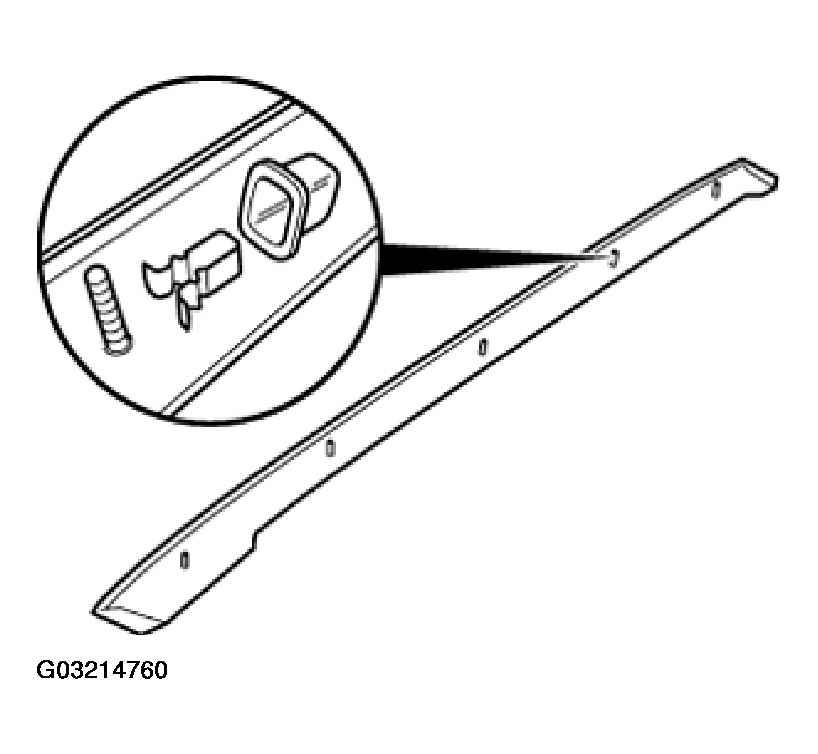

Fig 2: Identifying Wooden Strip Clips

Lift out locking unit and pull grommet (1) for locking button upwards.

Unfasten nut (2) and remove retaining bracket (3).

Installation:

Fit window and spring circlip.

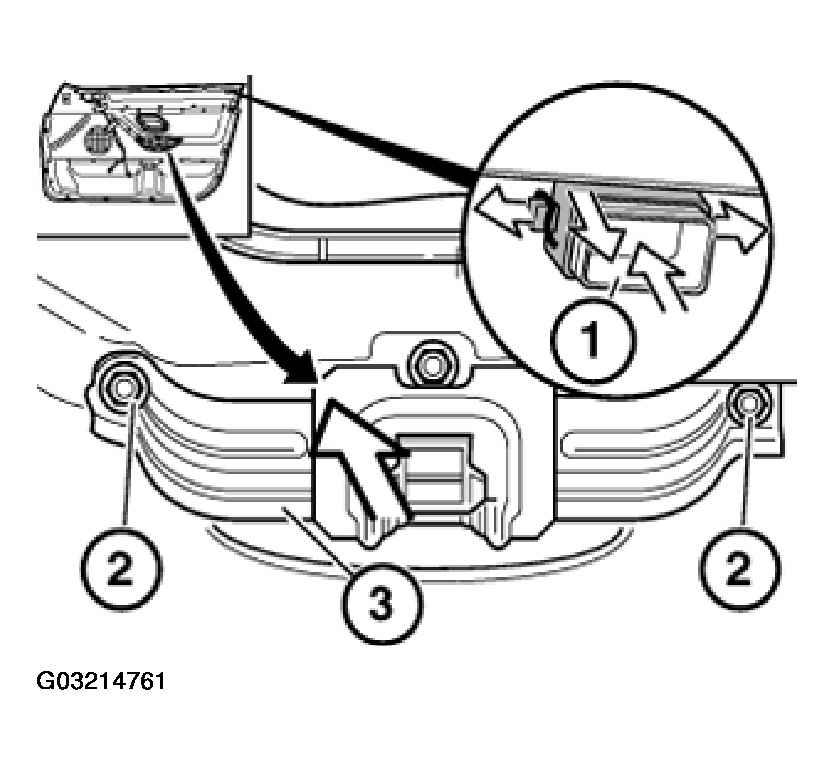

Fig 3: Identifying Grommet, Nut & Retaining Bracket

Only version without side airbag:

Unfasten speed nuts (1) and remove top insert with frame.

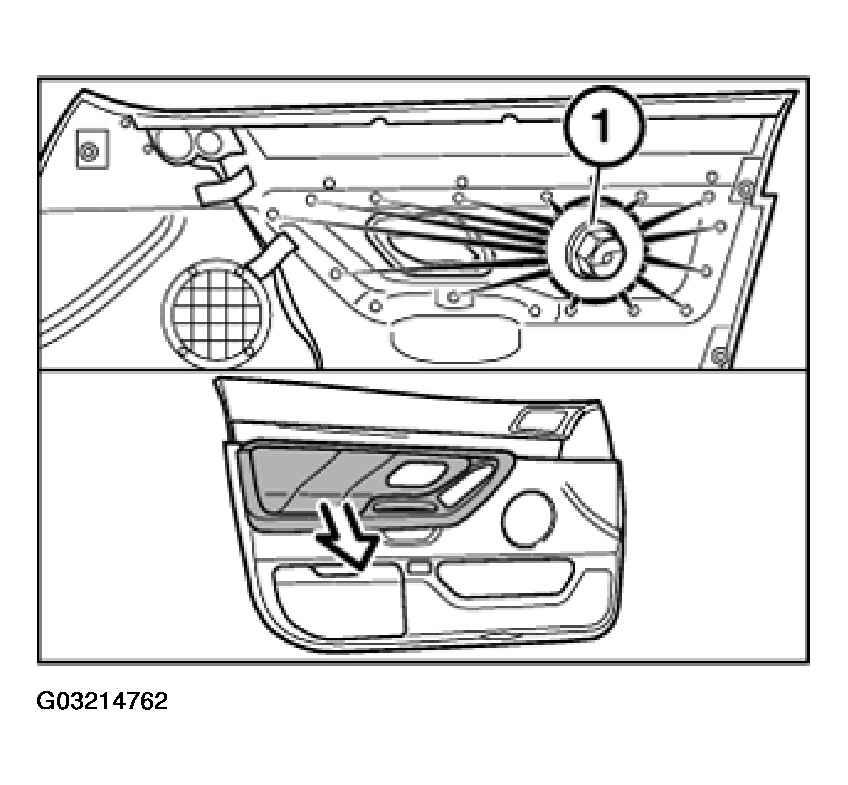

Fig 4: Removing Top Insert With Frame

Only version without side airbag:

Unfasten screws and remove finisher (1) and bracket (2) from insert (3).

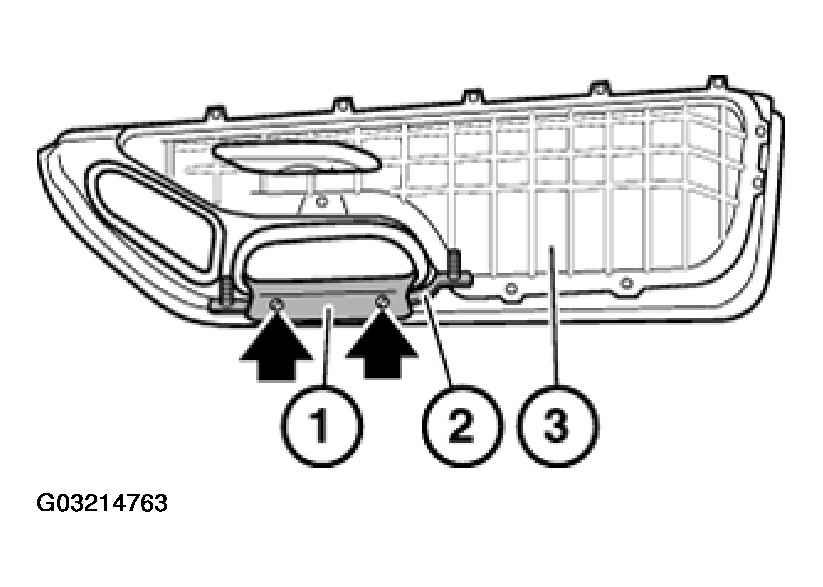

Fig 5: Removing Finisher & Bracket From Insert

Only version without side airbag:

Remove insert (1) from frame (2).

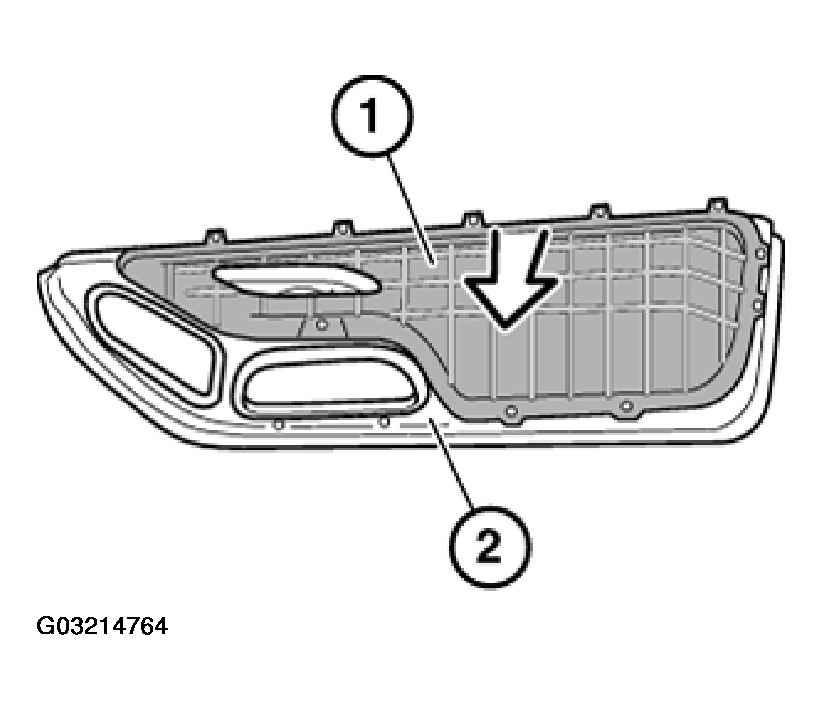

Fig 6: Removing Insert From Frame

Unfasten speed nuts (1) and remove inserts from door trim.

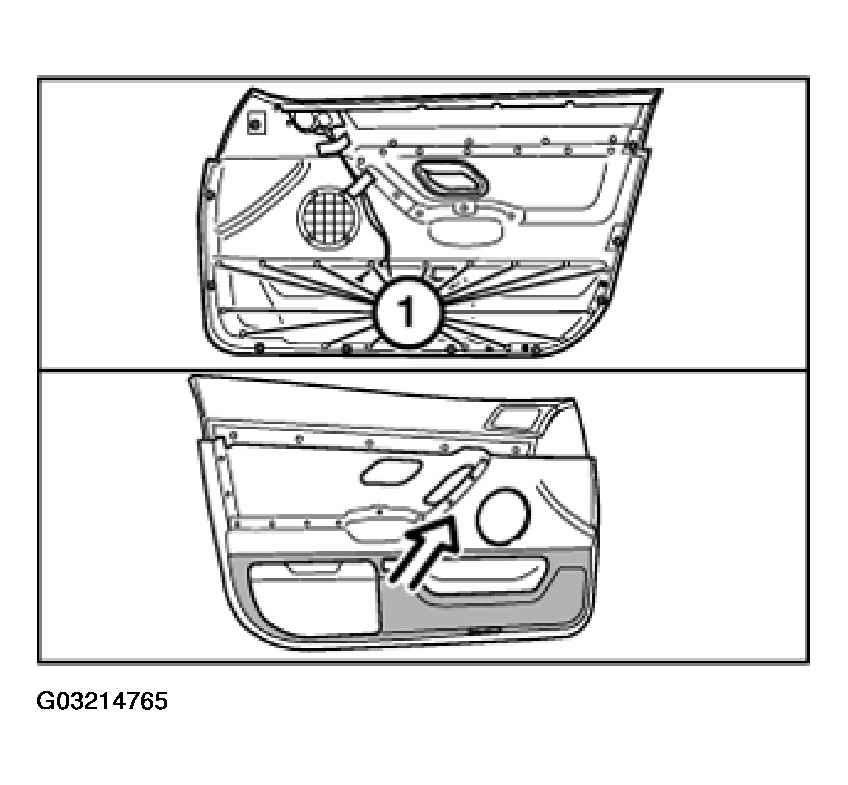

Fig 7: Removing Inserts From Door Trim

Unfasten screws and remove toothed discs (1).

Remove folding box and loudspeaker finisher (2) from door trim.

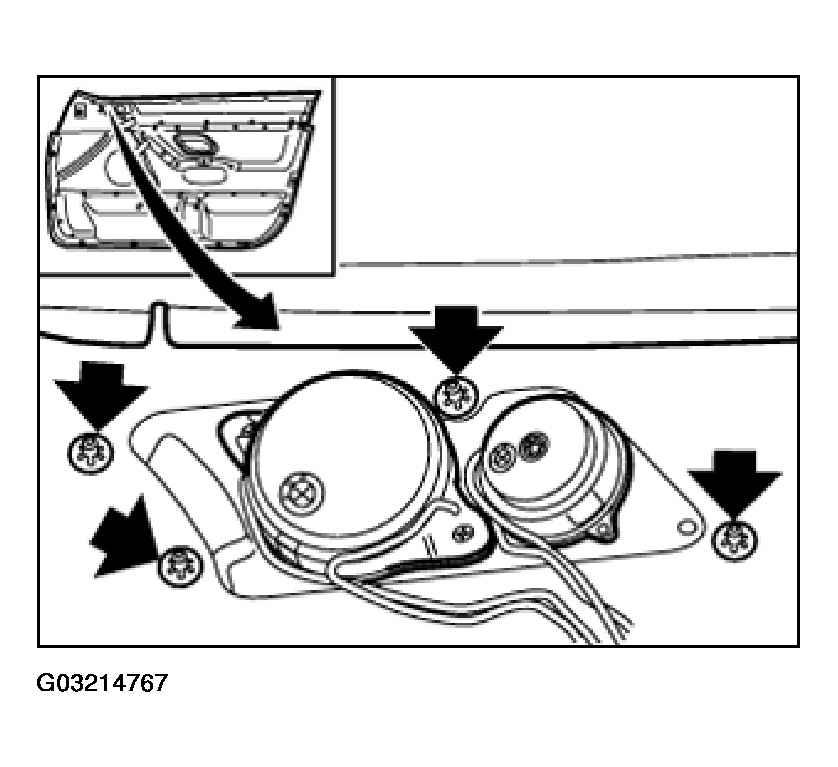

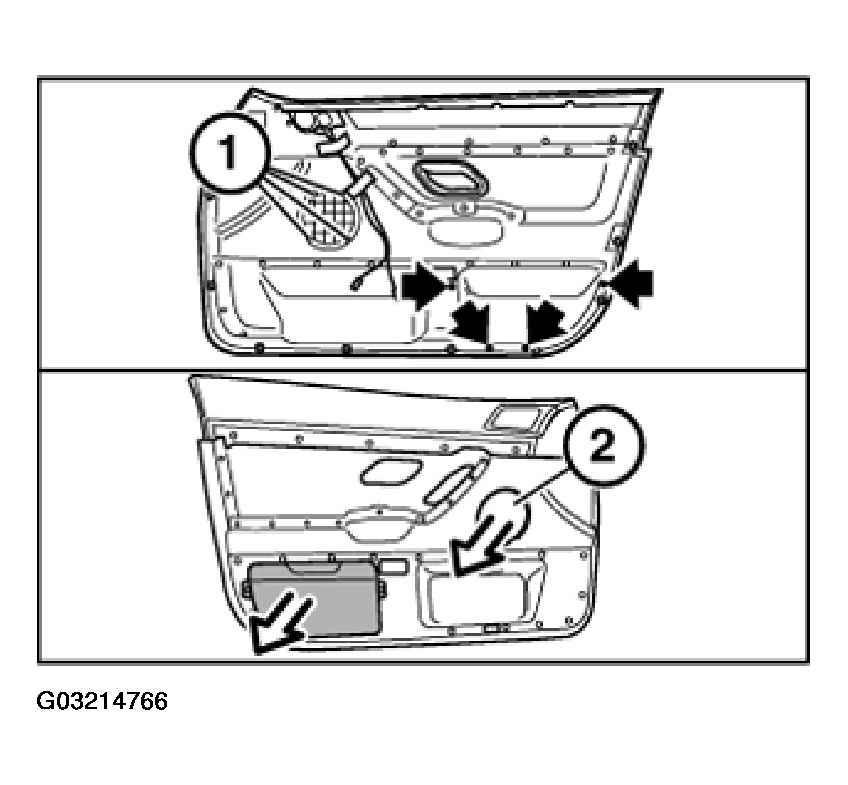

Fig 8: Removing Toothed Discs & Loudspeaker Finisher From Door Trim

Remove toothed discs and pull loudspeaker and finisher forwards.

Installation:
