63 99 485 Replacing bulb for outside door handle light, front left or right
Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .
CAUTION:
Do not kink fiber optics cable. The bending radius of the fiber optics cable must not be less than 20 mm.

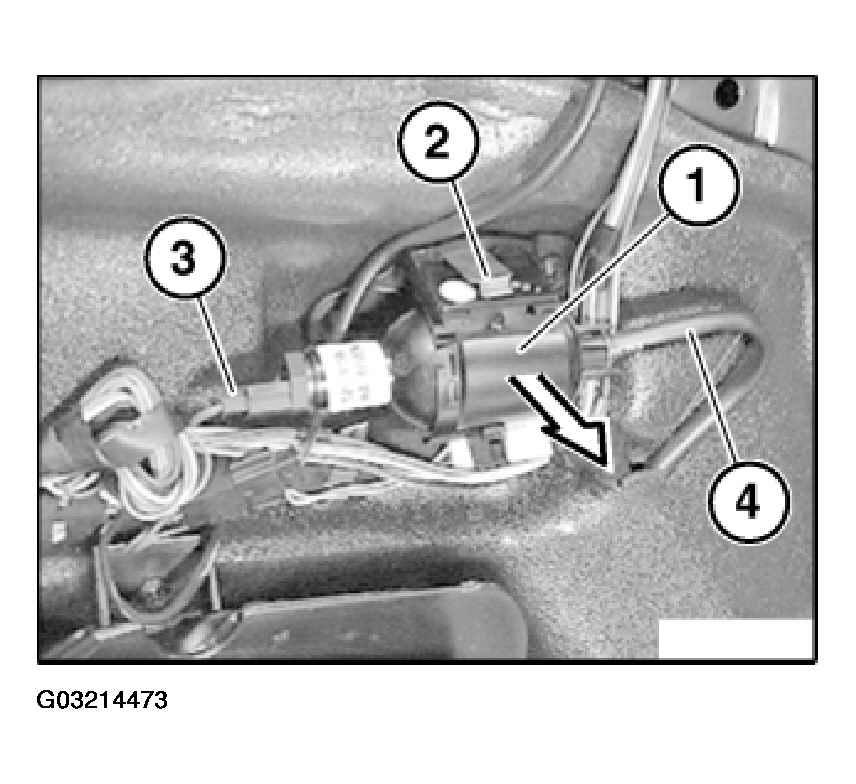

Detach central light source (1) from retainer (2).
Disconnect plug connection (3) and detach fiber optics cable (4) from central light source.

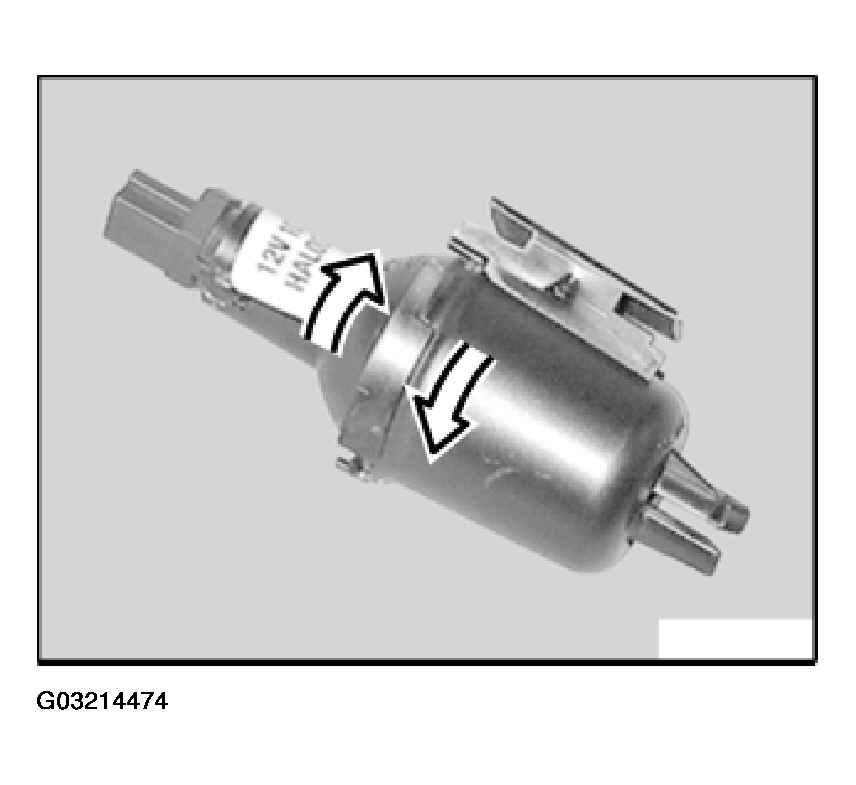

Open bayonet lock on central light source.

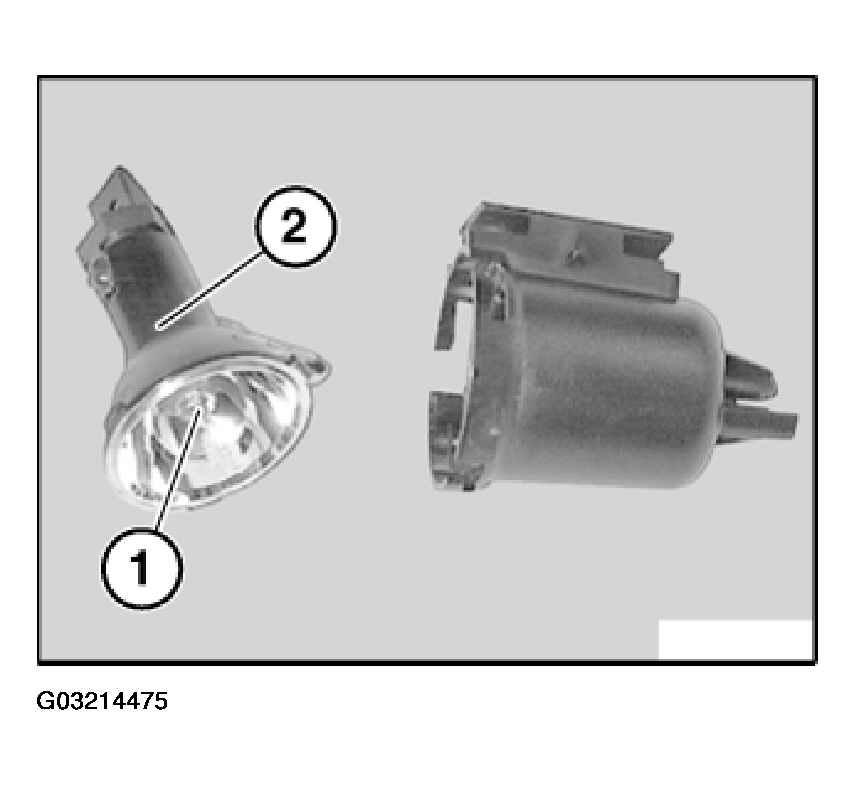

Remove bulb (1) (sourcing reference: BMW Parts Service) from reflector unit (2) and replace.
