51 21 130 Removing and installing or replacing lock on left or right front door

1. (if necessary with lock cylinder) Remove door lock, refer to 51 21 090 REMOVING AND INSTALLING / REPLACING DOOR LOCK ON LEFT OR RIGHT FRONT DOOR

Unfasten screws and remove bracket (1) (outside door handle).

Installation:

Install screws with flat surfaces pointing towards one another.

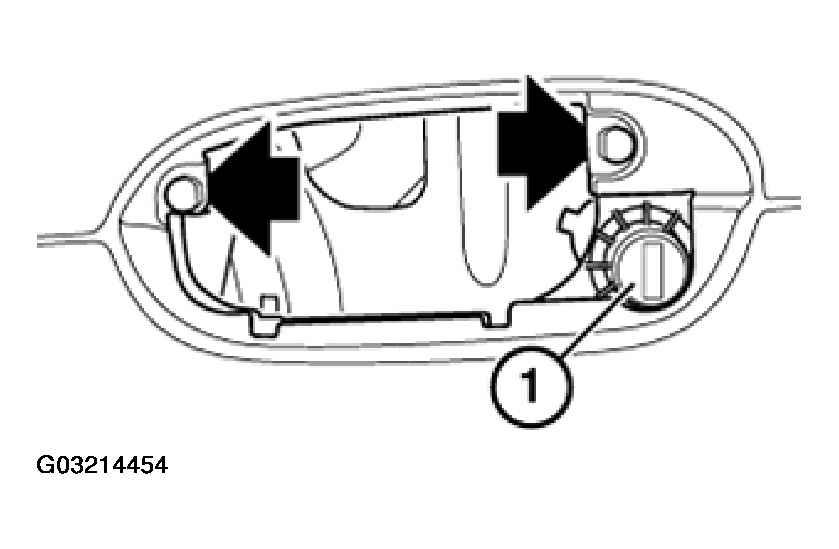

Fig 1: Removing Bracket (Outside Door Handle)

Only replace:

Lift out locking unit (1) and remove finisher (2).

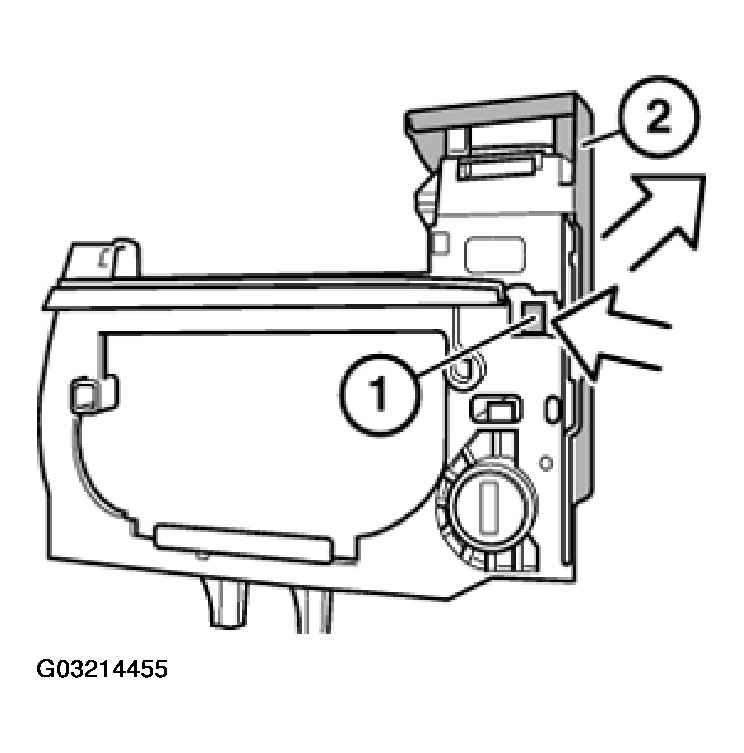

Fig 2: Removing Locking Unit & Finisher

Only replace:

Disconnect Bowden cable (1) from bracket.

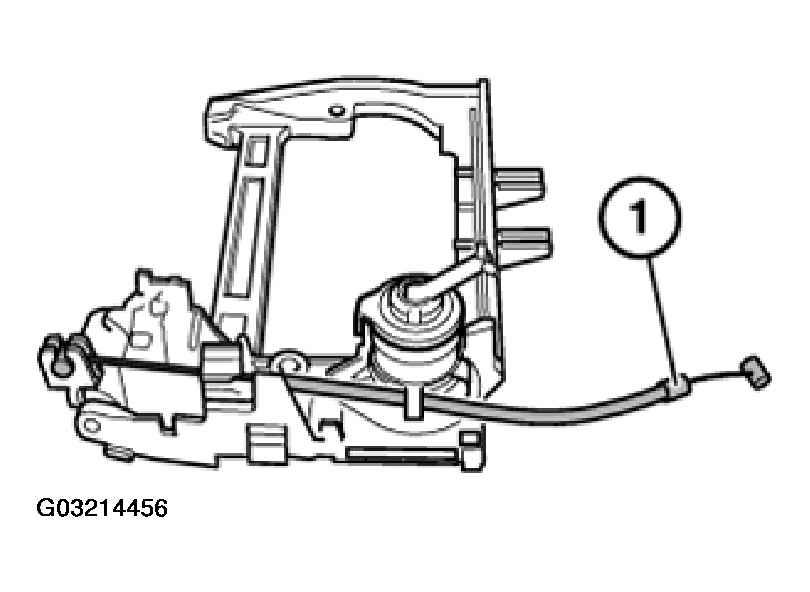

Fig 3: Disconnecting Bowden Cable From Bracket
