51 11 701 Replacing left or right bracket for front bumper

(bumper removed)

Installation: If necessary, mark position of bracket on body.

Cut through cable connector (1).

Unfasten screws on wheel arch and remove bracket.

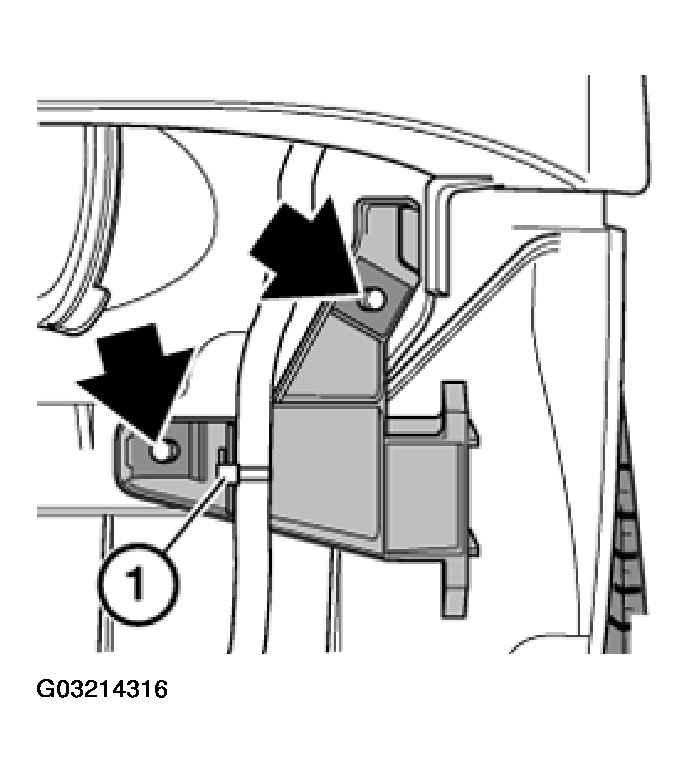

Fig 1: Identifying Position Of Bracket On Body

Installation:

When exchanging bracket, adjust dimensions (A) and (B).

Dimension (B) is measured vertically downwards at distance (C) from side panel.

Fig 2: Adjusting Bracket Dimension
