51 14 110 Removing and installing / replacing rear model emblem

The model sign is cemented and cannot be reused after removal.

The model sign must be installed at room temperature.

Coat nylon string or thread with tenside (e.g. dish detergent), cut through adhesive layer and remove with washing benzene.

At paint baking temperatures exceeding 80° C, the model designation must be removed.

sedan:

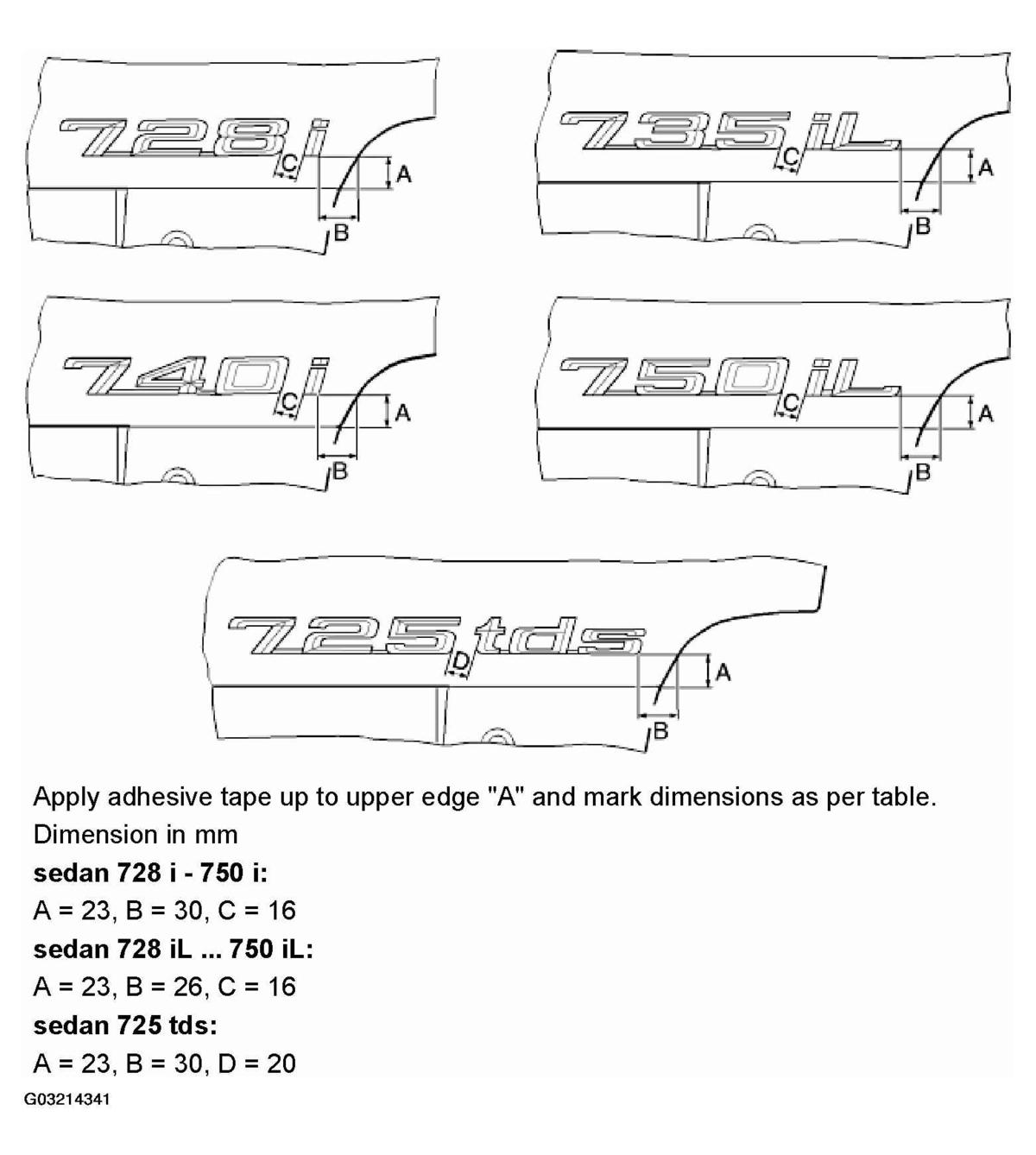

Fig 1: Identifying Dimensions For Applying Tape To Rear Model Emblem (Sedan)
