35 41 000 Removing and installing or replacing foot pedal: Notes
WARNING:
Always replace dismantled foot pedal with new part. Retaining clips on old part may be damaged. Foot pedal can then slide out of steel plate. This means there is a risk of accident!
Press down carpet.

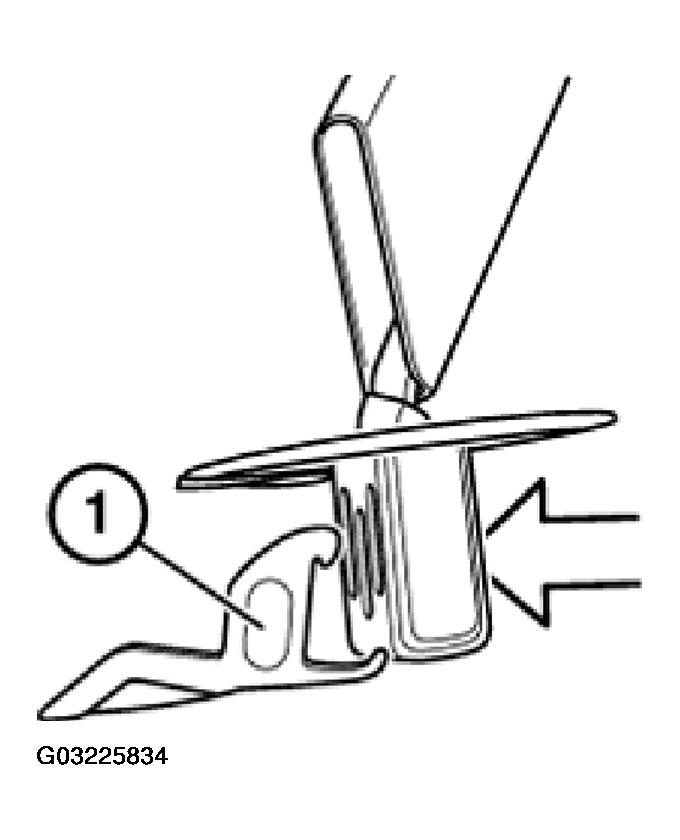

Press locking tab (1) forwards.
